Pratissoli MW50 - Mechanical Parts Disassembly

MW
4
2.1.1 Disassembly of mechanical parts
The proper sequence is as follows:

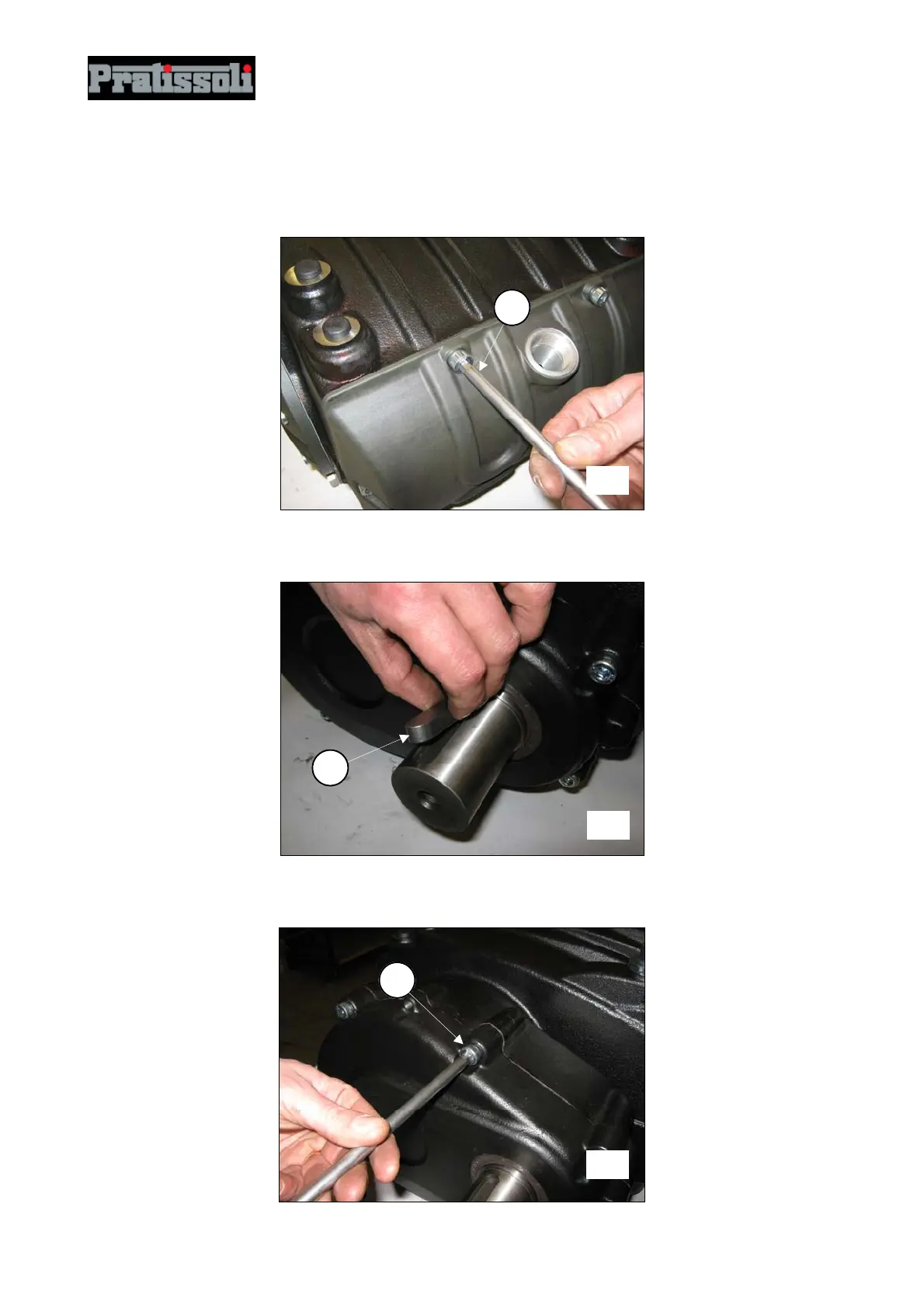

Fully empty the oil from the pump, then disassemble the casing cover (and relative O-ring), unscrewing the 6
M10 screws (pos.c, fig.2).
Remove the tab from the PTO shaft (pos.c, fig.3).
Unscrew the reduction gear cover fixing screws (pos.c, fig.4).
1
fig. 3
1
fig. 2
fig. 4
1
