Always turn off the source circuit breaker and check to ensure the power is off to the controller through the
use of a tester prior to working on the wiring terminals.
Never touch the terminals in the rear panel when power is supplied to the controller.
Be sure to turn off the electric power before wiring any terminals.
Bind the wires connected to the controller terminals neatly together in order to
prevent electromagnetic interference.
7.3 Power Cable Specification
Make power connections using 0.9 to 2.0 mm
2
or 16 AWG vinyl insulated wire. (Voltage rating of 300 VAC)

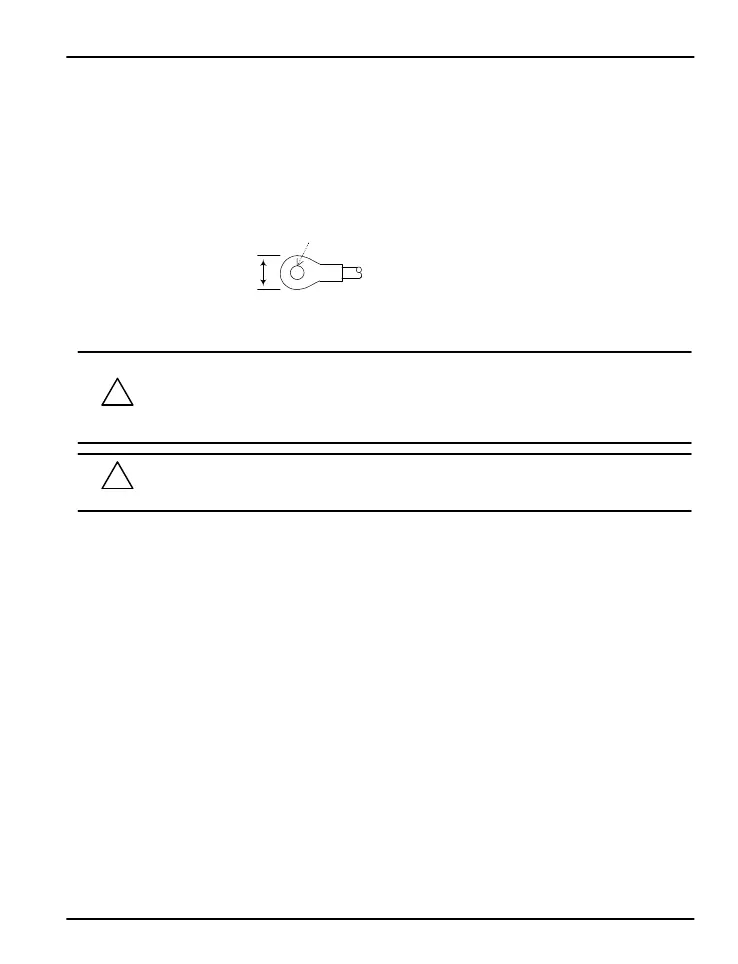

Use M3.5 screw-compatible crimp on terminals with insulating sleeve as shown below.
7.4 Terminal Specification
!
CAUTION
Use copper conductors only if the terminal is for connection to copper wire only.
!
CAUTION
3.0 mm
(0.118 in)
5.8 mm
(0.228 in)
Maximum
Measurement
Minimum Diameter
Note: Inches for reference only.
PD570 Series Nova Process and Temperature Limit Controller Instruction Manual
33
