21
PM-1030V v5 2020-10 Copyright © 2020 Quality Machine Tools, LLC

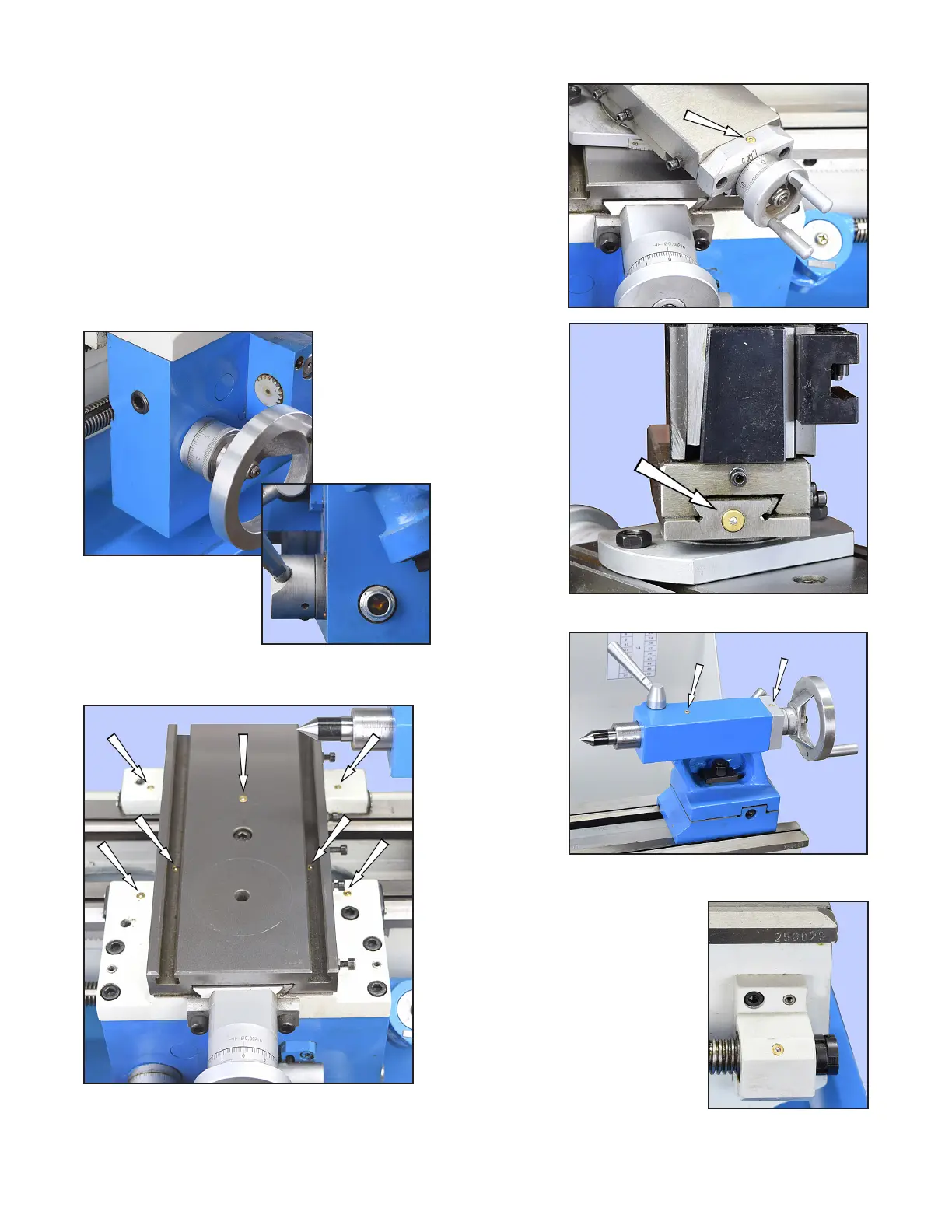

LUBRICATION — APRON DRAIN & REFILL
1. Remove the apron ll plug, Figure 4-3.
2. Locate the drain plug on the underside of the apron casting.
3. Place a drain pan below the drain plug, then remove the
plug.
4. Allow the oil to drain completely, then replace the drain
plug.
5. Using a funnel and tubing assembly as described above for
the gearbox, add an ounce or two of oil.
6. When satised that the gearbox is oil-tight, add oil to the
halfway mark on the sight glass (about 1 pint).
7. Replace the ll plug.
Figure 4-3 Apron ll plug
& sight glass
LUBRICATION — OILERS
Figure 4-4 Saddle & cross-slide oilers
Figure 4-5 Compound oilers
Figure 4-6 Tailstock oilers
Figure 4-7 Leadscrew oiler
