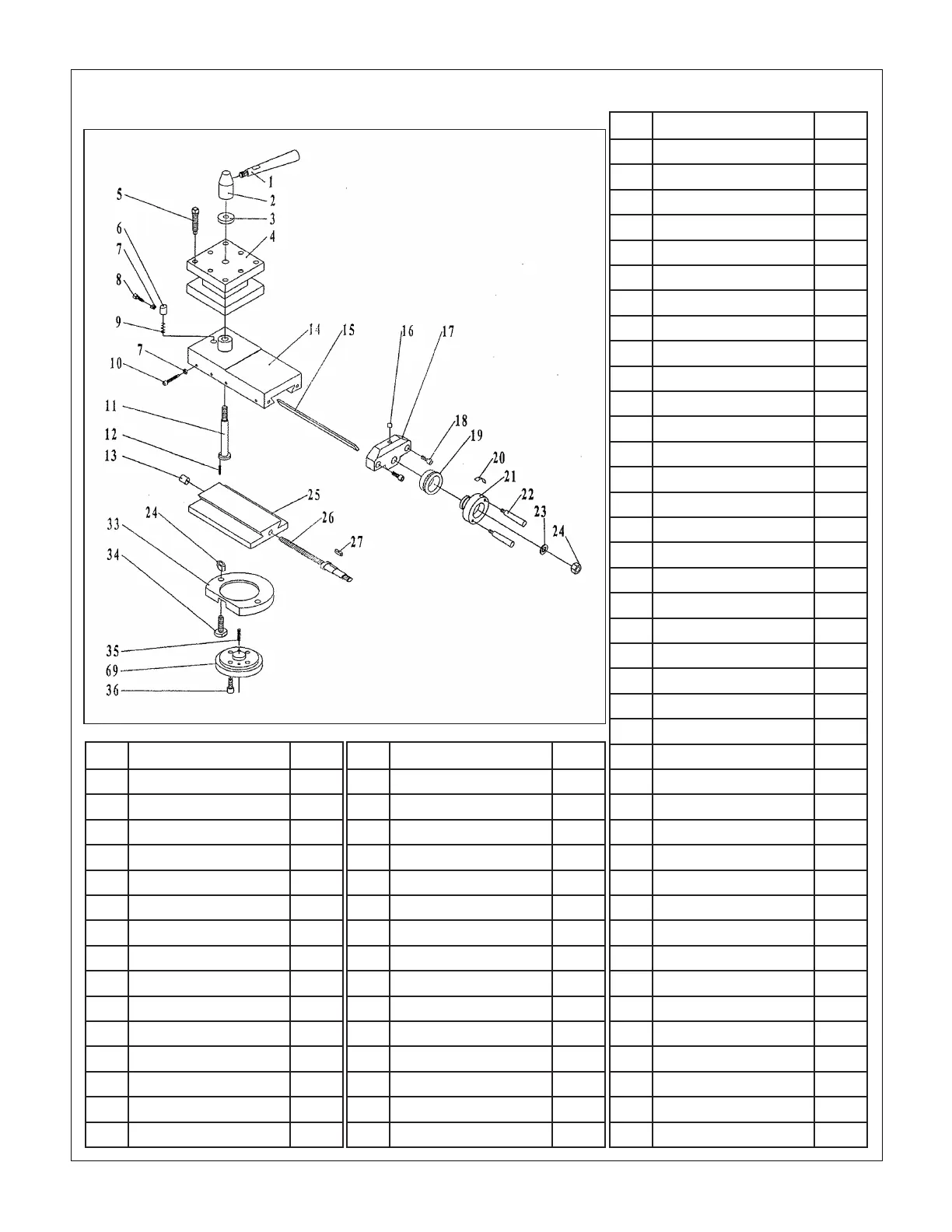

COMPOUND Fig 5B
There may be detail dierences
between this representative drawing
and the machine as supplied
Dimensions in millimeters
Ref Description Part
31 Screw M5 x 40 Z1240
32 Leadscrew nut Z1241
33 Compound clamp ring Z1242
34 T-bolt M8 x 22 Z1243
35 Pin 4 x 6 Z1244
36 Screw M6 x 14 Z1245
37 Cross-slide casting Z1246
38 Cross-slide gib Z1247
39 Set screw M4 x 12 Z1248
40 Screw M8 x 35 Z1249
41 Screw M5 x 25 Z1250
42 Screw M6 x 35 Z1251
43 Saddle casting Z1252
44 Cross-slide leadscrew Z1253
45 Leaf spring Z1254
46 Graduated collar Z1255
47 Handwheel Z1256
48 Special washer Z1257
49 Screw M5 x 8 Z1258
50 Handle sleeve Z1259
51 Handle bolt Z1260
52 Thrust bearing 5101 Z1261
53 Screw M5 x 20 Z1262
54 Base collar Z1263
55 Screw M8 x 20 Z1264
56 Compound leadscrew ange Z1265
57 Slide block Z1266
58 Saddle clamp block Z1267
59 Saddle gib support Z1268
60 Screw M4 x 20 Z1269
61 Saddle gib Z1270
62 Screw M3 x 8 Z1271
63 V-wiper backing, front Z1272
64 Rubber V-wiper, front Z1273
65 Plain wiper backing, rear Z1274
66 Plain wiper, rear Z1275
67 Cover Z1276
68 Screw M4 x 8 Z1277
69 Compound swivel base Z1278
70 Locknut M4 Z1279
Ref Description Part
1 Toolpost handle Z1210
2 Handle hub Z1211
3 Washer Z1212
4 4-Way Toolpost Z1213
5 Square hd screw M8 x 30 Z1214
6 Detent pin Z1215
7 Locknut Z1216
8 Screw M4 x 16 Z1217
9 Spring 0.8 x 4.8 x 16 Z1218
10 Gib screw M4 x 20 Z1219
11 Toolpost spindle Z1220
12 Pin 3 x 6 Z1221
13 Oiler Φ10 Z1222
14 Compound casting Z1223
15 Compound gib Z1224
Ref Description Part
16 Oiler Φ6 Z1225
17 Cmpnd leadscrew ange Z1226
18 Skt hd screw M5 x 16 Z1227
19 Graduated collar Z1228
20 Leaf spring Z1229
21 Handwheel Z1230
22 Handwheel handle Z1231
23 Washer Φ8 Z1232
24 Locknut M8 Z1233
25 Compound base Z1234
26 Compound leadscrew Z1235
27 Key 3 x10 Z1236
28 Screw M5 x 8 Z1237
29 Washer Z1238
30 Locknut M5 Z1239
