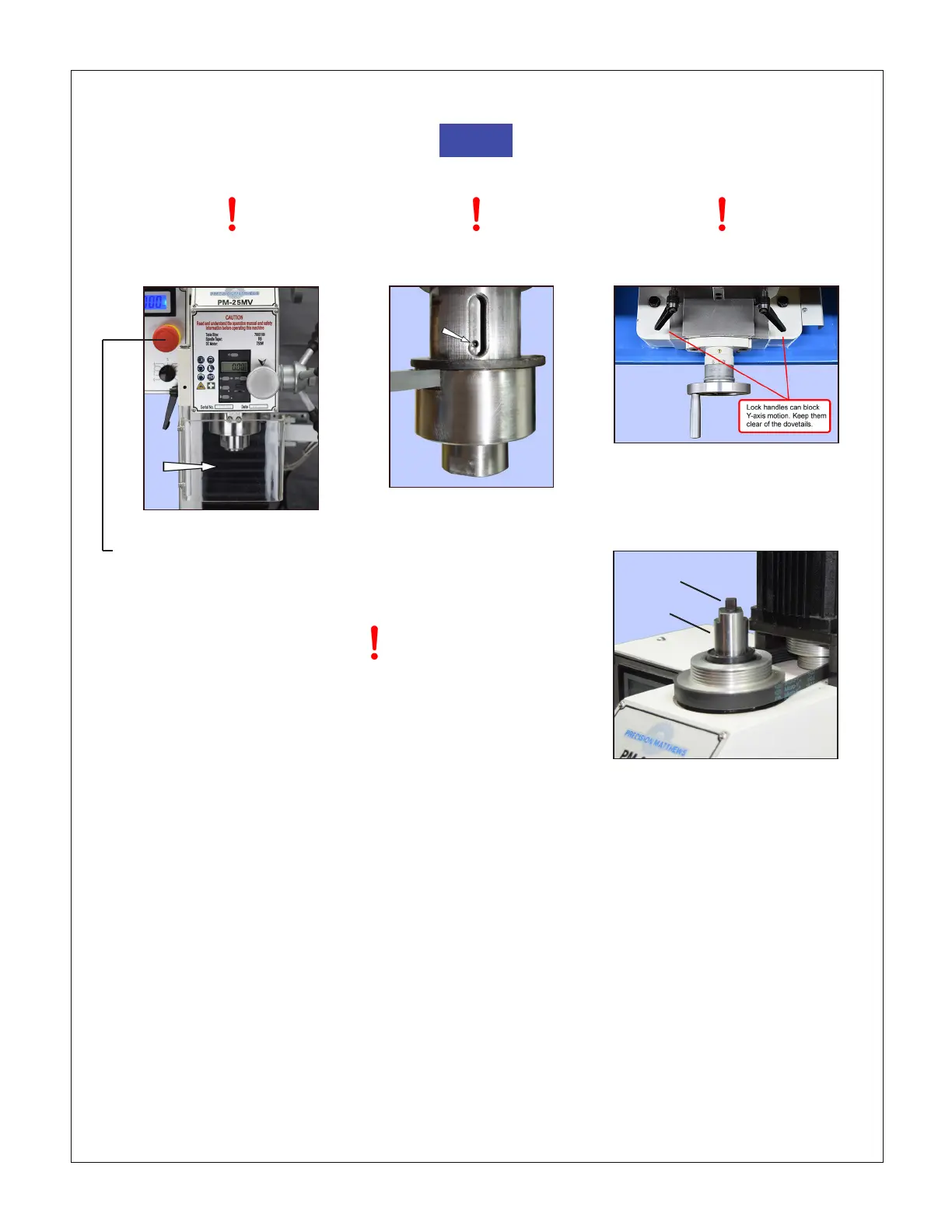

PM 25MV-BD

FAQ

120 Vac power connected?

E-Stop button out? (pop it out

by twisting rmly to the right.)

Fuse good?

The CHIP GUARD switch may

be open. Close the guard.

The table won’t go

back to the column

The X-axis (table) lock handles

could be the problem. Swing

them up to clear.

R8 collets won’t go

into the spindle

The collet locating screw

could be in too far. Back it

out a little.

My mill doesn’t run

This manual contains essential safety advice on the proper setup, operation, maintenance, and ser-

vice of the PM 25MV-BD milling machine. Failure to read, understand and follow the manual may

result in property damage or serious personal injury.

There are many alternative ways to install and use a mill. As the owner of the mill you are solely

responsible for its proper installation and safe use. Consider the material contained in this manual

to be advisory only. Quality Machine Tools, LLC cannot be held liable for injury or property damage

during installation or use, or from negligence, improper training, machine modications or misuse.

This manual describes PM 25MV-BD machines as shipped from February 2016. There

may be detail di󰀨erences between your specic machine and the information given here

(with little or no impact on functionality). Please email us if you have questions about any

aspect of the manual or your machine (see our website www.precisionmatthews.com for

support addresses). Your feedback is welcomed!

This material was originated by Precision Matthews. No portion of the manual may be repro-

duced or distributed in any form without the written approval of Quality Machine Tools, LLC.

The drawbar doesn’t

seem to be long enough

Install the drawbar UNDER the

drawbar cap, as in the photo

(unscrew cap, insert drawbar

into spindle, replace cap)

Drawbar

Cap
