6
PM 25MV v9 2021-12 Copyright © 2021 Quality Machine Tools, LLC
PM-25MV SPECIFICATIONS

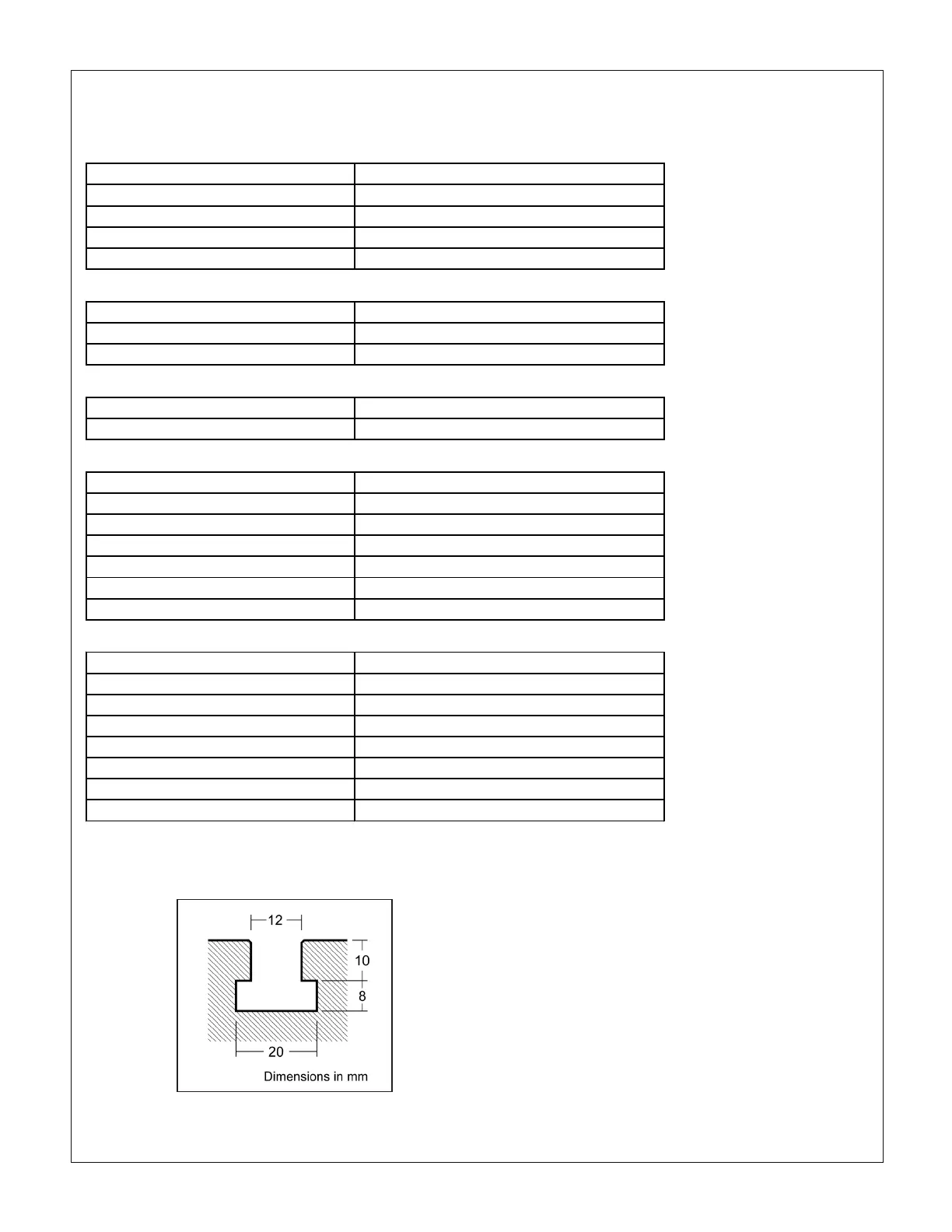

T-slot dimensions
Approximate weight:
Machine only 275 lb net, 320 lb shipping
Welded steel stand 50 lb net, 54 lb shipping
Size, including stand W 39 in. x D 20-1/2 in. x H 68-1/2 in.
Stand footprint W 13-1/2 in. x D 16-1/2 in.
Tray W 19-3/4 in. x D 20-1/2 in.
Electrical
Power requirement 120V, 60 Hz, single phase
Spindle motor Brushless dc, 750W (1 HP)
Full load current 14A
Headstock
Vertical travel* 13 in.
Left-right tilt 90 degrees clockwise/counter-clockwise
Spindle
Speeds (rpm) Low range 50 to 1250, High range 100 to 2500
Internal taper R8
Quill travel 2 in.
Quill diameter 2.36 in.
Spindle nose to table 2 in. min, 12 in. max
Spindle centerline to front face of column 6 in. to pleated cover (uncovered, 7 in.)
Drawbar Standard 7/16 - 20 thread
Table
Size W 27-1/2 in. x D 7-1/8 in.
Surface height over mounting surface Approx 7 in.
Surface height over floor, if on stand Approx 38-1/2 in.
Maximum load 200 lb, table centered, less if overhanging
Leadscrews Acme, inch pitch, 10 tpi
Left-right travel (X-axis)* 20-1/2 in.
Front-back travel (Y-axis)* 7 in.
T-slots (3) 12 mm wide, 63 mm (2-1/2 in.) centerlines
* DRO installation may limit these numbers
