34 Assembling and Maintaining Elliptical Fitness Crosstrainers: EFX 883 / 833 / 813
3. Apply pressure to both covers so that the protrusions fit
firmly into the screw holes.
4. Secure the upright support covers using two self-tapping
screws.

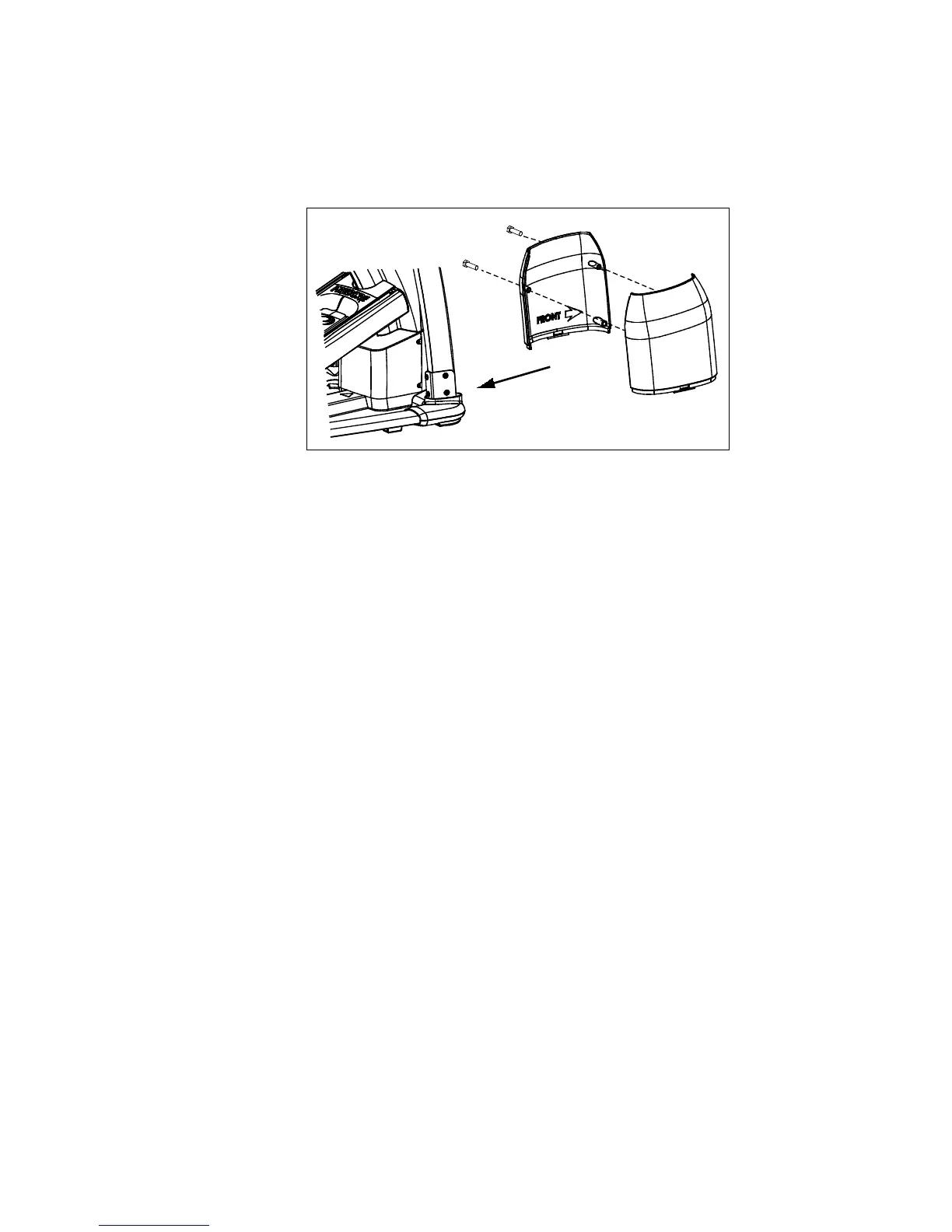

Figure 20: Upright support cover attachment (right-hand
cover shown)
5. Slide the covers down and snap them into the base
mount.
Note: Be sure to align the covers so that the lip of each
cover fits inside the edge of the base mount and the hook
on the base mount fits into the corresponding slot on the
cover. When you have snapped the covers into place, the
surfaces of the covers and the base mount should line up
smoothly.
6. Repeat steps 1 through 5 to attach the other pair of
upright support covers.
