Installation Instructions Precor P62 (w/media adapter)

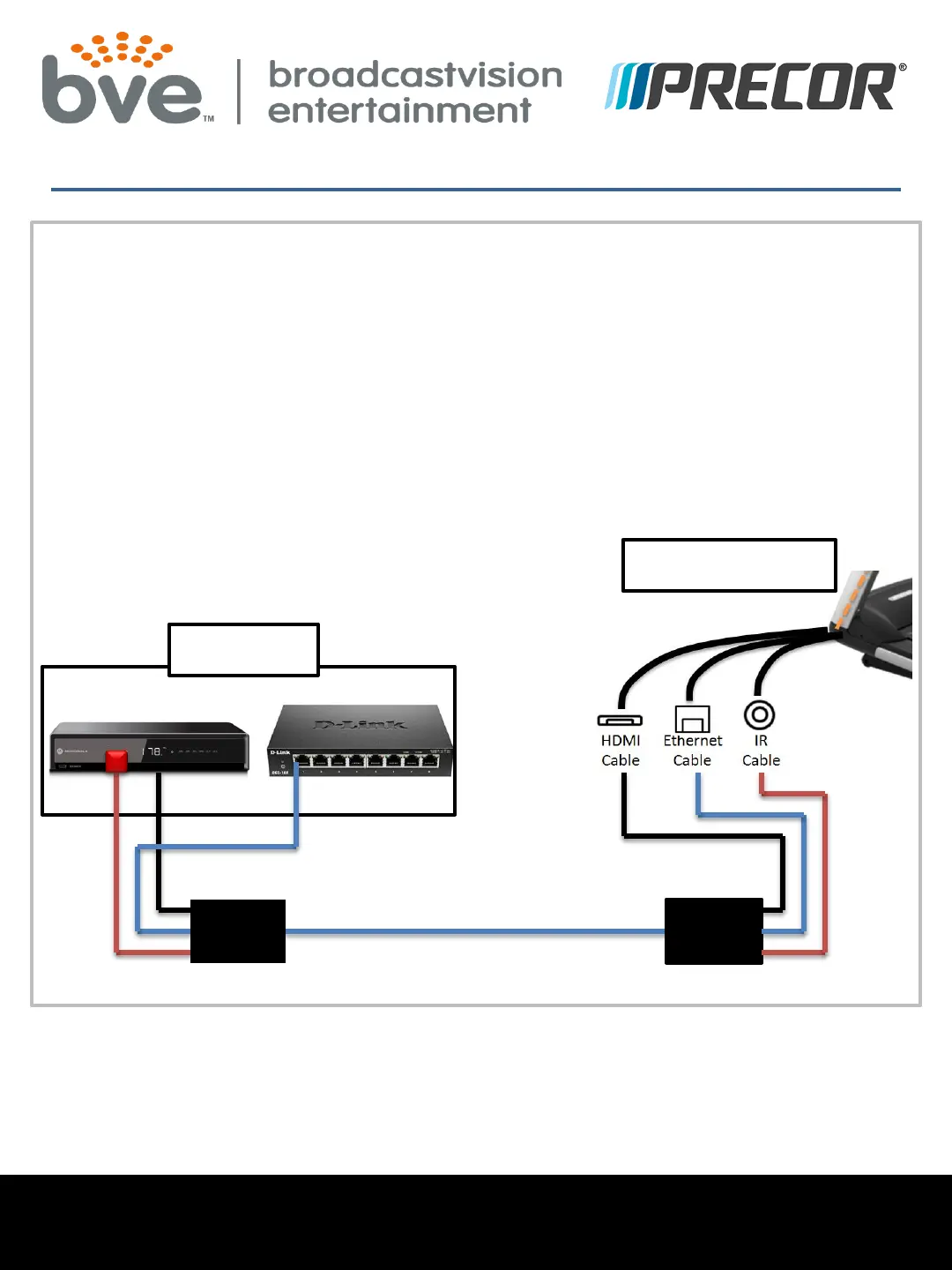

WIRING DIAGRAM if set top box is located away from cardio
equipment– There are many factors that determine what extenders are
needed and how to configure the wiring. The example below is an example only
and not a recommendation. The diagram below is based on one Ethernet cable
that was installed to each piece of cardio equipment. HDMI, IR and internet will
be pushed through one Ethernet cable using an extender. The extenders will need
power and depending on the type of extender they may need power on both
ends. We recommend running at least 2 Ethernet cables since the cost of the
extenders are less and the system will be more reliable. Please review the next
page for more info.
Ethernet Cable
Extender Extender
AV Closet
Please see the next page for additional wiring diagrams
including our recommendations.
Base of Cardio
To Next Page
