Precor P62 - Preferred Wiring: 3 Ethernet Cables; Good Wiring: 2 Ethernet Cables; Risky Wiring: 1 Ethernet Cable

To Next Page

To Previous Page

BVE Technical Support

Tel: 888.330.4283 x 3 Support@Broadcastvision.com

Wiring Diagrams

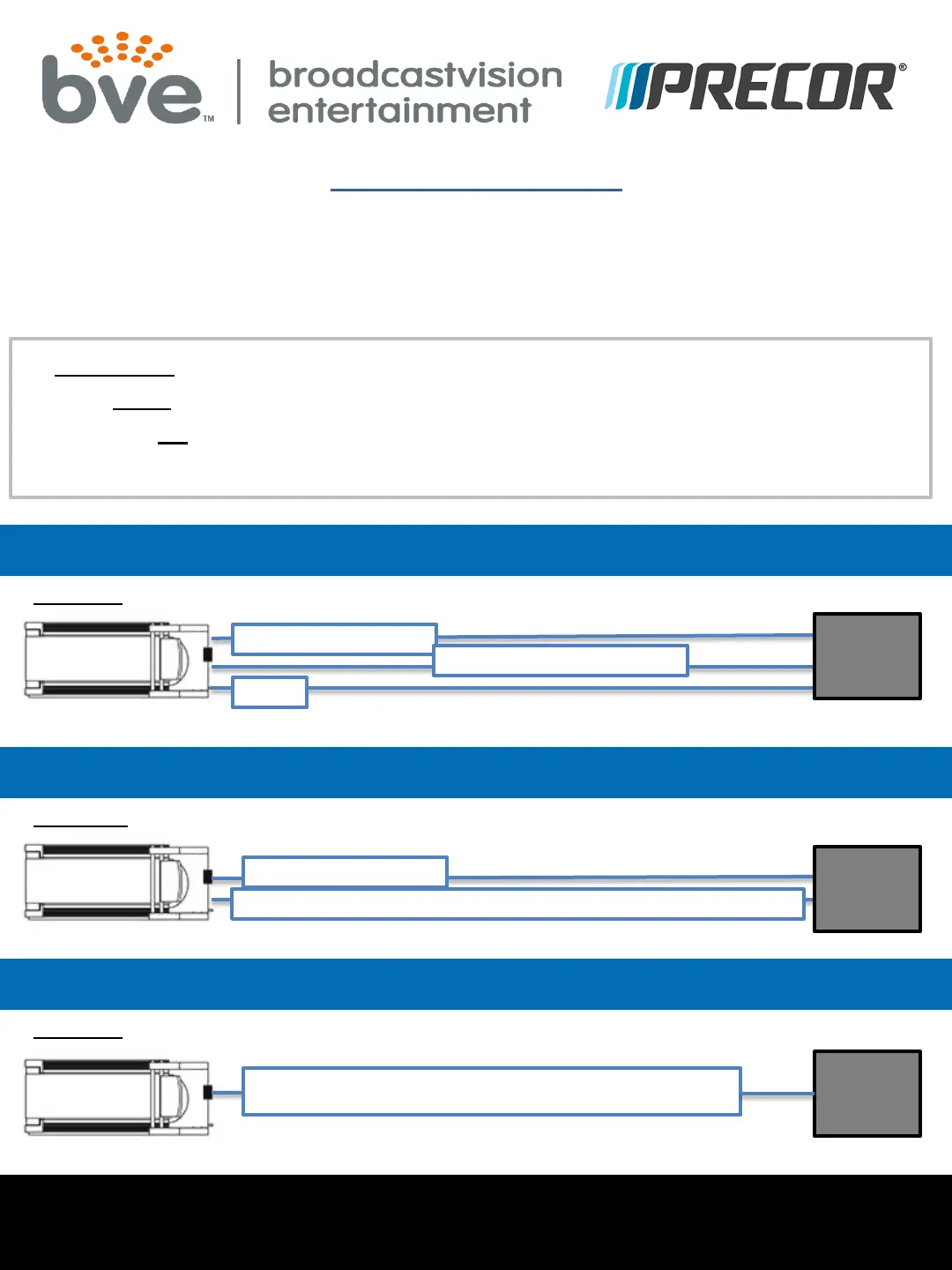

WIRING DIAGRAMS if set top box is located away from cardio

equipment

SCENARIO

•STB away from cardio equipment

•Internet is required for cardio equipment

•P62 w/media adapter kit

Connect CAB to Ethernet cable

HDMI/Internet over Ethernet extender required or use for HDMI only and wireless for Internet

Option 3 – (1 Ethernet cable) – Cardio equip must have HDMI input.

HDMI/Internet/IR over CAT6 extender required or use extender for HDMI/IR only

and wireless for Internet

Option 1 – (3 Ethernet cables) – Cardio equip must have HDMI input.

Connect CAB to Ethernet cable

HDMI over Ethernet extender required

Internet

Option 2 – (2 Ethernet cables) – Cardio equip must have HDMI input.

Closet

PREFERRED – Extender less expensive and set up more reliable.

GOOD – Extender affordable & not much risk of having issues.

RISKY – Extender more expensive & potential issues if cable is not ran correctly.

Closet
