30 Assembling and Maintaining TRM 800-Series Treadmills
3. Route the upper end of the base unit data cable from the
top of the upright support on your left (shown as position
1 in the following figure) through the spacing ring
(position 2) and up through the cable channel on your left
(position 3). Bend the ends of the cable ties around the
data cable to hold it in place.

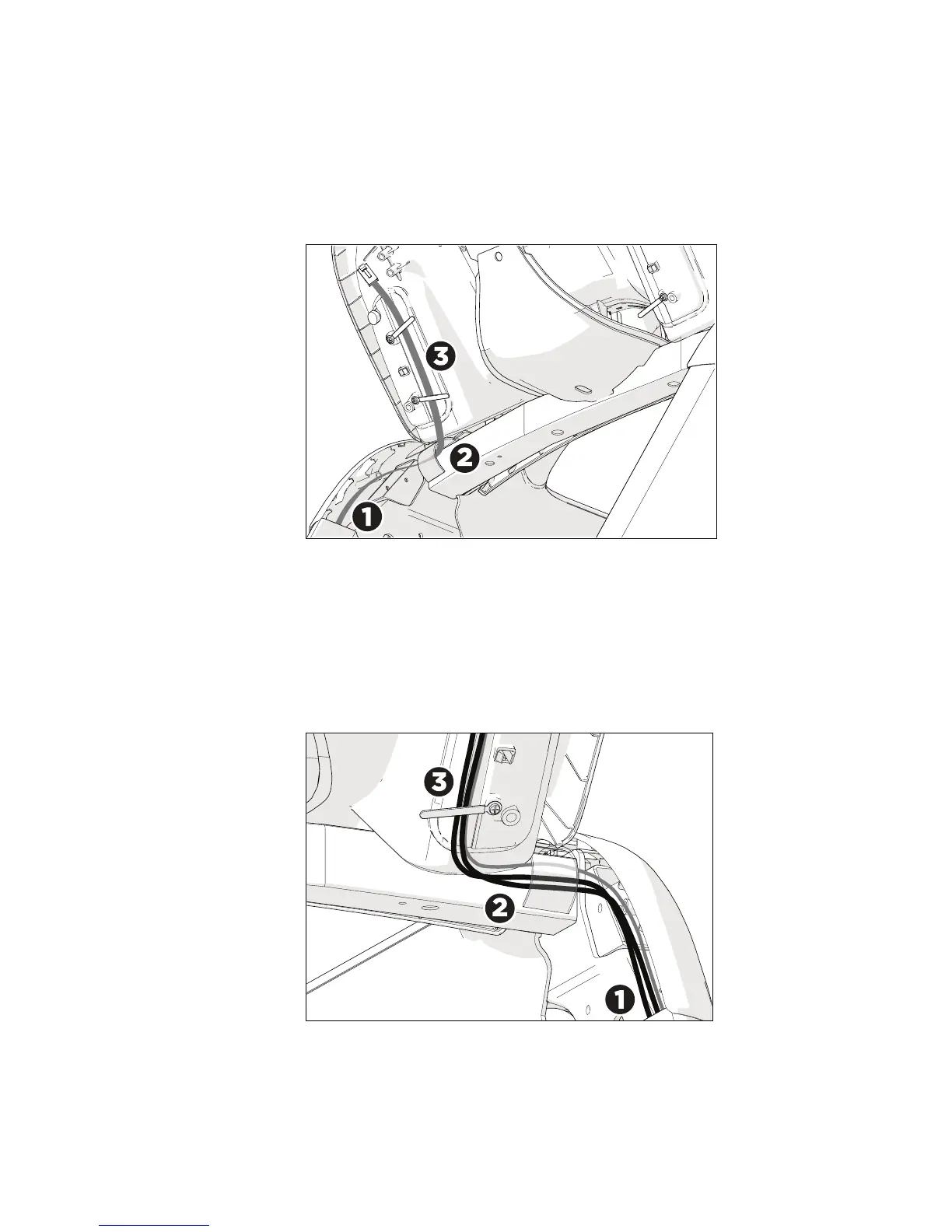

Figure 11: Base unit data cable positioning
4. Route the upper end of the console cable assembly from
the top of the upright support (position 1 in the following
figure) through the spacer ring (position 2) and the
right-hand cable channel in the fairing (position 3), then
wrap the ties next to the channel around the cable
assembly to secure it.
Figure 12: Console cable assembly positioning
