50 Assembling and Maintaining TRM 800-Series Treadmills
Completing the Console Installation (P30
and P10)
Before you complete the final installation steps, double-check
the connections you have made. Make sure that all cables are
fully and securely connected, and that any unneeded cables
are tied back properly.
To complete the installation:
1. Feed any extra cable back into the treadmill fairing.
2. Tilt the control console backward (toward yourself) until
the tab on the top edge of its back plate slides along the
top edge of the console mount and the screw holes align
properly.
3. Insert four ¹₄-inch × ³₈-inch shoulder bolts through the
holes in the console mount and thread them into the holes
in the back plate on the console. Using a ³₁₆-inch hex
wrench, tighten the shoulder bolts completely.

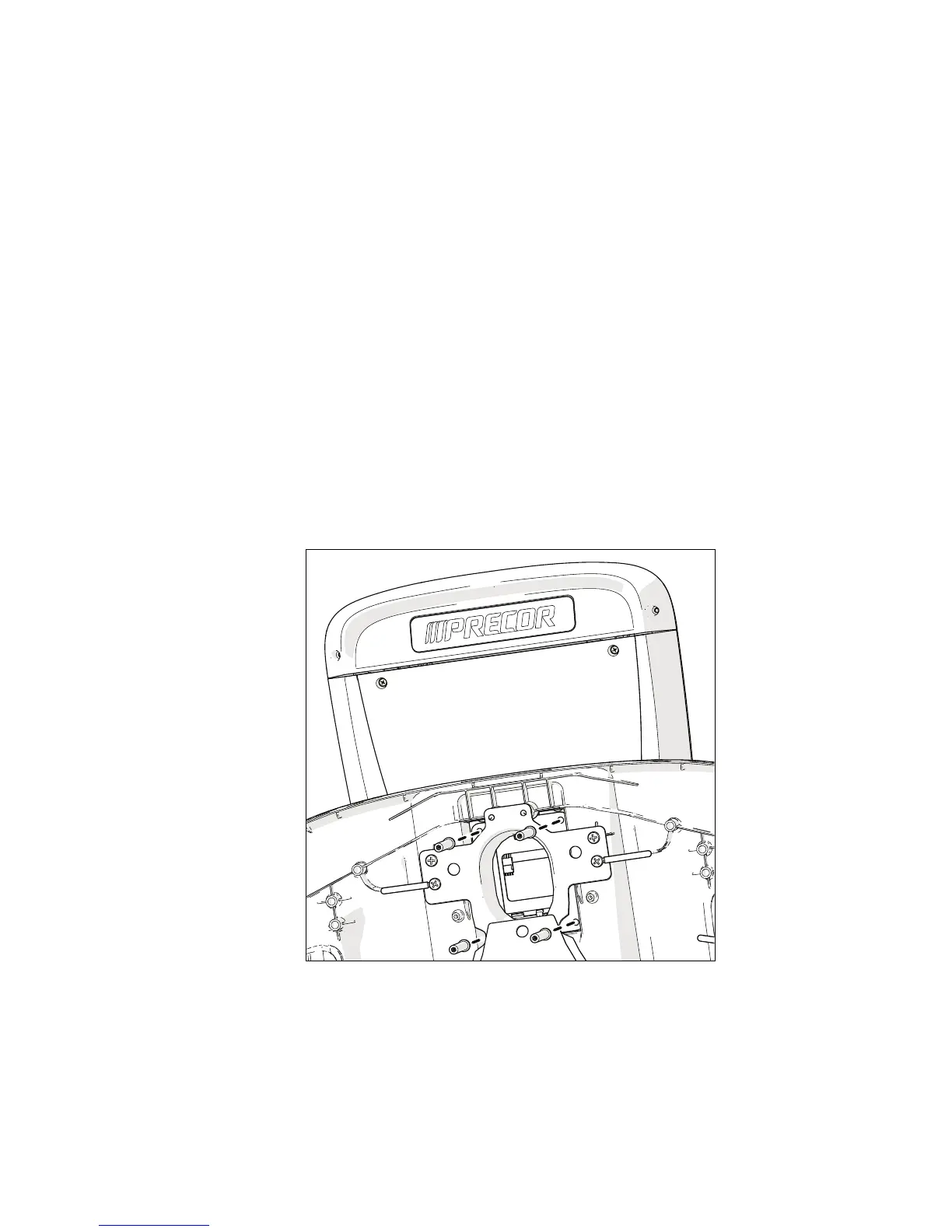

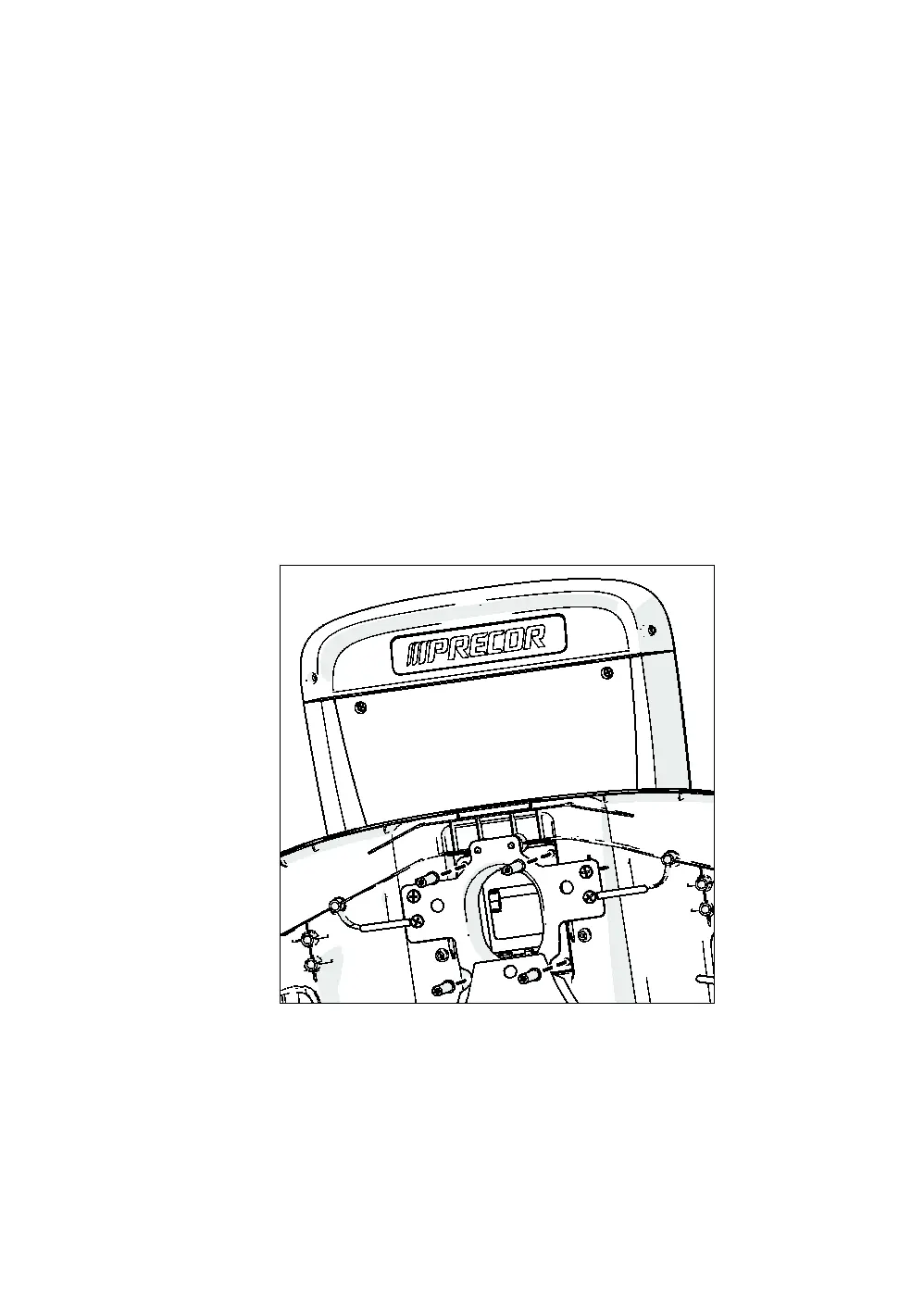

Figure 29: Securing the console
