Installing the Console 45
Completing the Console Installation (P80)
Before you complete the final installation steps, double-check
the connections you have made. Make sure that all cables are
fully and securely connected, and that any unneeded cables
are tied back properly.
To complete the installation:
1. Feed any extra cable back into the treadmill fairing.
2. Tilt the control console backward (toward yourself) until
the tab on the top edge of its back plate slides along the
top edge of the console mount and the screw holes align
properly.
3. Insert four ¹₄-inch × ³₈-inch shoulder bolts through the
holes in the console mount and thread them into the holes
in the back plate on the console. Using a ³₁₆-inch hex
wrench, tighten the shoulder bolts completely.

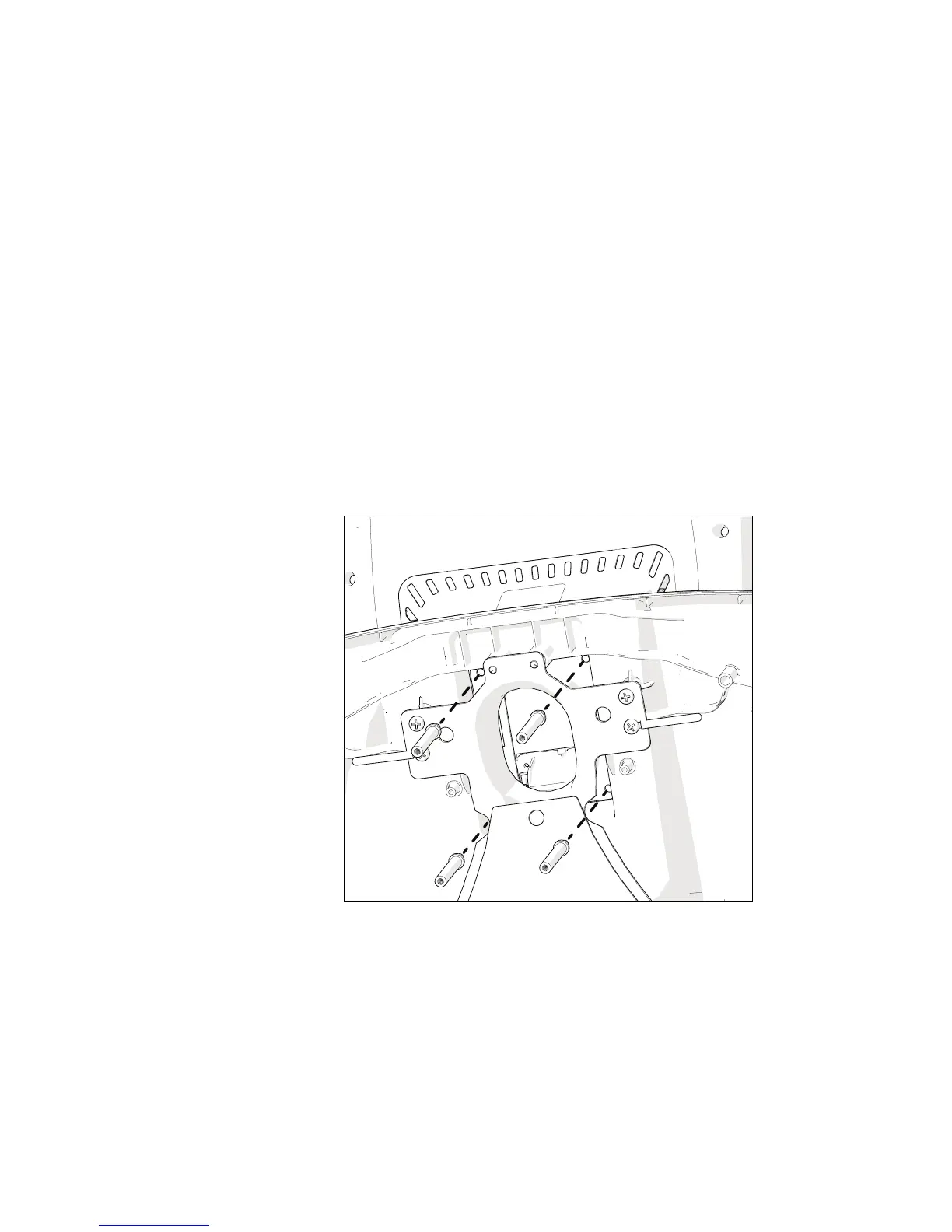

Figure 26: Securing the console
4. Line up the two small tabs at the top of the console’s back
cover with the slots at the top of the opening in the
console case. Insert the tabs into the slots.
5. Insert the remaining tabs on the back cover into the
corresponding slots on the console case.
6. Press gently on the edges of the back cover to snap it into
place.
