44 Assembling and Maintaining TRM 800-Series Treadmills
Connecting the Power Cable
Route the power cable through the cutaway opening at the
upper left corner of the back plate. In the nearby opening
within the steel console framework, locate the socket that
matches the power cable plug and connect the power cable
to it.
Note: Be sure that the latch on the plug clicks into place on
the socket.

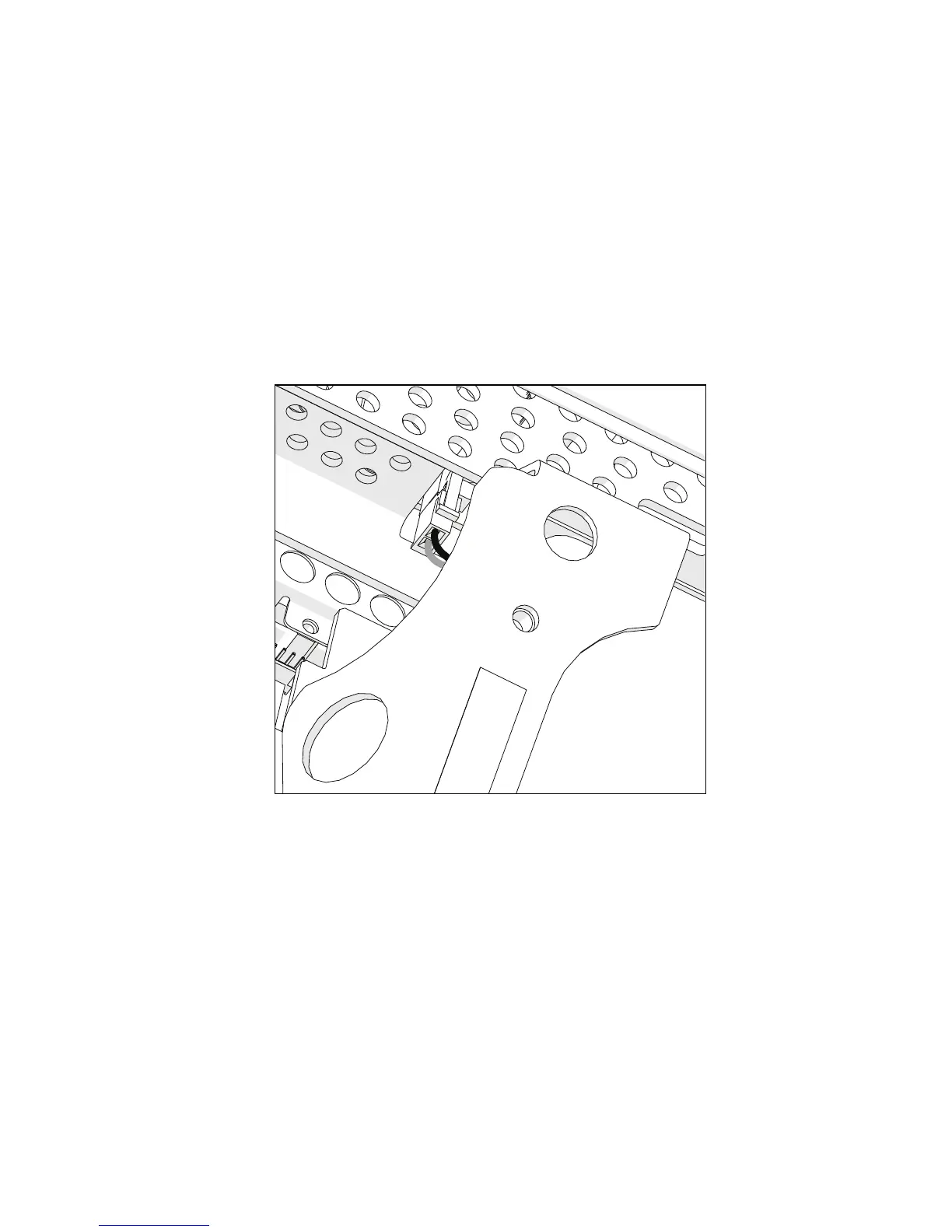

The following illustration shows how the cable should look
once it is installed.
Figure 25: Connecting the power cable
