48 Assembling and Maintaining TRM 800-Series Treadmills
After the console has been seated, separate the individual
cables out of the end of the console cable assembly and
attach them to the appropriate circuit connectors inside the
console. Refer to the following diagram and table to identify
the cables and connectors.
Important: All cables must pass through the opening in the
center of the console mount.
2

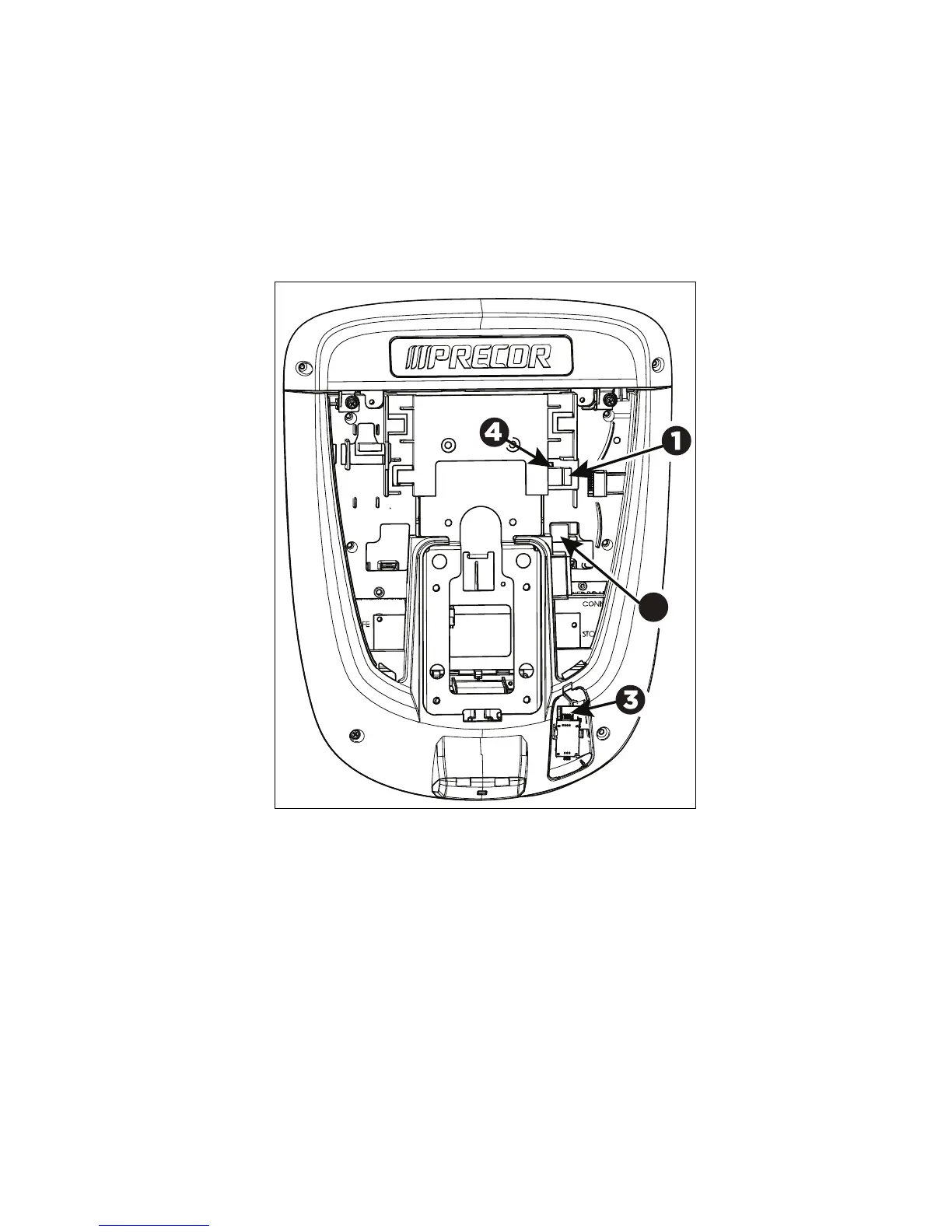

Figure 28: Cable connections, P30 and P10 consoles
