Precor P80 Console User Manual

P80 Console Wiring Quick Start Guide
P80 Wiring Quick Start Guide
P/N 301419-241 rev D, en
September 2014
© 2014 Precor Incorporated
Equipment Verification Steps
Use the following checklist to set up and configure the P80 console.
For more information, refer to Operating and Maintaining the P80
Console and Setting Up and Using Preva Business Suite.
Install console based on installation guide and this sheet.
Remove serial number label from P80 mounting plate.
o
Verify that the patch cables from the floor or wall cannot
become caught on the equipment’s moving components.
o
Verify operation of machine controls.
• Elevation and speed
• Resistance
o
Update software as necessary.
o
Scan TV channels.
1. Verify that available channels match channel list.
2. Rename channels if necessary.
3. Set the default channel.
o
Touch GO, then verify that the following items work:
• Channel up/down controls
• Volume up/down controls
• Channel changes on the channel list
• Personal media player connection (video and audio)
• Headphone jack
• Treadmill STOP button and emergency stop lanyard
o
Register the equipment. You will need the following items:
• Site code
• Precor technician account name and password
• Serial number from the base
• Friendly name assigned to the equipment by the facility
To complete registration:
1. Verify IP connectivity.
2. Enter the Preva server name (na.preva.com for North
American sites).
3. Enter your assigned Precor technician account name and
password.
4. Follow the on screen instructions to register the product.
o
Ask the facility’s Preva administrator to log on to Preva
Business Suite and confirm that all P80-based equipment
appears there.
o
Precor Incorporated
20031 142nd Ave NE, P.O. Box 7202, Woodinville, WA 98072-4002
1-800-347-4404 • www.precor.com

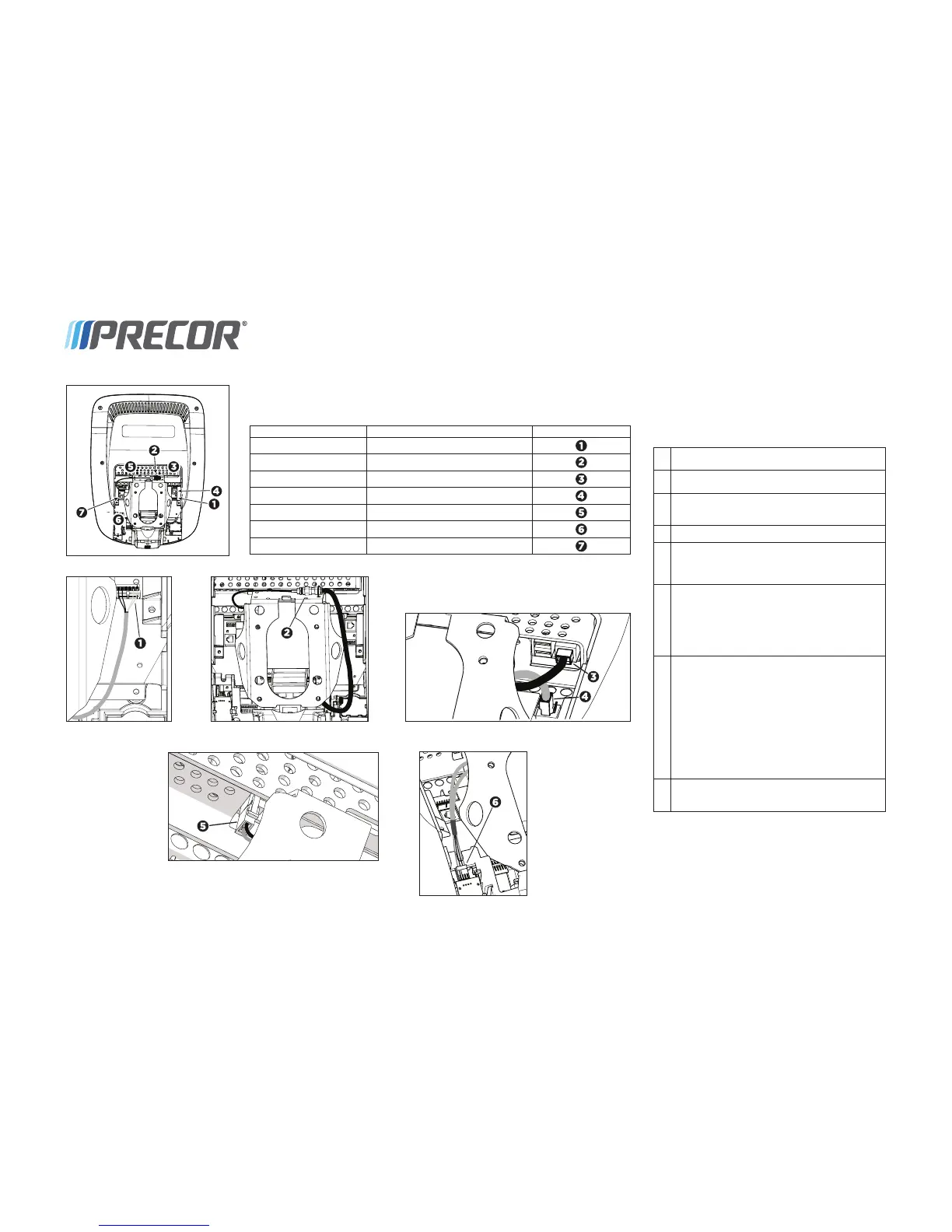

Connecting the heart rate
sensor cable
Connecting the TV cable
Connecting the Ethernet (3) and base unit data (4) cables
Connecting the safety key
cable (treadmills only)
Cable Connector Type Circuit Connector Location
Safety key (treadmills only) Six-contact strip, keyed
TV in F-type coaxial
Ethernet (LAN) Eight-contact modular, on round black cable
Data from base unit Eight-contact modular, on flat gray cable
Power Two-contact plug, polarized and latched
Heart rate sensors Four-contact strip, keyed
CSAFE Eight-contact modular, on flat gray cable
WARNING
Before you connect any cables to the console, make sure that the equipment is not
connected to any external power source.
Connecting the power cable
