24 Assembling and Maintaining TRM 800-Series Treadmills
Assembling the Frame
DANGER
Make sure that the treadmill is not connected to
any power source before you begin the
following procedures.
Each of the upright supports on this treadmill has two internal
channels: one to provide structural support and one to
contain the cables. The following figure shows the location of
the cable channel in each upright support.

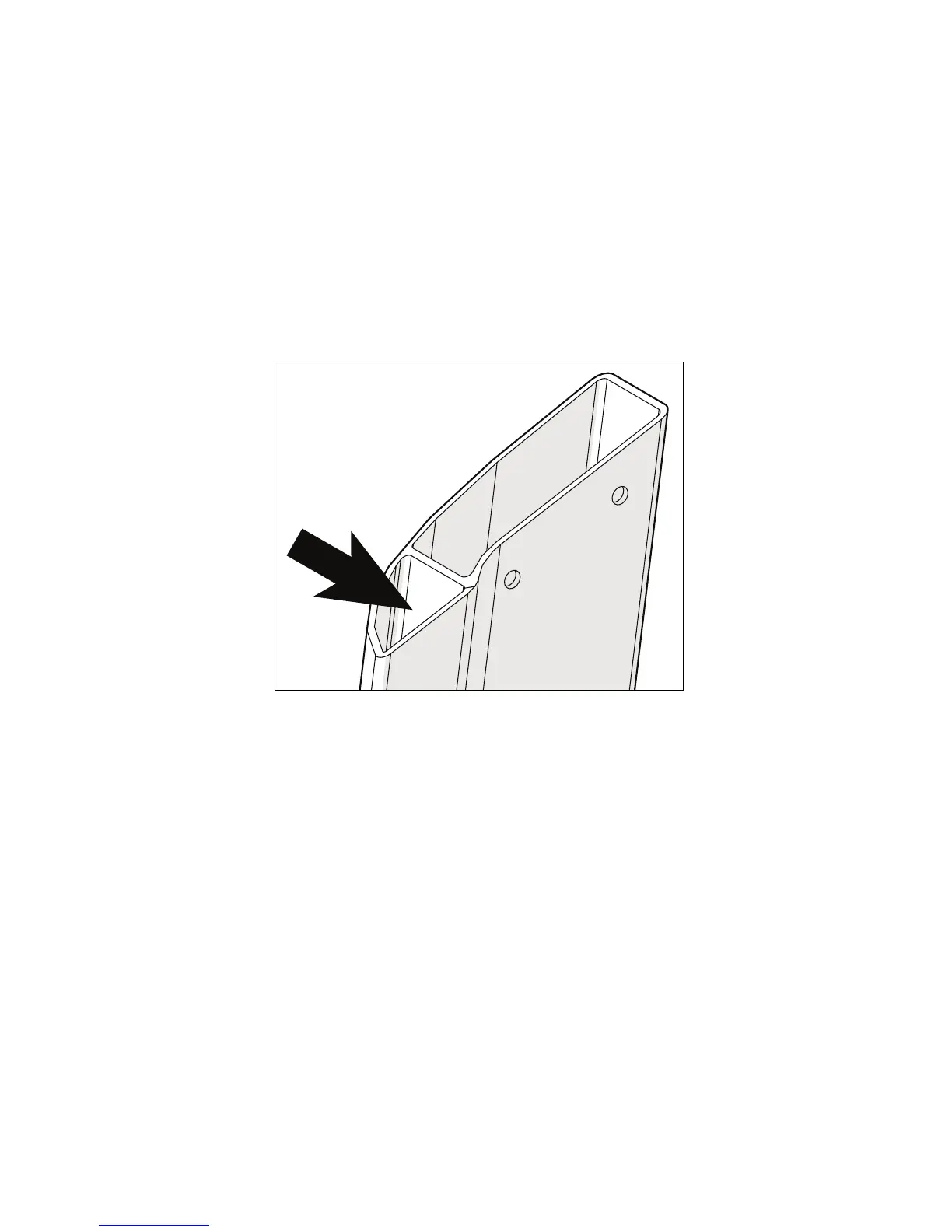

Figure 3: Cable channel location
