38 Assembling and Maintaining TRM 800-Series Treadmills
To level the treadmill:
1. Place a bubble level across the running belt to see
whether the treadmill is level.

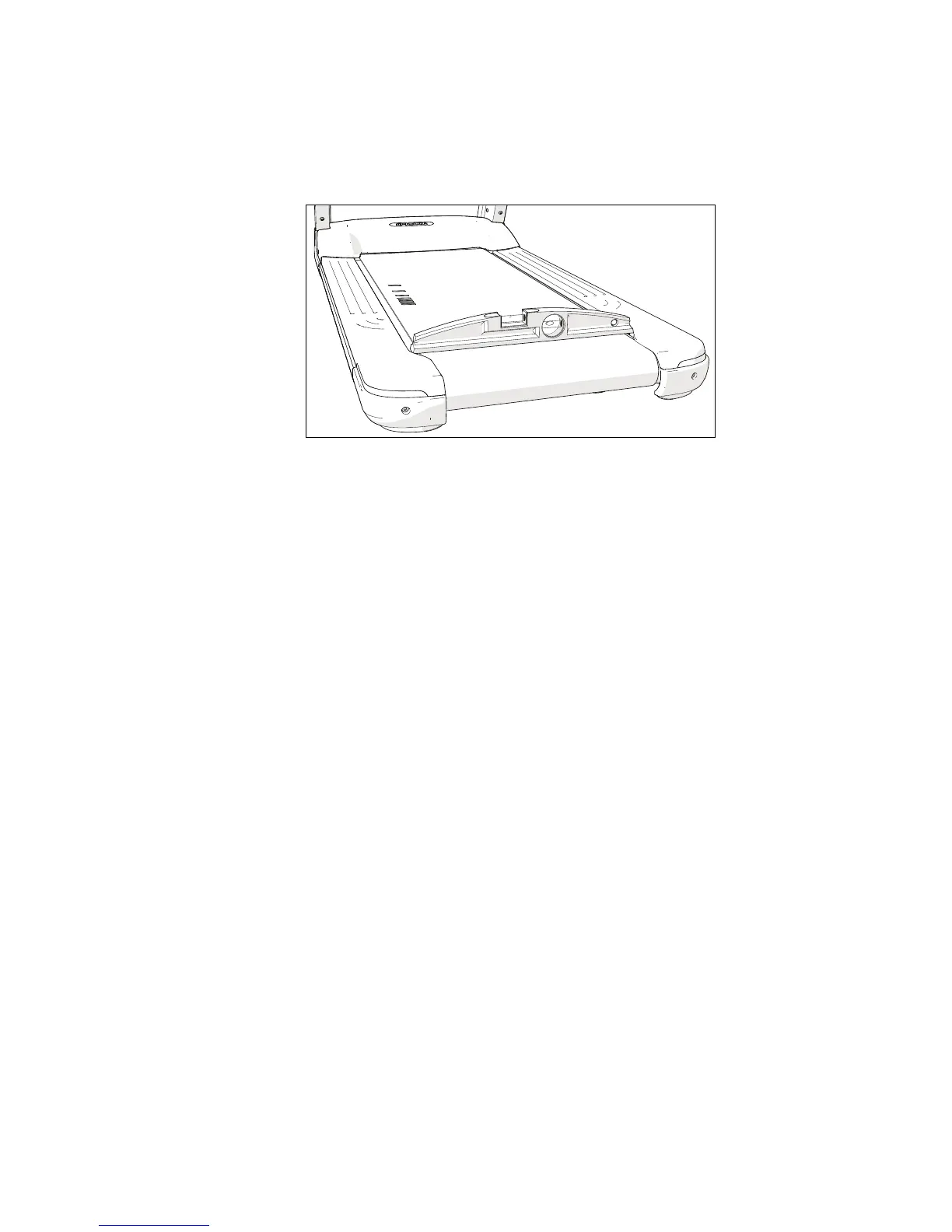

Figure 20: Bubble level placement on running belt
If the
treadmill …
Then …
Is level Make sure the jam nuts on the adjustable feet are
tightened securely, then skip to the next
procedure.
Is not level Continue with step 2.
2. Position yourself next to the adjustable rear feet.
3. Using a ³₄-inch open-end wrench, loosen the jam nuts on
the rear feet.
Important: Be sure that your assistant uses proper lifting
techniques in the following step.
4. Ask your assistant to lift the rear portion of the treadmill.
5. Using the ³₄-inch open-end wrench, adjust the feet as
needed.
6. Repeat steps 2 through 5 until the treadmill is level.
7. If necessary, adjust the rear feet so that the user’s weight
is distributed evenly on the treadmill.
8. Using the ³₄-inch open-end wrench, tighten the jam nuts
on the two adjustable feet so that they are secure against
the treadmill frame.
