Installing the Console 41
To position the console:
1. Make sure that as much of each cable as possible passes
through the opening in the middle of the console mount
on the base unit.
2. Place the console over the console mount.
3. Rest the console on the console mount so that the notch
on the bottom of the console’s back plate rests on the
rectangular hook at the bottom of the console mount, as
shown in the following figure.

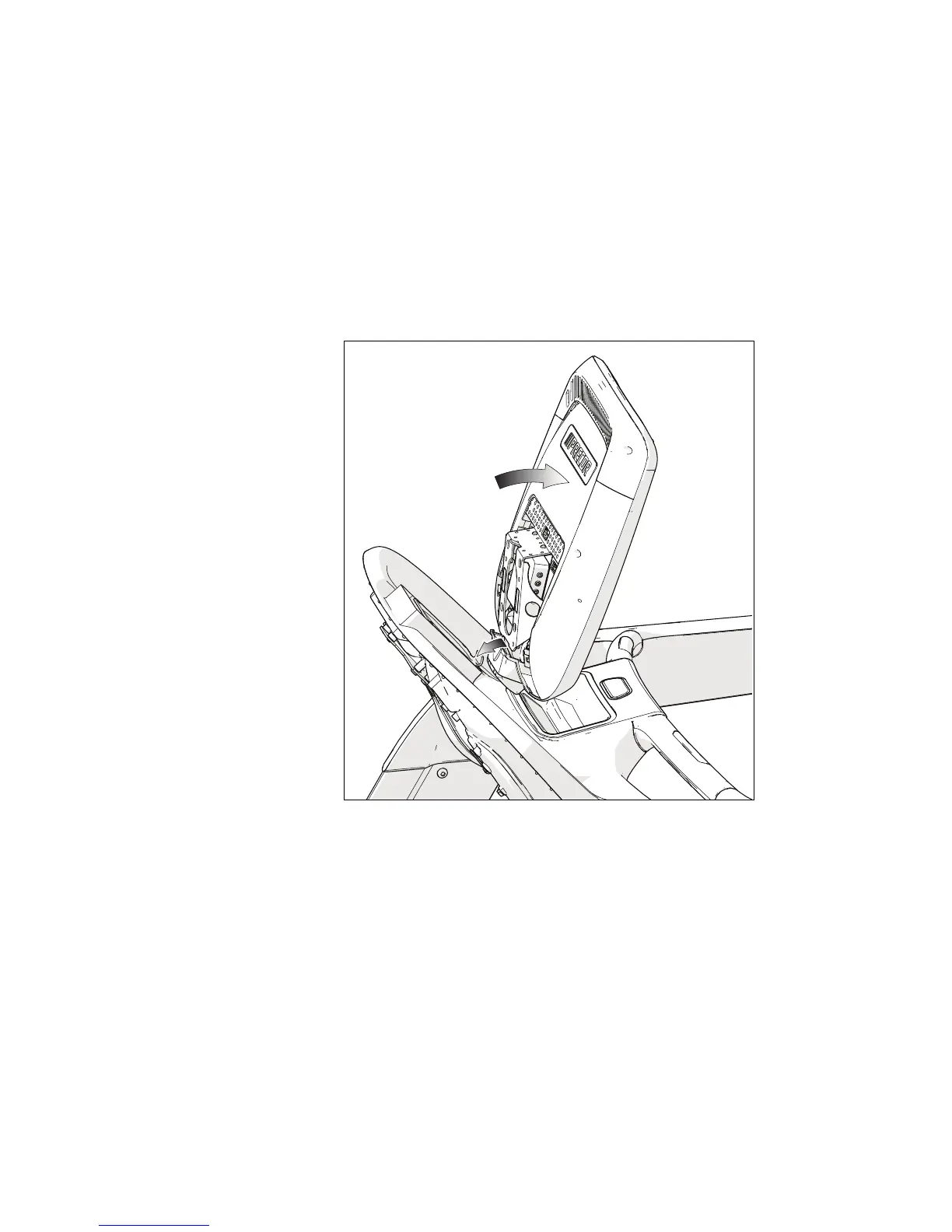

Figure 22: Console positioning for connection
4. Tilt the console forward until it stops. Use one hand to
steady the console in this position, or ask your assistant
to do so.
