Installing the Console 47
Connecting the Power Cable
Route the power cable through the cutaway opening at the
upper left corner of the back plate. In the nearby opening
within the steel console framework, locate the socket that
matches the power cable plug and connect the power cable
to it.
Note: Be sure that the latch on the plug clicks into place on
the socket.

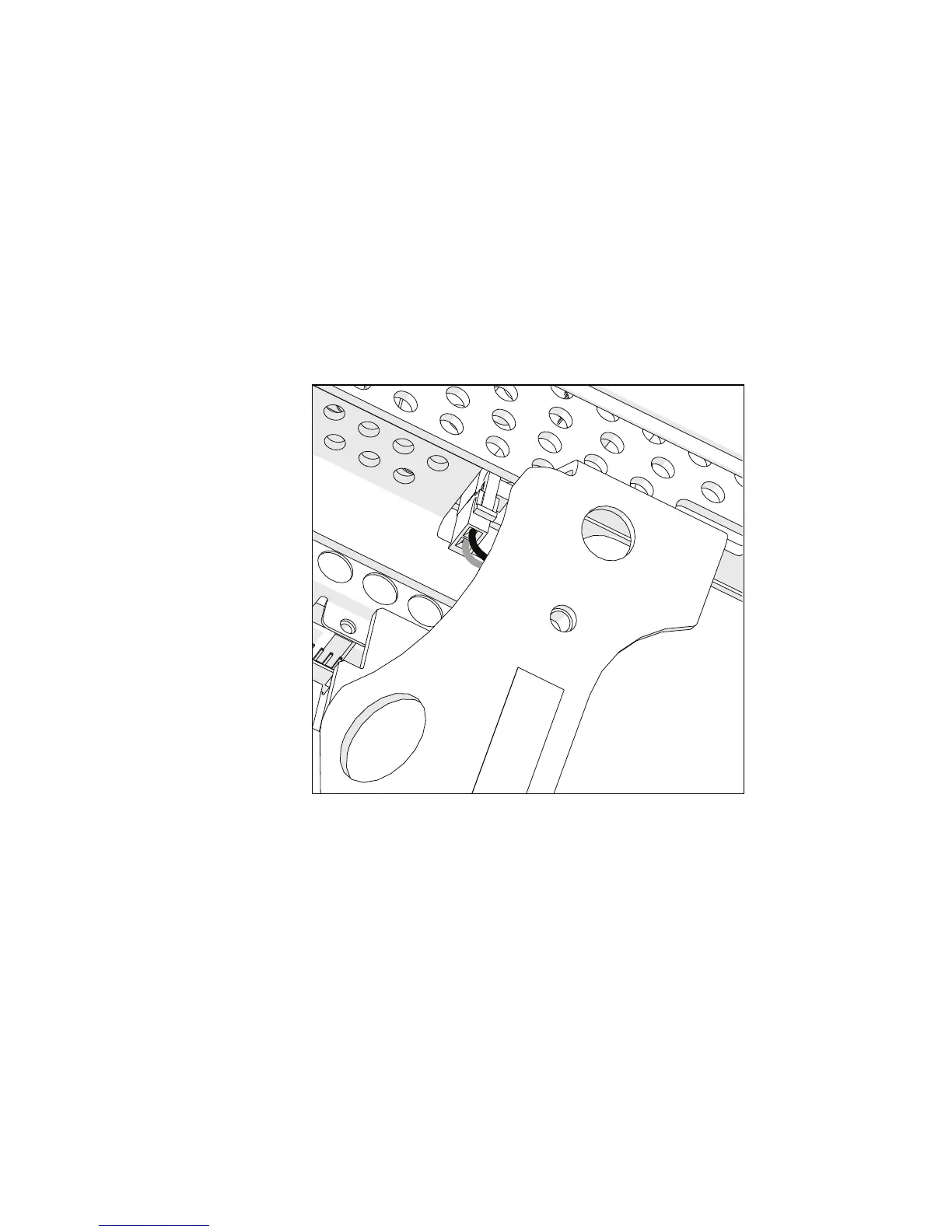

The following illustration shows how the cable should look
once it is installed.
Figure 27: Connecting the power cable
