Assembling the Equipment
7
Attaching the Handrail Assembly
The handrail assembly arrives with four cables already installed. The base unit
data cable is rolled up and tucked inside the left tube. Before attaching the
handrail assembly, unroll the cable and remove the kinks.
To attach the handrail assembly:
1. Ask your assistant to hold the handrail assembly while you feed the base unit
data cable inside and completely down the left upright support.
Note: Make sure the cable connector rests on the floor at the base of the
upright support.
CAUTION: Be aware of the handrail extensions when you are working around the
front of the unit. It is easy to bump your head or sustain other injuries if you ignore
the location of the handrail extensions.

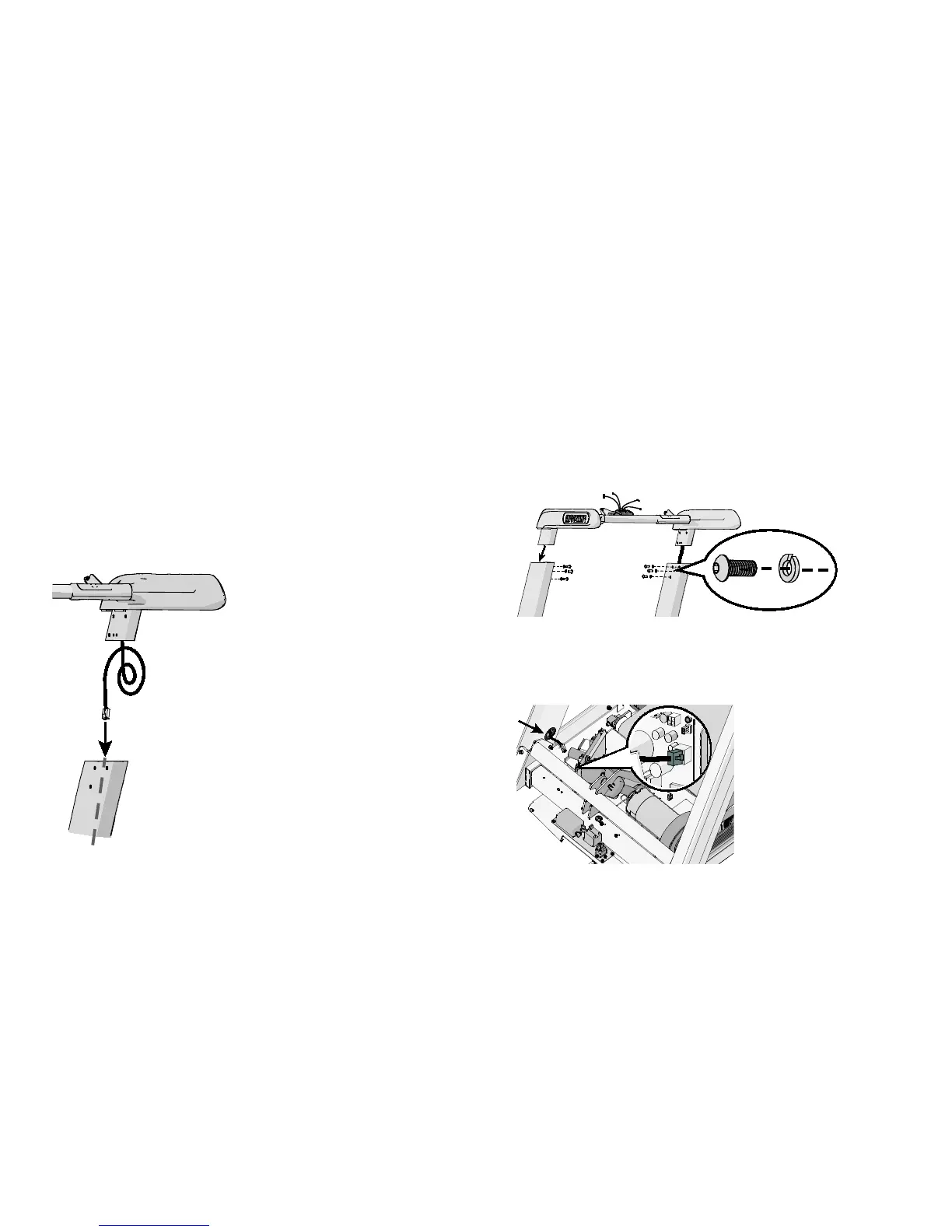

Figure 7: Feed cable from handrail extension through upright support
2. Ask your assistant to hold the handrail assembly above the upright supports.
Tip the assembly forward so the mounting brackets slide along the interior
rails inside the upright supports. Align the mounting holes and secure the
handrail using six ⁵₁₆-inch x ³₄-inch buttonhead cap screws and six split
washers. Partially tighten the fasteners.
Important: Make sure the fasteners do not pinch the cable. Cables damaged by
improper installation will not be covered by the Precor Limited Warranty.
Note: Thread the bottom hole first on either side. This will help line up the
other holes.
Figure 8: Handrail attachment
3. Pull the cable connector through the large hole in the left upright support and
attach it to the data port on the base unit frame.
Note: You will hear a click when it is fully connected.
Figure 9: Cable connection to lower board
