20 Assembling and Maintaining the RBK 615 Recumbent Exercise Bike
Required Tools
6 mm hex wrench
10 mm hex wrench
⁵₃₂-inch hex wrench
13 mm open-end, box, or socket wrench
14 mm open-end, box, or socket wrench
#2 Phillips screwdriver
Wire cutter
Fish tape
Installing the Stabilizers
The two stabilizers containing the feet of the bike are
detached for shipment. Before performing any other assembly
tasks, bolt the stabilizers onto the main frame of the bike.
Note: The front stabilizer includes two wheels to assist in
positioning the bike.
To install the stabilizers:
1. Place the rear stabilizer underneath the bracket at the
rear of the bike.

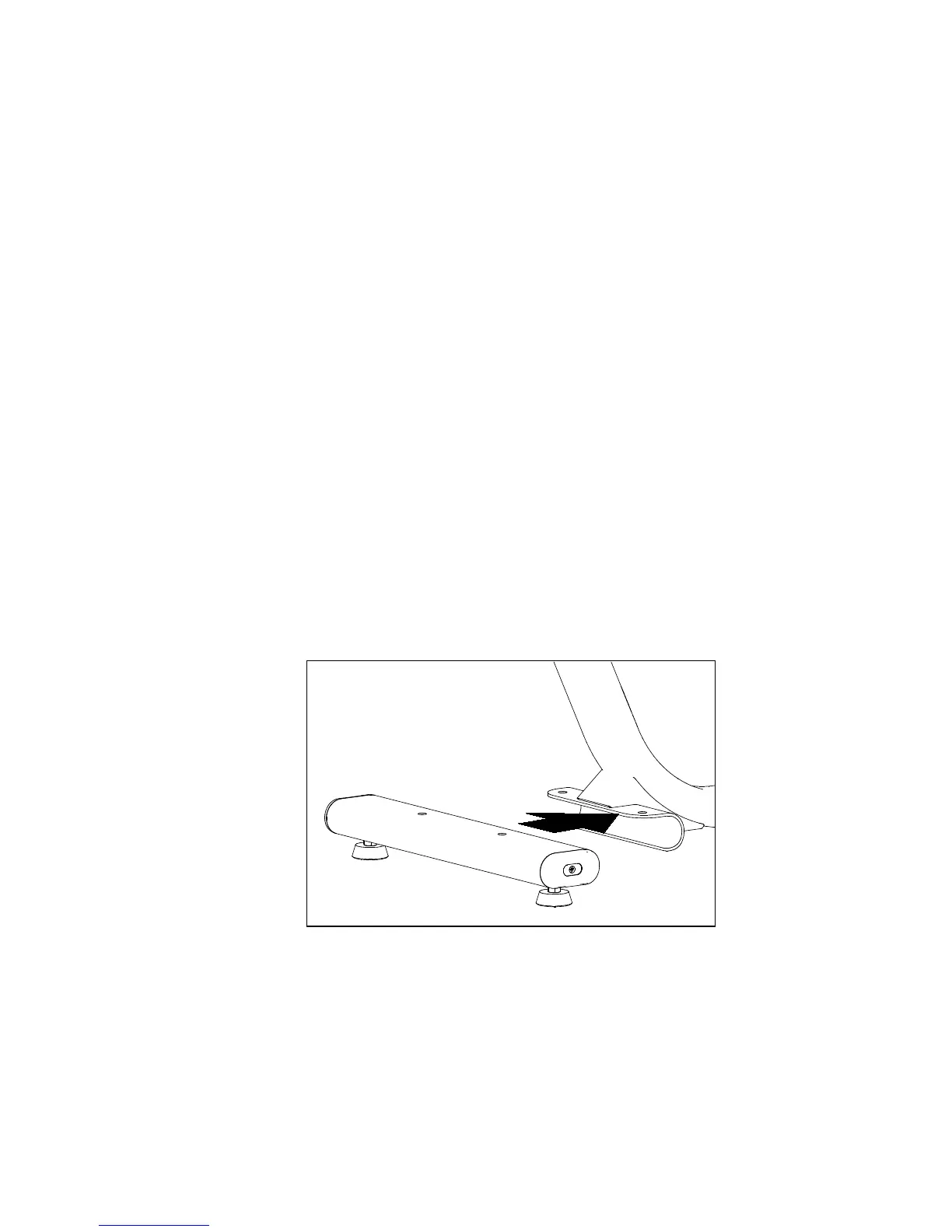

Figure 2: Rear stabilizer installation
