©2019 Precor Inc. | Diverging Lat Pulldown RSL 314 | Assembly Guide
13
Image Hardware Instructions
1 Snap the lower pulley shroud onto the lower front shroud . Place
the lower front shroud with pulley cover into frame and hook on to but-
tons.
2 1 M6 x 15 mm SHCS
Tool: Hex wrench, 4 mm
Secure lower pulley shroud.
3 Place the lower rear shroud onto the frame. Raise it enough to hook
over buttons.
4 Install the rear middle shroud . Slide it over the triangular tabs of the
lower shroud and hook it onto middle buttons.
Repeat for the front middle shrouds .
5 Install the upper rear and front shrouds . Ensure to hook them
over the buttons and spacers.
6 2 M10 x 40 mm SHCS
Tools: Hex wrench, 8 mm
Torque wrench
Place shroud crown on top and secure. Recommended bolt torque
is 25 ft-lb (34 N-m).
7 Securely snap top tray into place.

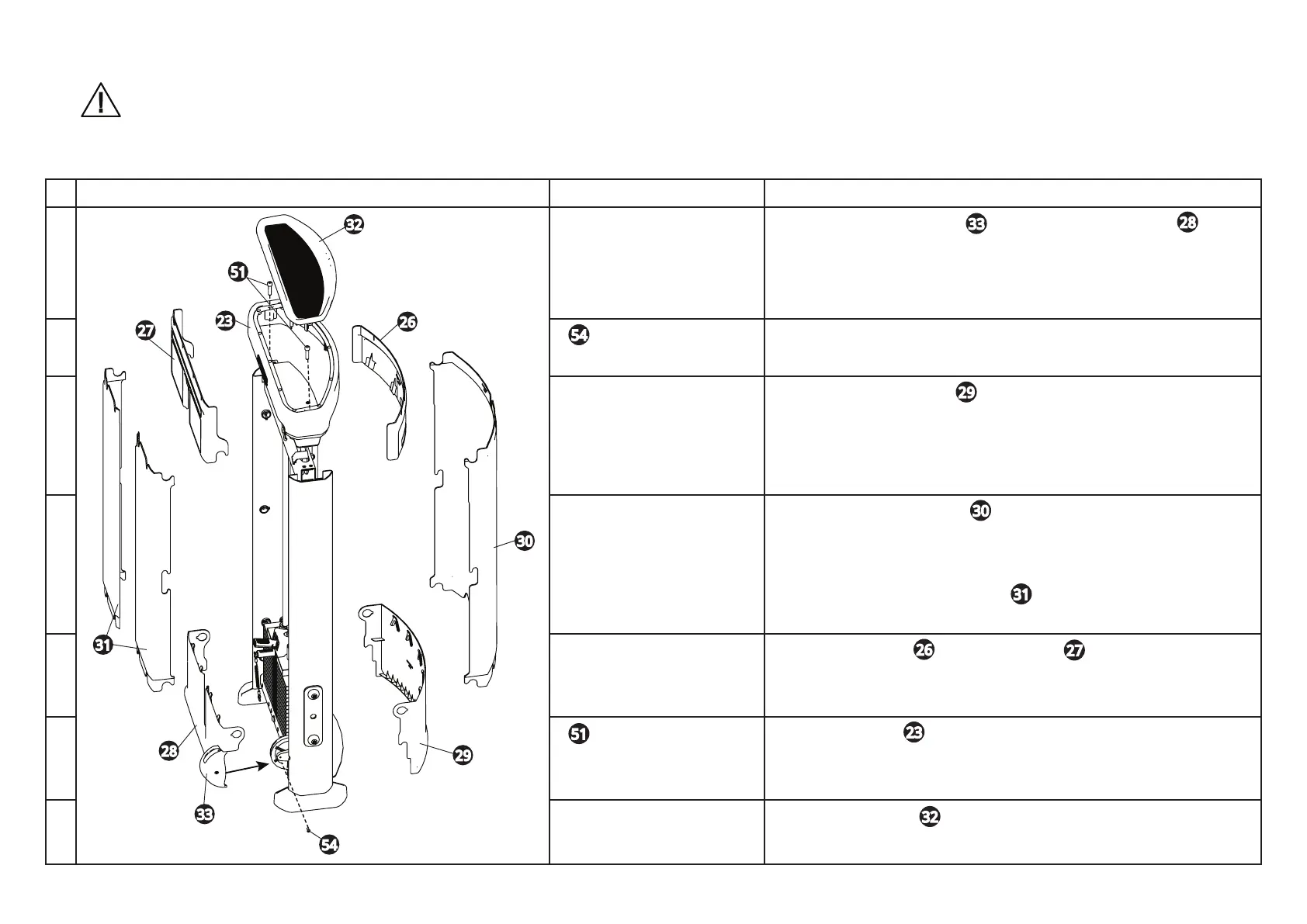

Install the Shroud
23
31
51
54
23
33
28
29
30
31
27
26
51
32
IMPORTANT
Before installing the shroud, ensure that cable connections are correct and cables move smooth through their paths. If they do not,
STOP and adjust cable and routing. In addition, ensure all fasteners (including those preinstalled) are tightened appropriately.
Note The location of the lower pulley cover will vary depending on the model.
