Precor Resolute RSL 314 User Manual

©2019 Precor Inc. | Diverging Lat Pulldown RSL 314 | Assembly Guide
9

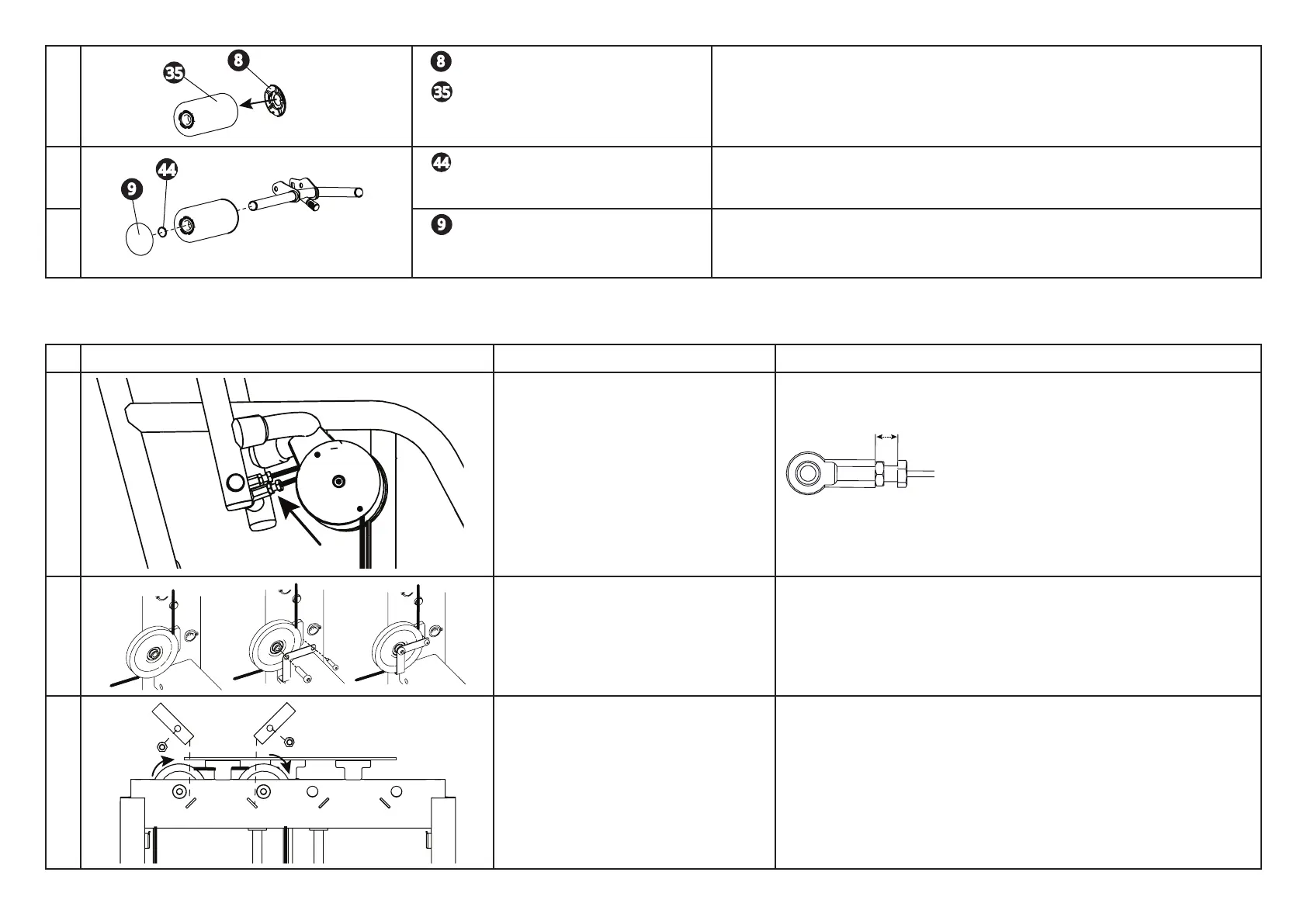

Image Hardware Instructions
1 Tools: Two open end wrenches, 19 mm Have assistant lift both arms and secure cables to arms. Hold rod end
and tighten the nut. Maximum distance is 25 mm.
2 Tools: Hex wrench, 8 mm
Hex wrench, 4 mm
To route the cable around the lower pulley on the weight stack tower,
remove the cable retainer. Route the cable around the pulley and then
replace the cable retainer.
3 Tools: Hex wrench, 8 mm
Open-end wrench, 19 mm
Torque wrench
To route the cable to the upper pulleys of weight stack tower, remove
the cable retainers, route the cables, and replace the retainers. Tighten
to 50 ft-lb (67 N-m) of torque.
Route the Cable
6 2 roller pad cap rings
2 roller pads
Snap cap rings on to roller pads.
7 2 retaining rings
Tool: Retaining ring pliers
Slide roller pads with cap rings onto thigh bar shafts. Secure roller pads.
8 2 roller pad caps Snap on roller pad caps on to each roller pad.
8
35
9
44
35
8
9
44
