3. Use a crank puller (recommended Park Tool CCP-222 to pull the crank arm from the
bottom bracket bearing axle and remove.
4. Remove the bottom bracket cover.
Note:Early production bikes may not include the bottom bracket cover, see service
bulletin SB.SBK.20160825 for information.
5. Remove the bottom bracket axle nut. Clean the axle nut and the bottom bracket axle
threads. Retain fastener hardware for installation.
6. Repeat steps to remove the right crank arm.
Installation instructions:
1. Apply a light coat of multipurpose oil to the axle nut threads and install onto the bottom
bracket axle. Fully tighten the axle nut.
42
4 Replacement Procedures

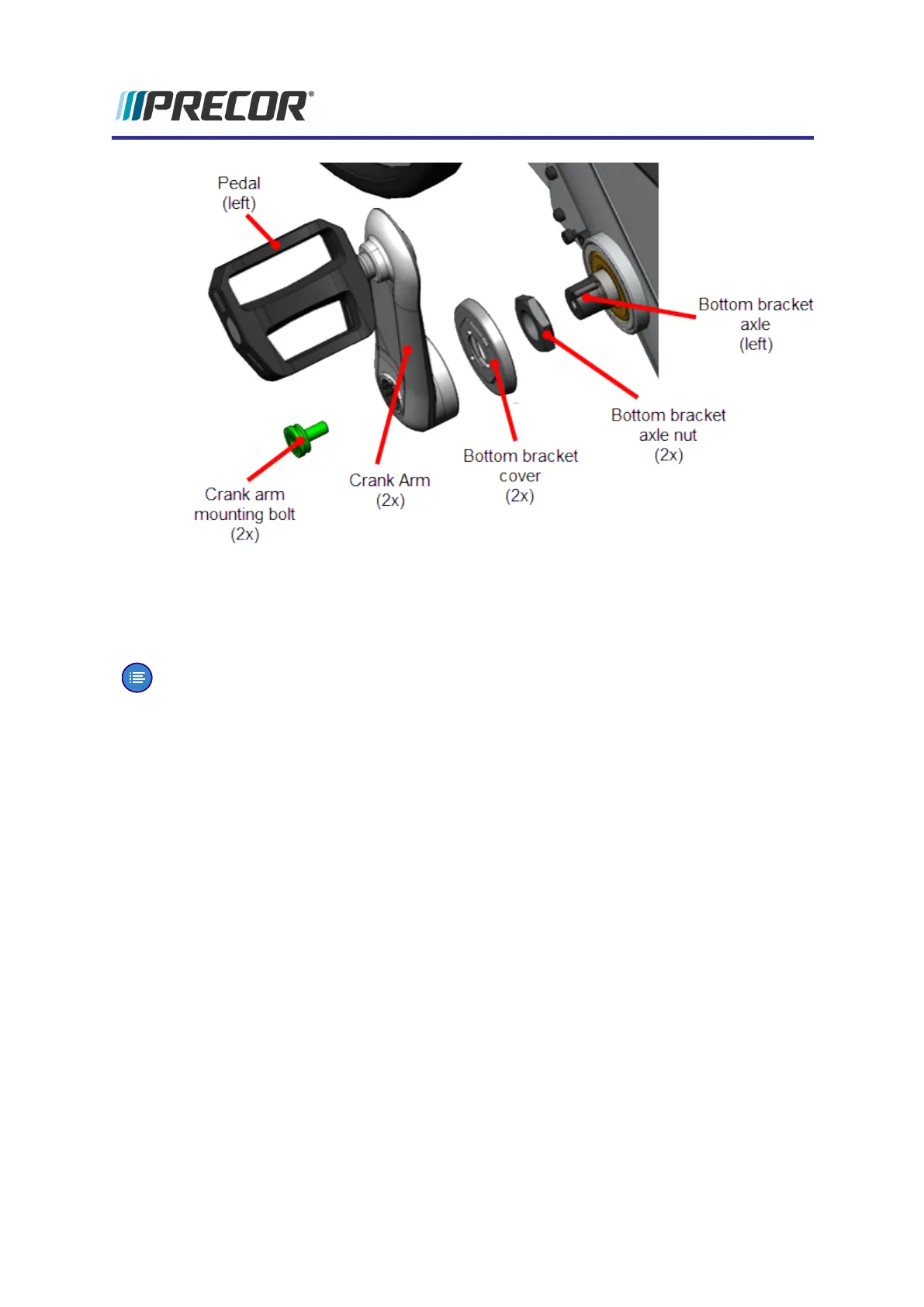

Crank Arm Replacement
