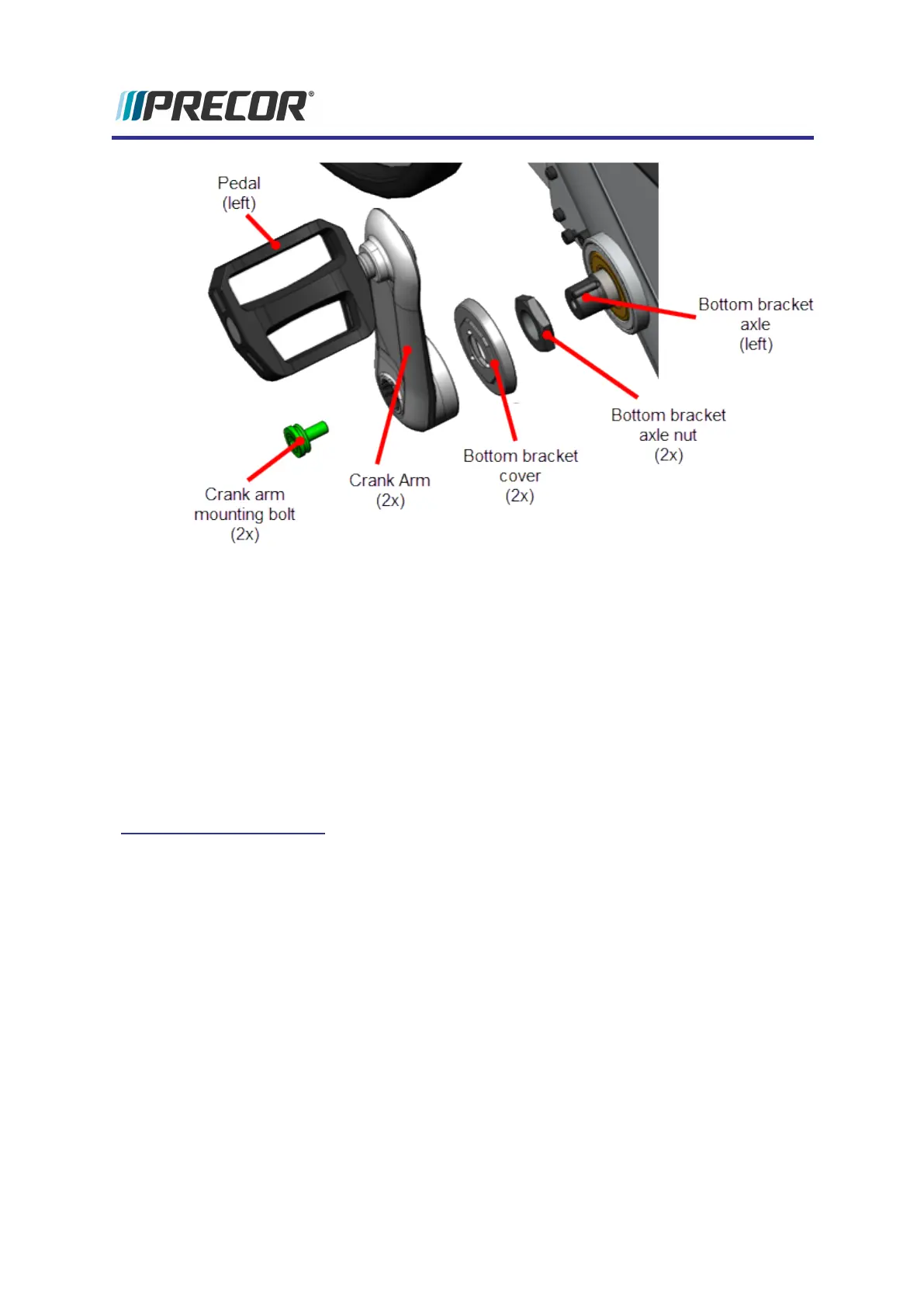

2. Install bottom bracket cover onto the bottom bracket axle over the axle nut.
3. Install the left crank arm onto the left side bottom bracket axle. Seat the crank arm by
using a rubber mallet to lightly tap the crank arm onto the bottom bracket axle.
4. Apply Loctite 243 to the 8 mm hex key crank arm mounting bolt, torque to 33 ft-lb (45
N•m).
5. Repeat installation steps to install the right crank arm.
6. Install the left and right pedals, see "Pedal Replacement" on page36.
7. Verify the bike operation and return to service, see "Operation Verification" on page7.
See Also
"Pedal Replacement" on page36
"Operation Verification" on page7
43
