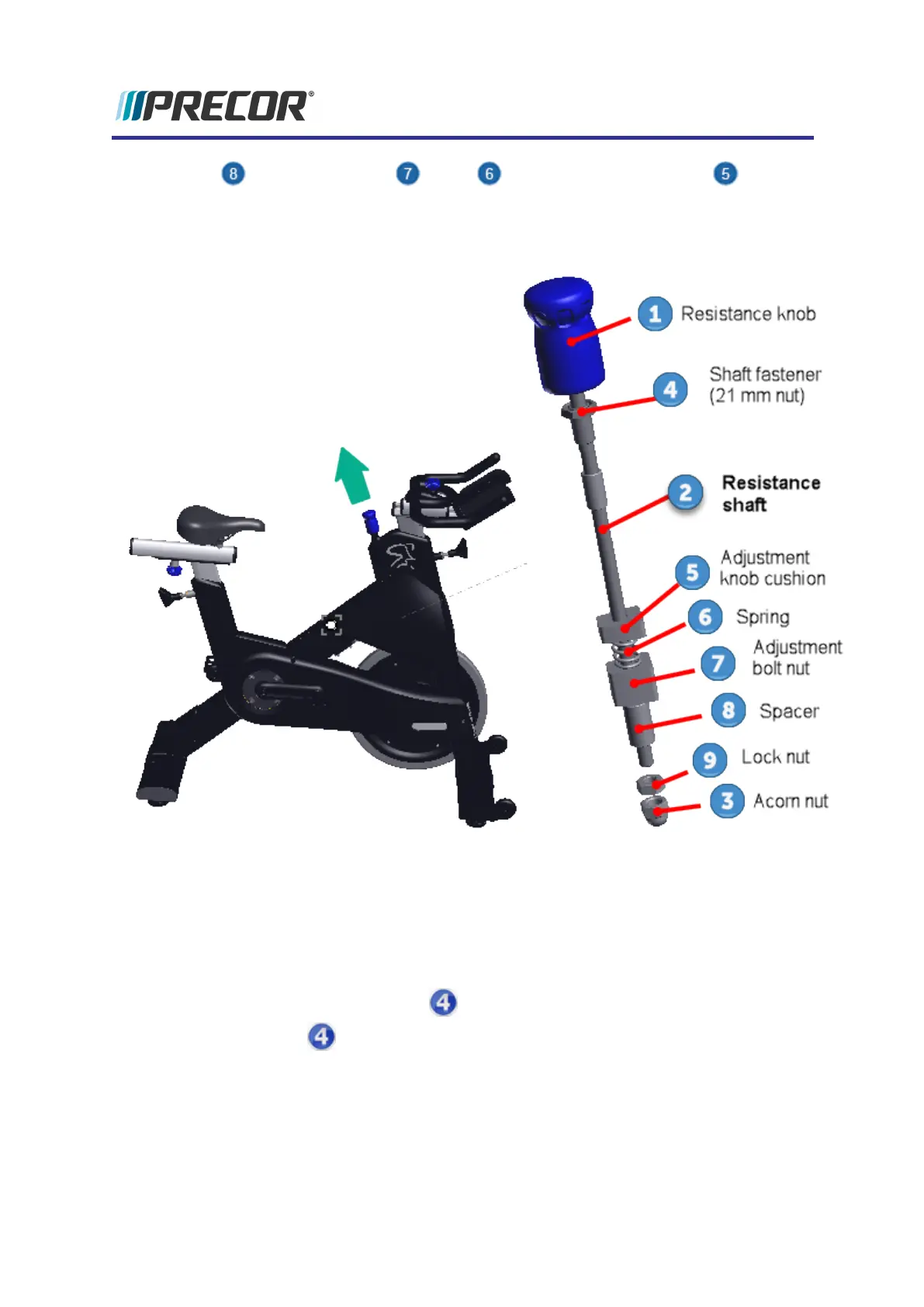

spacer , adjustment bolt nut , spring , or adjustment knob cushion . Retain
fastener hardware for installation.
Installation Instructions
1. Reinstall the resistance shaft into the frame while carefully turning the knob in a clock-
wise direction. It is easy to cross thread the fine resistance shaft threads while installing.
2. Raise the resistance knob (turn counter-clockwise) enough to allow room to hand
thread the 21 mm shaft fastener nut onto the frame. Then use a 21 mm wrench to
fully tighten the nut .
46
4 Replacement Procedures
Resistance Knob Replacement
