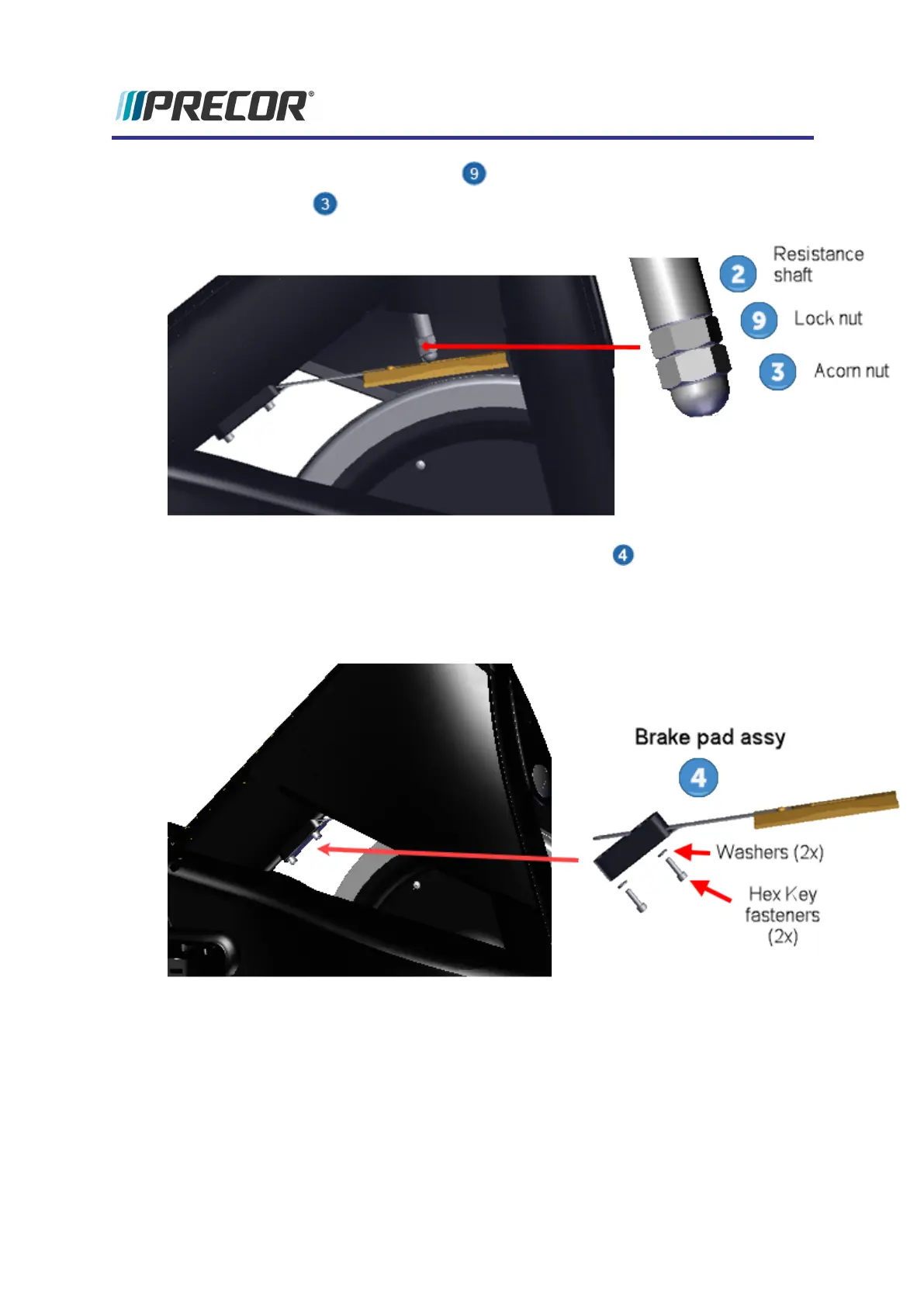

wrench to fully tighten the lock nut against the acorn nut. It's important to lock
the acorn nut in place to keep it from loosening during bike workouts.
5.
Pull up the resistance knob and slide the brake pad assembly into position aligning
the frame mounting bolt inserts. Secure using the two 5 mm hex hey mounting bolts (2x)
and washers (2x). Make sure that the brake pad is centered on the flywheel rim and fully
tighten.
6. Verify the resistance control and stop brake functions work properly.
a. While riding the bike, turn the resistance knob from minimum to maximum and
verify the pedal resistance changes as expected.
b. While riding the bike, press down on the resistance knob and verify that the fly-
wheel and pedals quickly stop.
48
4 Replacement Procedures
Resistance Knob Replacement
