16 Assembling and Maintaining the UBK 815 Upright Exercise Bike
Installing the Upright Support and Cables
Before you begin this procedure, retrieve the cables for the
console that you plan to install on this exercise bike, or for any
Cardio TheaterĀ® equipment that you plan to install on the
console.
Note: If you are not installing Cardio Theater equipment on
this bike, you do not need to complete the first procedure in
this section; skip ahead to the following procedure. If you are
installing Cardio Theater equipment on the bike, you will need
to perform both procedures. You will need the help of another
person to complete the procedures.
To prepare the bike for installation of the upright support:
1. Retrieve the cables from the box in which the console was
shipped.
2. Using a #2 Phillips screwdriver, remove the two #10 x
1-inch self-tapping screws holding the rear cover in place.
Pull the upright rear cover back to remove it, then set it
aside.

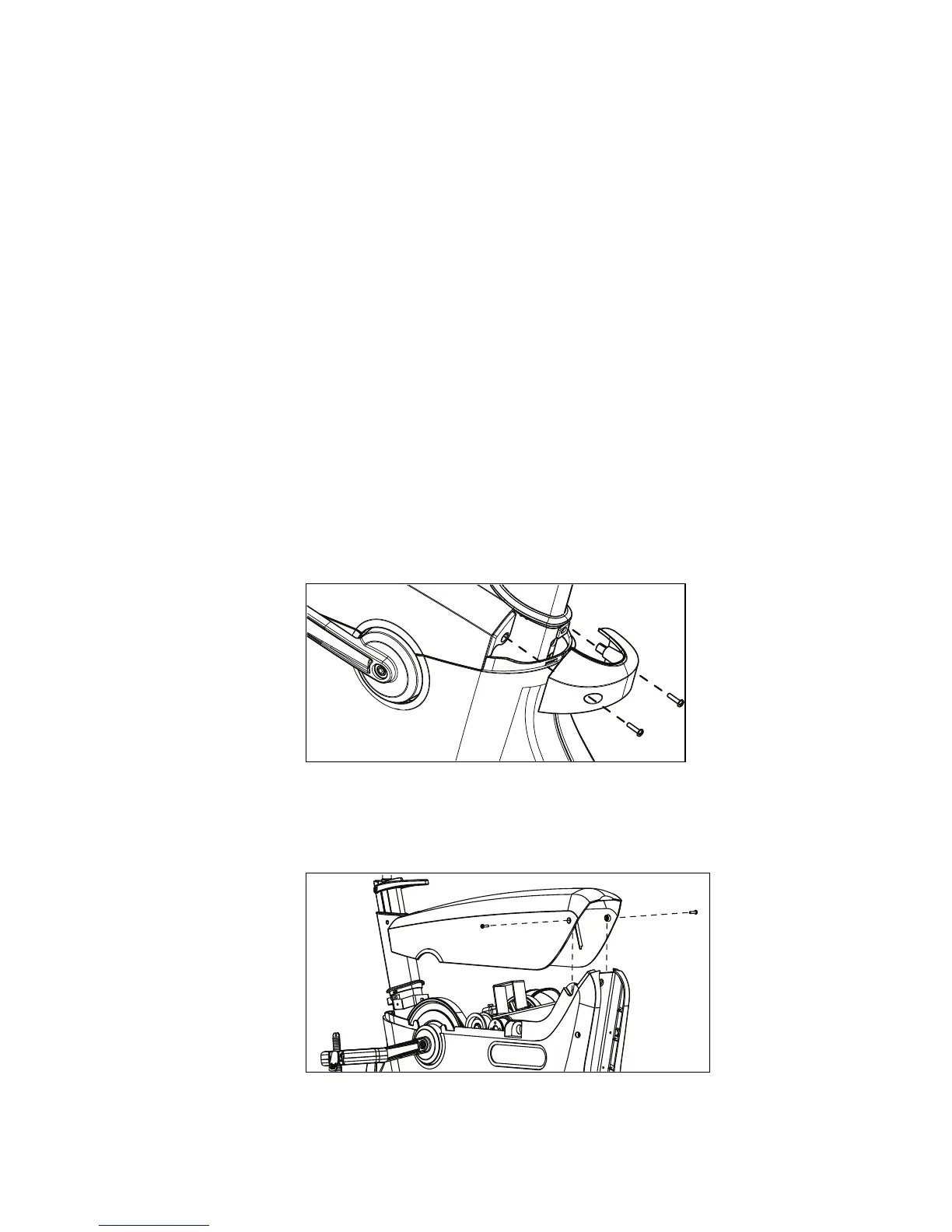

Figure 3: Rear cover removal
3. Remove the two #10 x 1-inch self-tapping screws holding
the top cover in place, then lift it off.
Figure 4: Top cover removal
