26 Assembling and Maintaining the UBK 815 Upright Exercise Bike
Important: If you are installing a Cardio Theater screen or
receiver, complete the Cardio Theater installation before you
reattach the console’s rear cover.
7. Lower the rear cover over the mounting bracket so that
the upright support extends through the gap in the cover.

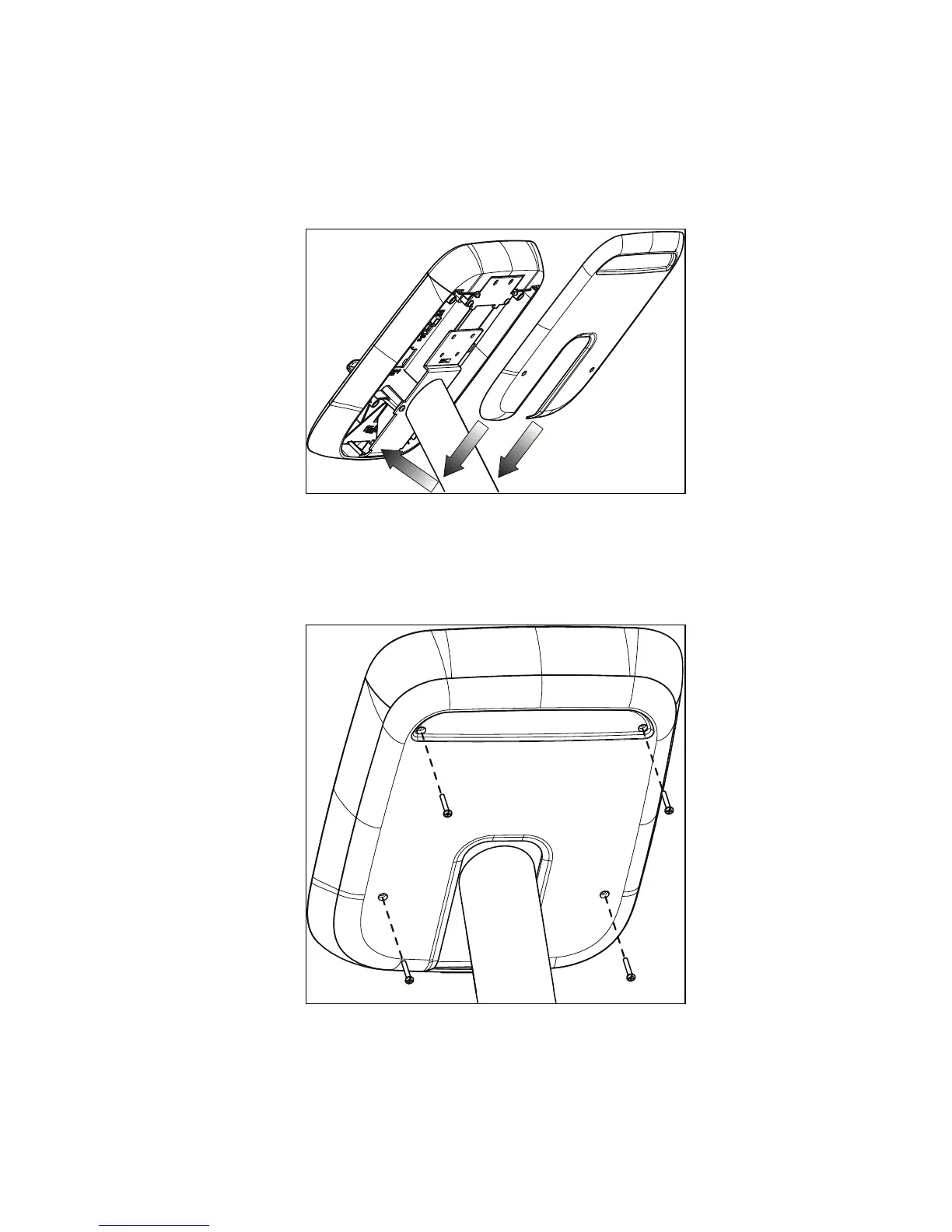

Figure 12: Rear cover position
8. Position the back cover and attach the four 1-inch
panhead machine screws, then tighten the screws
completely using a #2 Phillips screwdriver.
Figure 13: Reattaching rear cover screws
