Page 13K&(%$*4.8"4,7%P'*#$"&8#J%/7*,#*%4,77%QRSSSRSTTRUVWV1ITEM 62879
F=K6EBCX6I=E@C>D=@>E6>=><6 F6E;X
I*,##*5+7H

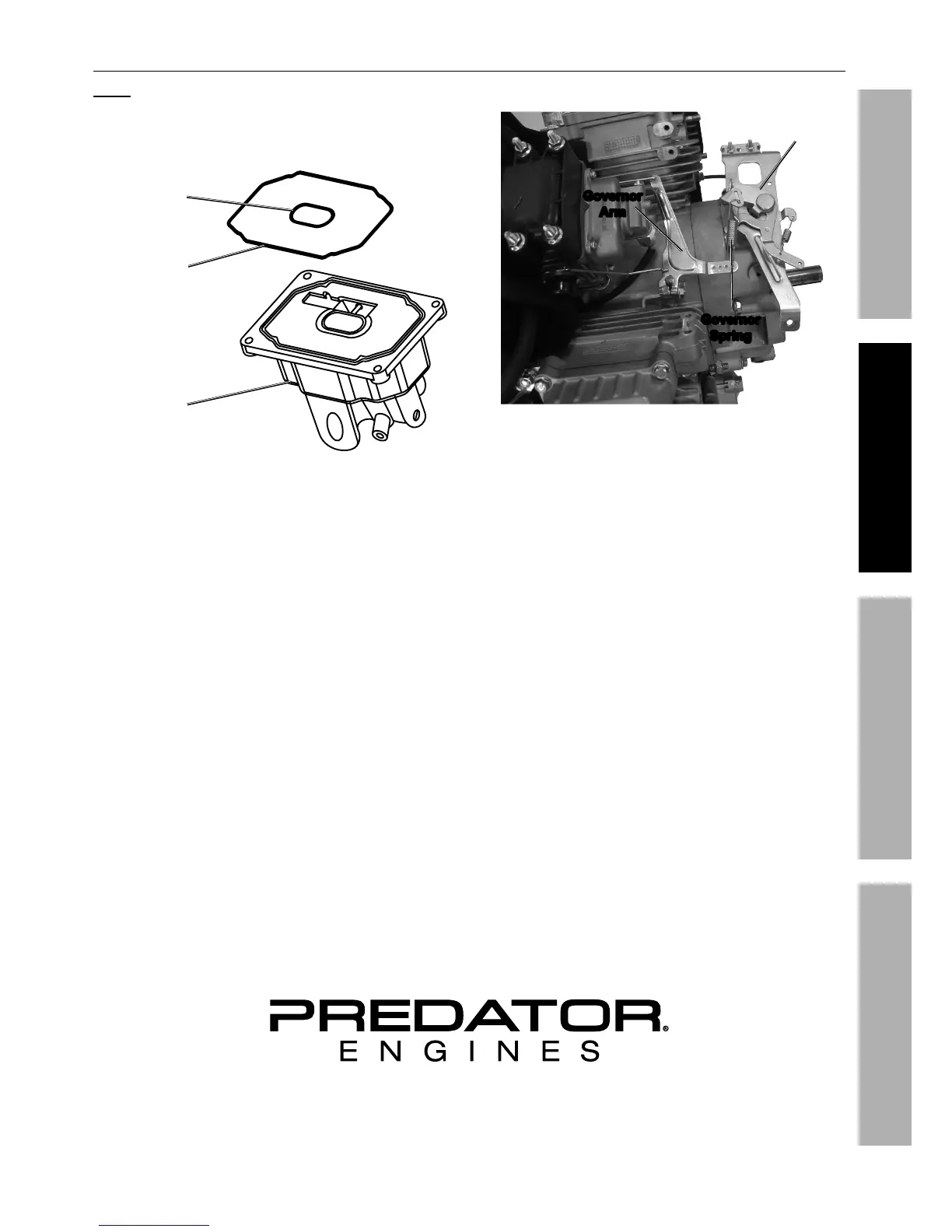

>&$*- Reassembly step references shown in brackets.
1. Replace the Outer and Inner Bowl O-rings (B1, B2)
with the replacements from the altitude kit.
Do not reuse existing O-rings.
<,(+'(*$&(%
[&)7
C'$*(%[&)7%
CR("83
@88*(%[&)7%
CR("83
K"3'(*%E-%%I*/7,4*%[&)7%CR("83#
2. Assemble the Carburetor Bowl using
four Carburetor Bowl Bolts (11). Torque
the Fuel Drain Bolt to 4.4-6.6 ft.lb.
3. Reattach Governor Spring to Governor Arm hole D.
E.(&$$7*%
=##*5+7H
Z&M*(8&(%
F/("83
Z&M*(8&(%
=(5
K"3'(*%;
4. Rehook the Choke Rod (10) to
the Throttle Assembly (6).
5. Reattach the Exhaust Gasket (5) and re-mount the
Muffler (3) to the Engine using M8 x 20 Bolts (4)
6. Return the Engine to its feet.
7. Once all connections are secure,
open fuel valve/unclamp fuel hose.
8. Wipe up any spilled fuel and allow excess
to evaporate before starting engine.
To prevent FIRE, do not start the engine
while the smell of fuel hangs in the air.
