6. CO Sensor Light: Flashing red light indicates
dangerous levels of carbon monoxide gas
have built up. Flashing yellow light indicates
a carbon monoxide sensor malfunction.
Refer to Carbon Monoxide Shutoff on
page 25 for further information.

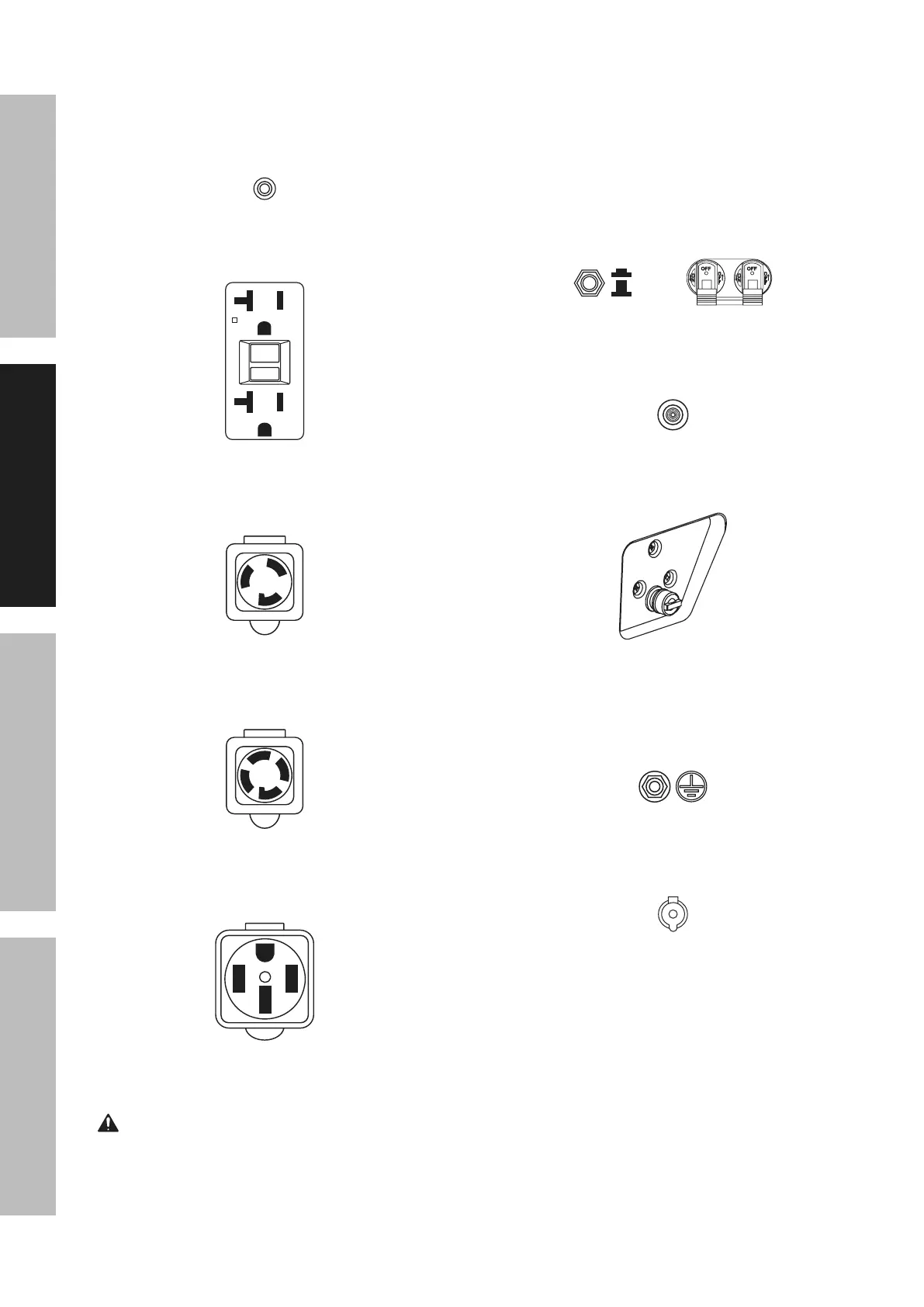

7. AC Receptacles: The Generator contains several
AC Receptacles to power tools and equipment.
a.
RESET
TEST
RESET
TEST
3-Prong, duplex
120 volt GFCI receptacle
(NEMA 5-20R)
b. 3-Prong, twistlock,
120 volt 30 A receptacle
(NEMA L5-30R)
c. 4-Prong, twistlock,
120 / 240 volt 30 A receptacle
(NEMA L14-30R)
d. 4-Prong, 120 / 240 volt,
50 A receptacle
(NEMA 14-50R)
WARNING! TO PREVENT SERIOUS INJURY:
Connect tools and equipment only to the Receptacle
(120 volt or 240 volt) that is compatible with the
electrical characteristics and rated capacities
of the tools and equipment being used.
8. Circuit Breakers: The circuit breaker protects
the Generator from overloading. The rating of
the breaker and the load it protects are marked
near the breaker. Should any of the Circuit
Breakers trip, the Generator will stop the electricity
output. If this happens, unplug all loads from
the Generator. Then, turn the tripped Circuit
Breaker to ON and re-attach loads gradually.
Note: For push-type Circuit Breakers allow a
few minutes for cool-down before resetting.
ON
OFF
9. Low Oil Alarm: If the Engine oil level is too
low, the LOW OIL ALARM light turns on and
the Engine will automatically shut off.
10. LPG/Propane and Natural Gas Connector:
Used to connect LPG / NG hose to Generator.
11. Grounding Terminal: Prior to each use, set
up the ground wire (not included) connection to
the Grounding Terminal to properly ground the
Generator. Refer to Grounding on page 12
for instructions on grounding the Generator.
12. Battery Charging Port: Used to charge
the 12 VDC Generator Battery using the
provided Battery Charger / Maintainer.
