EST100/EST200

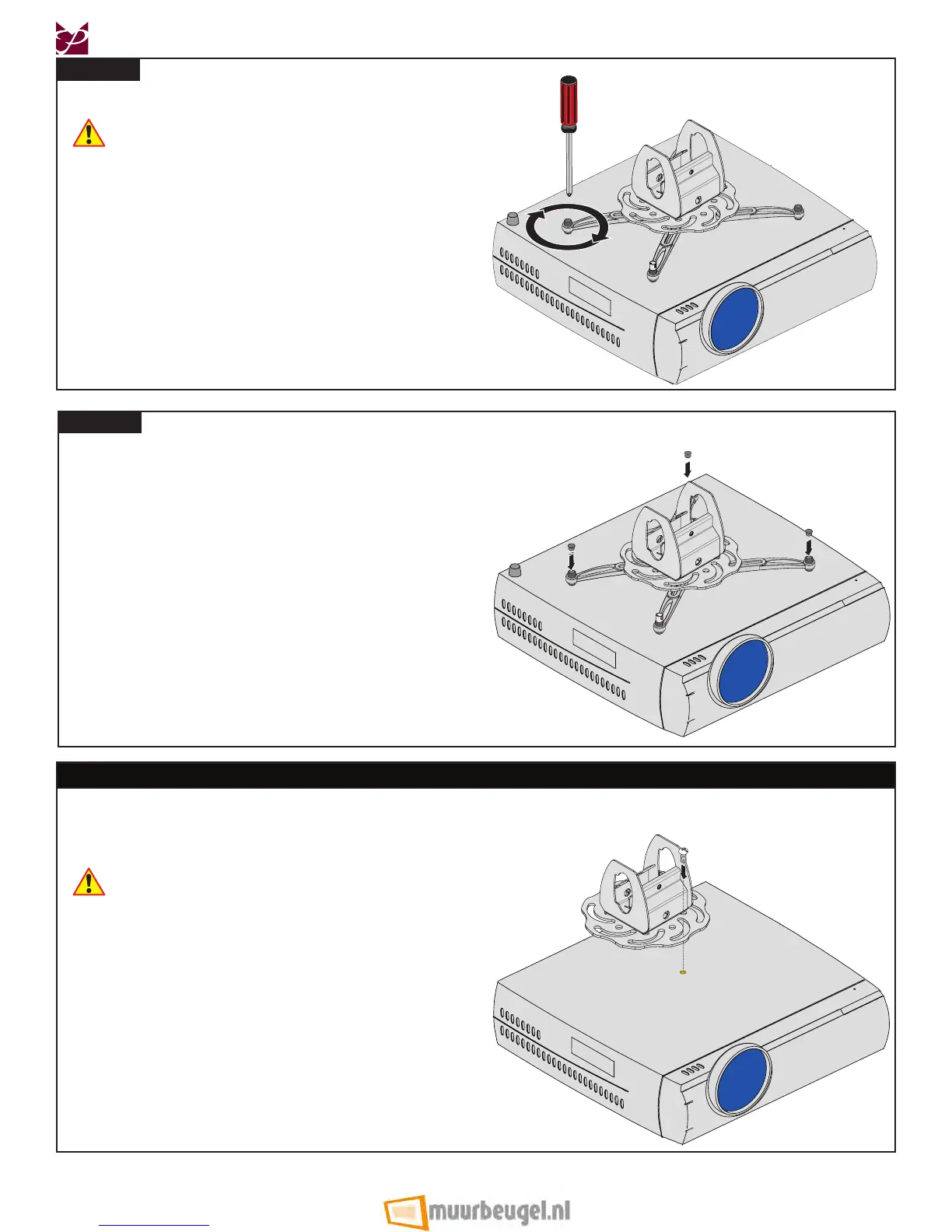

Step 7
Insert one (1) Barrel Cap (except for the security
barrel) into the end of each leveling barrel.
Go to the “Attaching the Mount Carriage to the
Projector Arm” section on page 15.
Step 6
Tighten the mounting screws which secures the
mounting legs to the projector.
Do not overtighten the mounting screws.
Single Mounting Point Installation
A single ¼-20 x
5
/16″ screw must be used to attach the
mount carriage to the projector if your projector has only
one mounting point.
Do not overtighten the ¼-20 x
5
/16″ screw.
Proceed to the “Attaching the Mount Carriage to the
Projector Arm” section on page 15.
