Premisys MP - Page 19

19
Packaged and Split Rooftop Ventilator
© 2021 Mitsubishi Electric US, Inc.
PremiSys
OU
DOAS
A
42' Total Piping Length
1/2" Liquid Line
Example: MPF-1-**-**-96 DOAS with PUHY-P96T/YKMU Outdoor Unit
TOTAL
additional
refrigerant
charge
=
Total length of liquid
pipe sized 12.70
[
1
⁄2 in.]
+
Additional Charge for
OU Unit
+
DOAS
ChargeOutdoor Unit Amount
PUHY-P96T/YKMU 2 kg [71 oz]
(m) x 0.12 (kg/m)
(ft.) x 1.3 [oz/ft.]
PUHY-P144T/YKMU 8 kg [283 oz]
oz
PUHY-P192T/YSKMU 8 kg [283 oz]
PUHY-P240T/YSKMU 16 kg [566 oz]
TOTAL
additional
refrigerant
charge
=
42’ x 1.30 [oz/ft.]
55 oz
+ 71 oz + 179 oz
305 oz

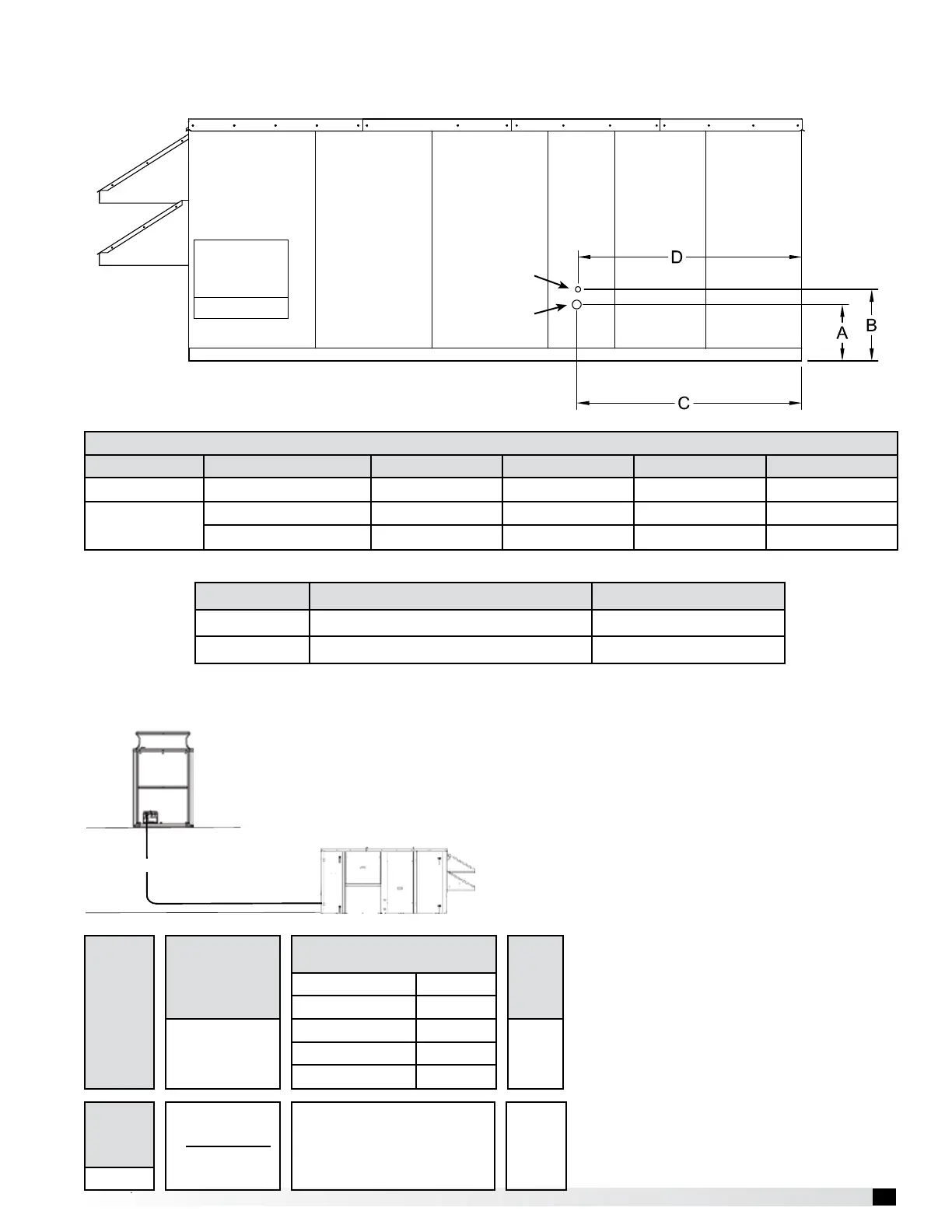

Dimensions mm (in.)
Housing Size Coil Size A B C D
MPF-1-1
40 x 35 345 (13.57) 438 (17.23) 1377 (54.21) 1369 (53.90)
MPF-2-1
32 x 45 658 (25.91) 627 (24.68) 1636 (60.46) 1472 (57.97)
50 x 45 388 (15.28) 449 (17.66) 1455 (57.27) 1445 (56.88)
Split DX Piping Connections
MPF-1-**-**-96, 144 - MPF-2-**-**-144 MPF-2-**-**-192, 240
Suction Pipe ø28.58 (1
1
⁄8) ø34.93 (1
3
⁄8)
Liquid Pipe ø12.7(
1
⁄2) ø15.88 (
5
⁄8)
Measurement in mm (in.)
Liquid Line
Suction Line
