PRESONUS MP20 - Controls and Connections; Front Panel Layout

2 CONTROLS & CONNECTIONS
8
2.1 FRONT PANEL BASI C LAYOUT
Notice that the front panel is divided into two identical Preamplifier sections -
Channel One and Channel Two - plus a Master section.

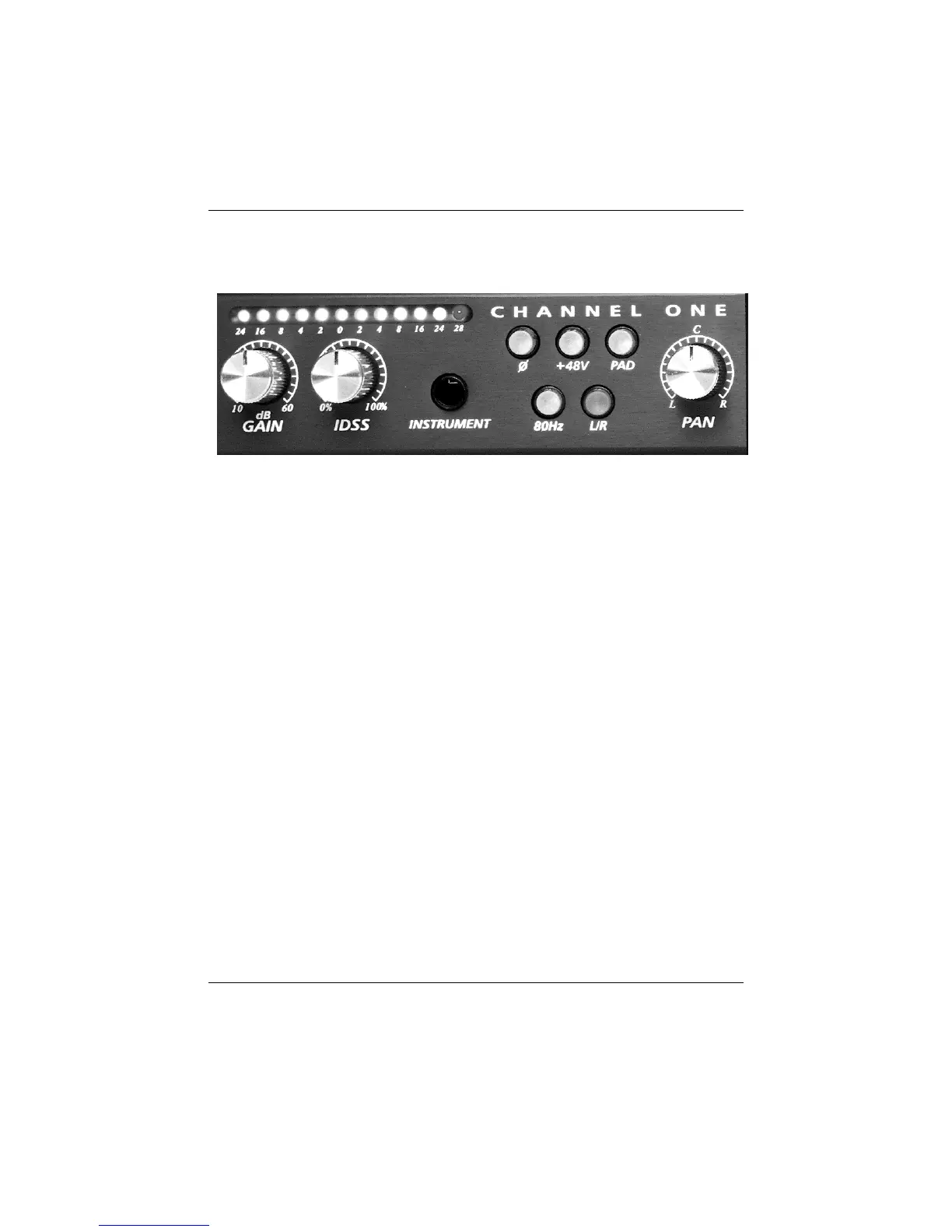

Channel One and Channel Two are the two microphone preamplifier channels
of the MP20.
Both preamp channels contain:
? 80 Hz Filter
? L/R Assign
? Phantom Power Switch
? Phase Reverse Switch
? -20db Pad
? IDSS Control
? Gain Control
? Pan
