Installation Instructions
This appliance is factory set for NATURAL GAS at 20mbar ONLY.
The hob is suitable for conversion to Liquid Petroleum Gas (BUTANE (G30) at 28-30 mbar
and PROPANE (G31) at 37 mbar by the following procedure using the kit supplied.
If you require a replacement kit, please contact our spares department on 0870 458 9695
and give the model number from the databadge on your appliance.
l Replace the injectors with the corresponding injector from the table on page
below.

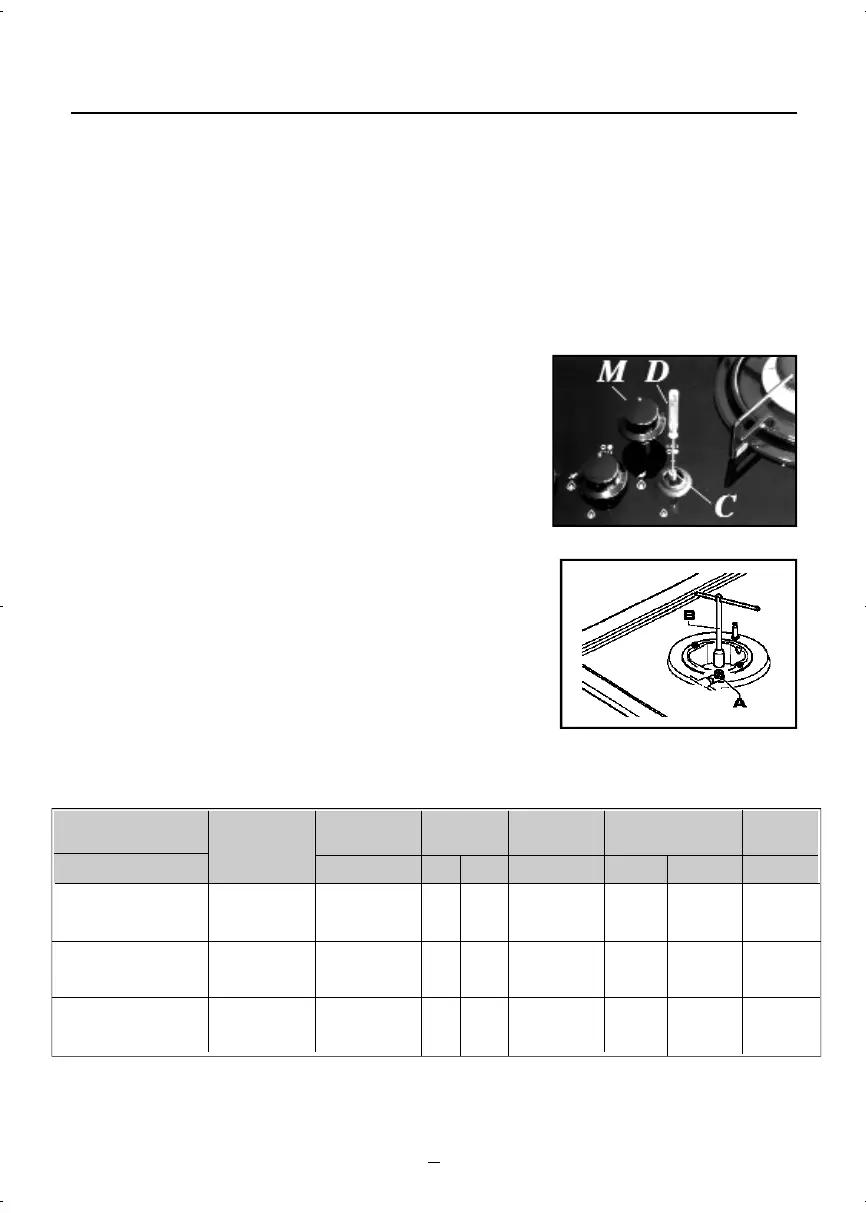

First remove the burner caps and rings and with a socket
spanner “B”, unscrew injector “A” (see fig. 7).
lThe adjustment of the reduced rate position is as
follows (fig. 8):
light the burner and turn the knob fully anti-clockwise to
reduced rate position.
Remove the knob “M” which is simply inserted onto tap
stem.
Insert a small screwdriver “D” into the top shaft “C” and
turn the bypass screw left or right until flame of the
burner is correctly regulated at the low position.
l M a k e sure that when turning quickly from “Full on”
position to reduced rate position that the burner does not
extinguish.
8
FIG. 7
FIG. 8
INJECTOR REPLACEMENT TABLE
B U T A N E 28 - 30 1 2 7 6 5 5 0 0 1 7 5 0 3 2
S e m i - r a p i d
P R O P A N E 3 7 1 2 5 6 5 5 0 0 1 7 5 0 3 2
( m e d i u m )
N A T U R A L 2 0 1 6 7 97 Z 5 0 0 1 7 5 0 3 2
B U T A N E 28 - 30 2 0 4 8 3 7 5 0 2 5 0 0 4 1
Rapid (large) P R O P A N E 3 7 2 0 0 8 3 7 5 0 2 5 0 0 4 1
N A T U R A L 2 0 2 6 7 117 S 7 5 0 2 5 0 0 4 1
B U T A N E 28 - 30 7 3 5 0 4 0 0 1 0 0 0 3 0
A u x i l i a r y P R O P A N E 3 7 7 1 5 0 4 0 0 1 0 0 0 3 0
( s m a l l ) N A T U R A L 2 0 9 5 72 X 4 0 0 1 0 0 0 3 0
BURNERS
D E S C R I P T I O N
GAS
NORMAL
PRESSURE
NORMAL
RATE
INJECTOR
DIAMETER
BY
PASS
NOMINAL HEAT
INPUT (W)
m b a r g / h l / h 1/100 mm M I N . M A X . 1/100 mm
