Prestige PR1-DO - OVEN FITTING OUT; Assembling Oven Racks and Shelves

16
OVEN FITTING OUT

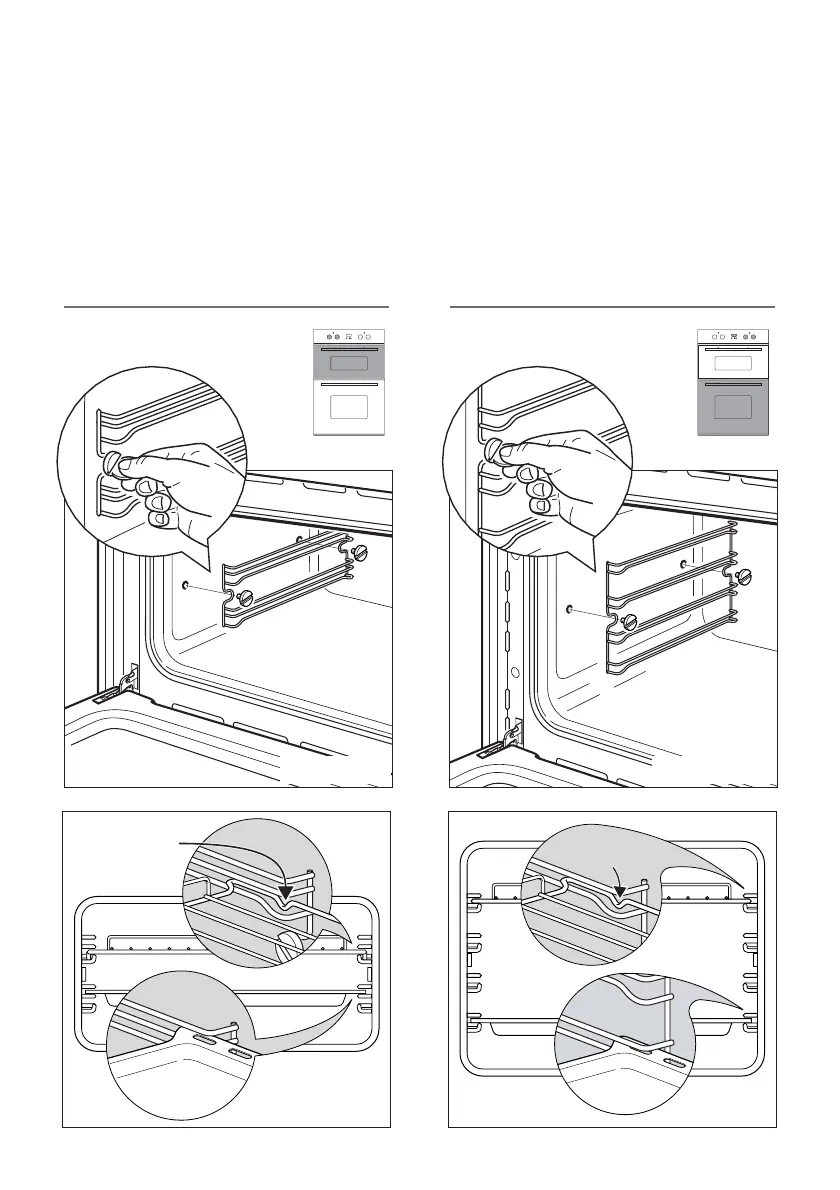

• Assemble the wire racks to the oven walls using the 2 screws (Fig. 5.1 - 5.2).
• Slide in, on the guides, the shelf and the tray (fig. 5.3 - 5.4).
The shelf must be fitted so that the safety catch, which stops it sliding out, faces the
inside of the oven.
• To dismantle, operate in reverse order.
BOTTOM MAIN OVENTOP OVEN
Fig. 5.1 Fig. 5.2
Safety catch
Safety catch
Fig. 5.4
Fig. 5.3
