Prestige PR1-DO - CONNECTING THE DOUBLE OVEN MAINS CABLE; Mains Cable Connection Procedure

22
CONNECTING THE DOUBLE OVEN MAINS CABLE
– Unscrew the screws A securing the cover plate B behind the oven (fig. 7.1).
– Remove the cover plate B.
– Remove the screws C from the cable clamp (fig. 7.2).
– Insert the mains cable (type H05RR-F or H05VV-F - 3x2,5 mm
2
section) into the cable
protector P.
– Connect the phase and earth cables to the mains terminal connection block D.
EARTH
N NEUTRAL
L LIVE
Attention ! Make sure the wires have been well inserted into the contacts and
have been screwed down well.
– Refit the cable clamp so that it clamps the outer sleeving of the cable, and screw
the screws C.
– Refit the cover plate B and fix it with the screws A.
Green & Yellow
(Earth)
Brown (Live)
Blue (Neutral)
N
L

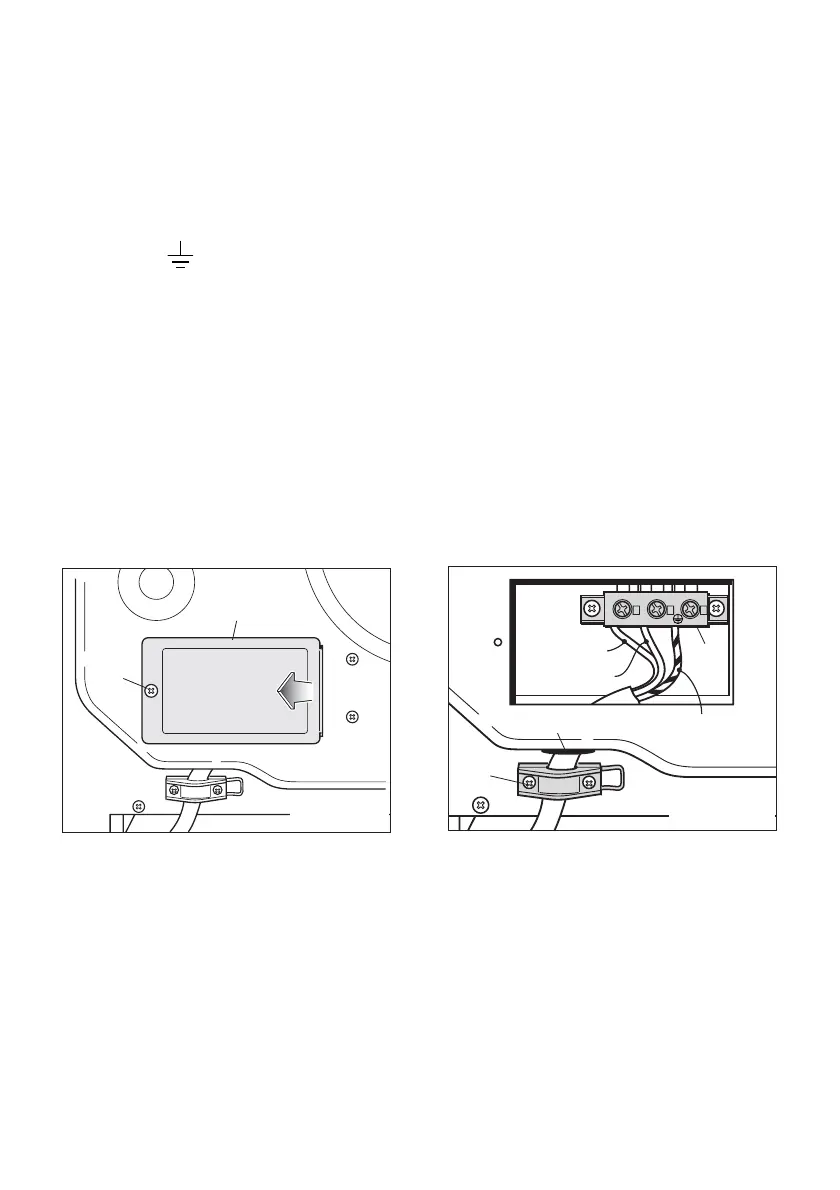

Fig. 7.1
Fig. 7.2
WARNING: This appliance must be earthed
A
C
P
D
B
