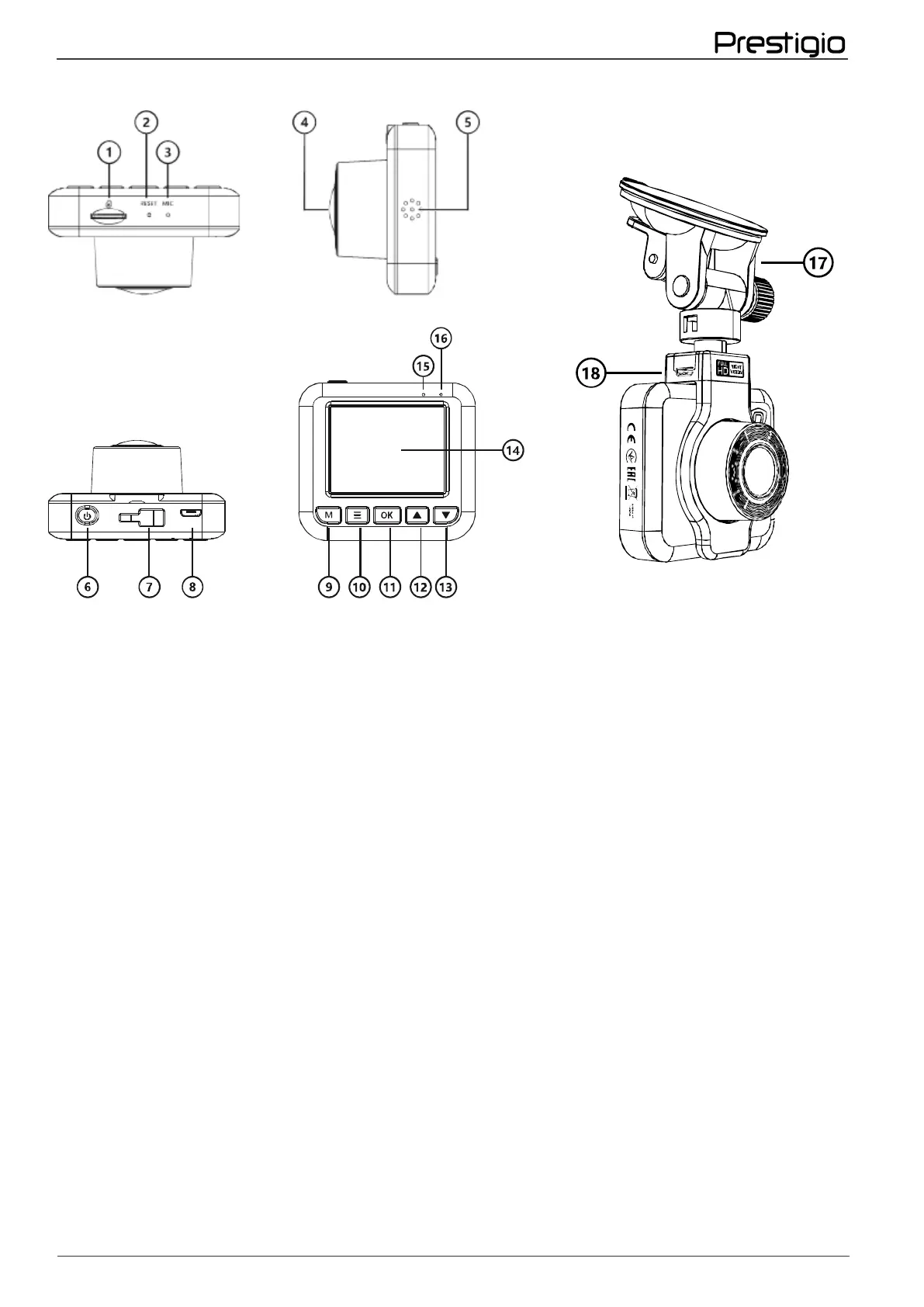

Figure 2 –Components and controls
Components and controls
1. Micro-SD card slot
2. Reset button [RESET]
3. Microphone [MIC]
4. Lens
5. Speaker
6. Power button
7. Connector for holder attachment
8. Micro-USB connector for power connection
9. Mode button [M]
10. Main menu button [≡]
11. Select/Confirm/Pause/Play Video/Photo Button [OK]
12. Move up button [▲]
13. Down Button [▼]
14. LCD display
15. LED device status indicator
16. LED charging mode indicator
17. Holder with suction cup
18. Holder micro-USB connector for power connection
