EXTERIOR OF COACH
1-5
REAR-VIEW MIRRORS
The coach is equipped with flat-type and convex-
type rear-view mirrors. Convex mirrors give a
wide angle view. Objects viewed in convex-type
rear-view mirrors appear smaller and are actually
closer than they appear.
To provide good visibility in cold weather, the
mirrors are equipped with heating elements that
are activated by a rocker switch located on the
L.H. dashboard. Refer to "Controls &
Instruments" section. Thermostats are used to
prevent continuous operation of the heating
elements.
CAUTION: DO NOT ATTACH STICK-ON
TYPE CONVEX MIRROR ACCESSORIES TO
THE HEATED MIRROR GLASS. THIS COULD
IMPEDE UNIFORM HEAT DISTRIBUTION ON
THE MIRROR SURFACE WHICH COULD
BREAK THE MIRROR.
Adjustment
Adjust the side-view mirrors until the side of the
coach is visible. Adjust the flat-type mirror until
the highway is in full view.
Manually Adjusted Mirror

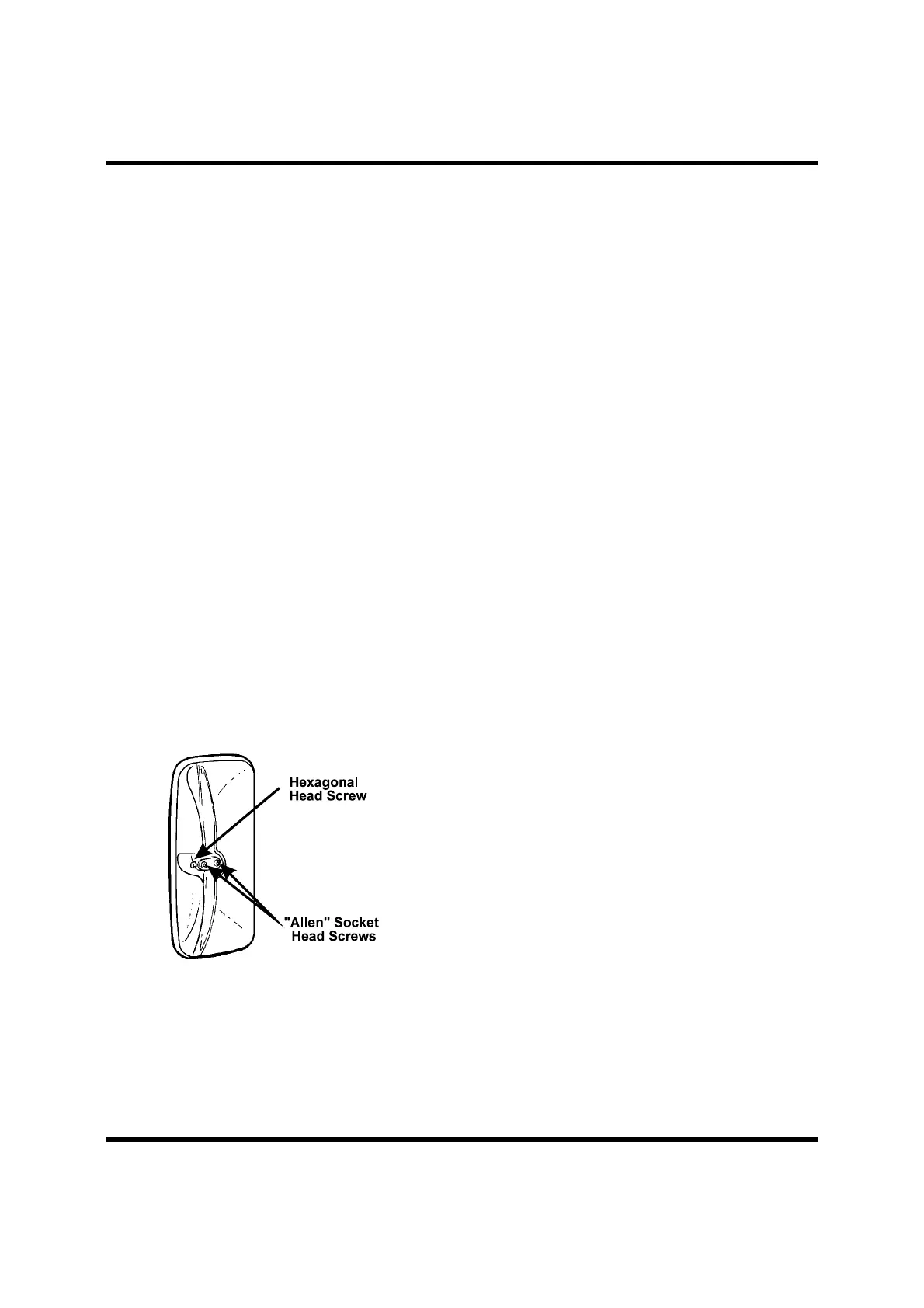

MIRRORS ADJUSTMENT SCREWS OEH3B120
HORIZONTAL ADJUSTMENT: Loosen the two
Allen screws at the rear of the mirror body. Adjust
the mirror to the desired angle, then tighten the
screws.
VERTICAL ADJUSTMENT: Loosen the
hexagonal head screw at the rear of the mirror
body. Adjust the mirror to the desired angle, then
tighten screw.
CAUTION: DO NOT OVER TIGHTEN THE
SCREWS. TIGHTEN UNTIL SNUG.
Electrically Adjusted Mirror
Electrically-adjusted mirrors are adjusted by the
outside mirror control located on the L.H. control
panel. Refer to "Controls & Instruments" section.
Manual adjustment is also possible. Grip the
mirror body and adjust to the desired angle.
NOTE: To adjust mirror horizontally, loosen two
allen screws at the rear of the mirror body. Adjust
the mirror to the desired angle, then tighten
screws.
