EXTERIOR OF COACH
1-2
ENGINE COMPARTMENT
Engine Compartment R.H. Side Door
Provides access to the following:
- Engine compartment rear door release lever
- Fuel filter/water separator (if applicable)
- Power steering fluid reservoir
- Wet (main) air tank drain valve
- External air supply fill valve
- Sump tank filler cap
- A/C Compressor
This door can be locked/unlocked using the
exterior compartment key. Lift up the protector
cover to gain access to the lock. Pull up the door
handle to release the latch, then pull the door
open. To keep the door open, engage the safety
catch on top of the door. Release the safety
catch before closing the door.
The lighting in the engine compartment turns on
automatically when the door is opened. If the
compartment door is open, an indicator light will
illuminate on the central dashboard.

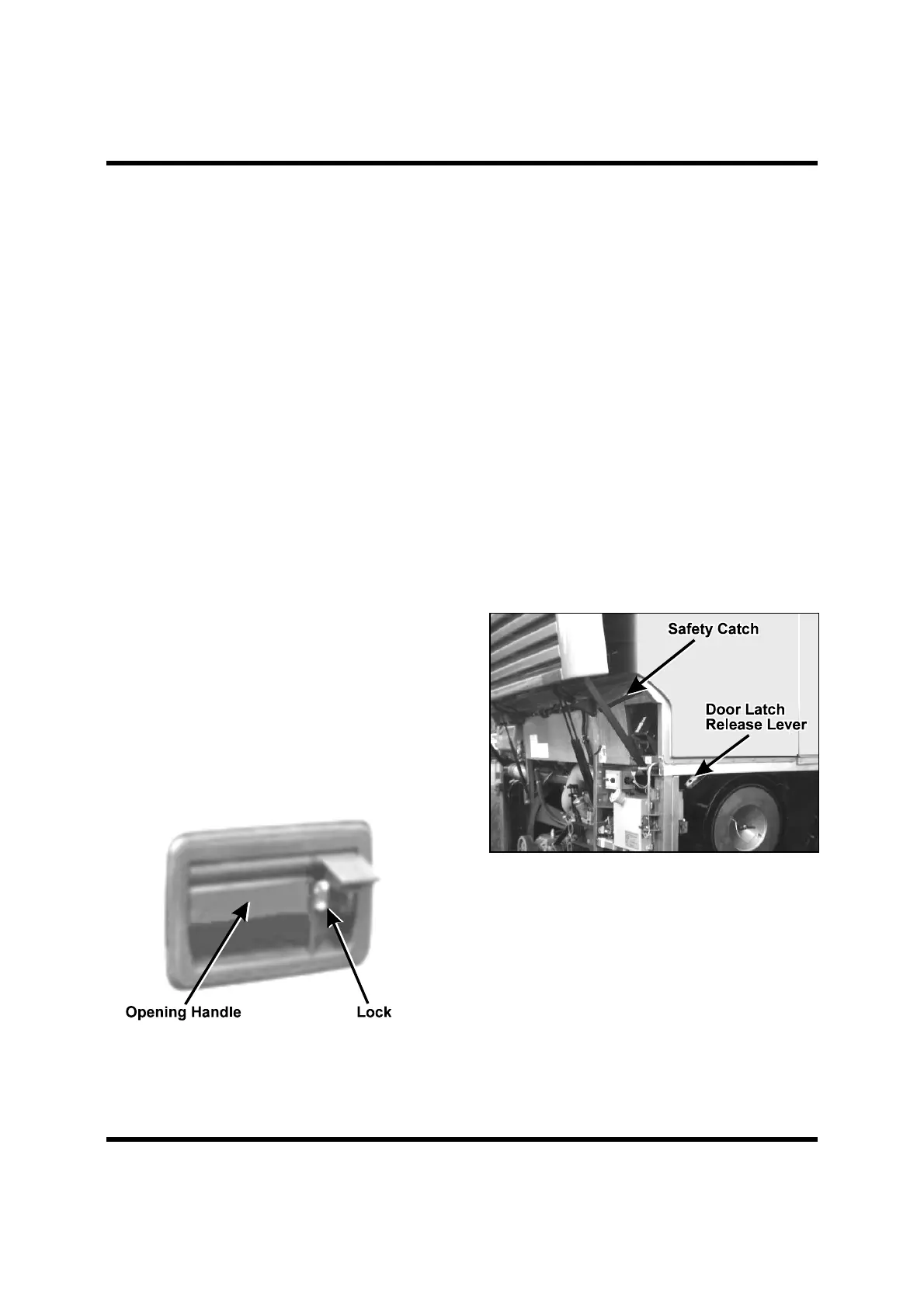

DOOR HANDLE OEH3B110
WARNING: DO NOT RUN THE ENGINE
WHEN THE COMPARTMENT DOOR IS OPEN.
CLOSE ENGINE COMPARTMENT DOOR
BEFORE STARTING ENGINE.
Engine Compartment Rear Door
Provides access to the following:
- Engine starting selector
- Cold weather starting fluid cup
- Engine coolant surge tank
- Air cleaner restriction indicator
- Engine oil dipstick
- Engine oil reserve tank
- Automatic transmission oil dipstick
- Cleaning cabinet connector
- Fresh water reservoir connector
DOOR LATCH RELEASE LEVER OEH3B112
The door latch release lever is located in the
upper rear section of the engine compartment
R.H. side door. Push up release lever, then place
hand on the upper right of the rear door and pull
rearward. The door will open automatically.
Always engage the safety catch when the
compartment door is open. Release the catch
before closing the door.
