INTERIOR OF COACH
2-9
Lavatory
The lavatory is located in the rear R.H. corner of the coach. It is equipped with a chemical flush toilet,
bathroom tissue dispenser, wash-basin, towel dispenser, waste container, mirror, ashtray, and a cleaning
cabinet. A liquid soap dispenser and moist towel dispenser are optional.

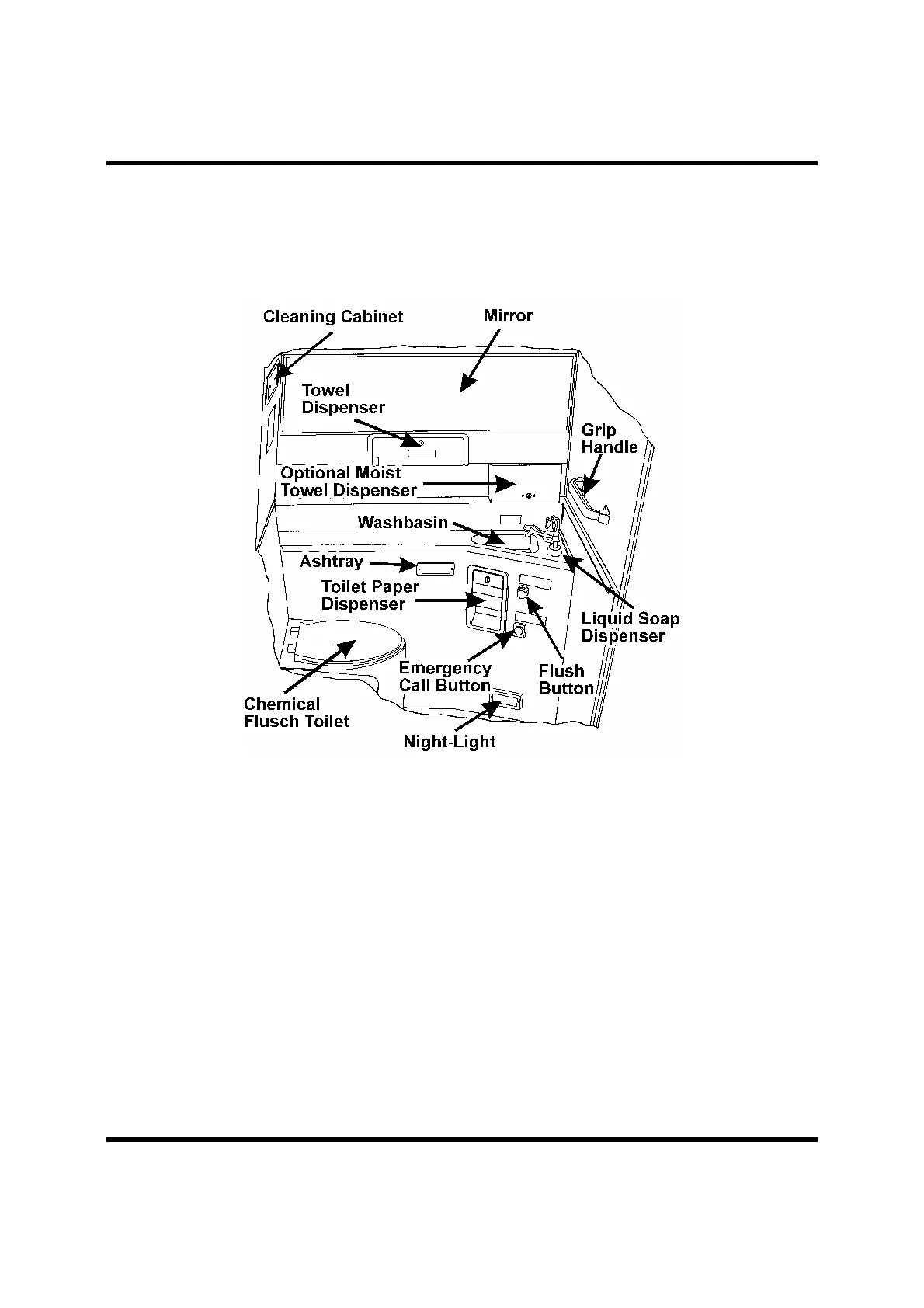

LAVATORY EQUIPMENT OEH3B240
Locking the lavatory door from the inside will
illuminate a fluorescent light in the lavatory and
two outside signs to indicate occupation. One
OCCUPIED sign is located on the outer wall of
the lavatory and the other OCCUPIED sign is
located over the windshield. An indicator light on
the L.H. dashboard will illuminate to inform the
driver when the lavatory is occupied. A night-light
is permanently lit in the lavatory when the ignition
switch is in the ON position.
If emergency assistance is required, the person in
the lavatory can sound a buzzer in the driver's
area. The service push-button, with operating
instructions, are located on the inner wall of the
lavatory.
The lavatory has its own ventilation system that
operates when the ignition switch is in the ON
position.
The fresh water tank is equipped with an
immersion heater that operates from the in-station
connector and is powered with a 110-120 volt
supply. Refer to "Exterior of coach" section. For
sump tank draining and filling procedures, refer to
"Care and Maintenance" section.
