l AE49, AE50, AE51, AE52 I/O-EB Multiplex
modules;
l Vehicle Electrical Center Rear (VECR);
l Master relay R1;
l 12V ignition relay R3;
l Starter relay;
l Relays and fuses;
l Battery equalizer;
l 12VD & 24 VD current sensors.

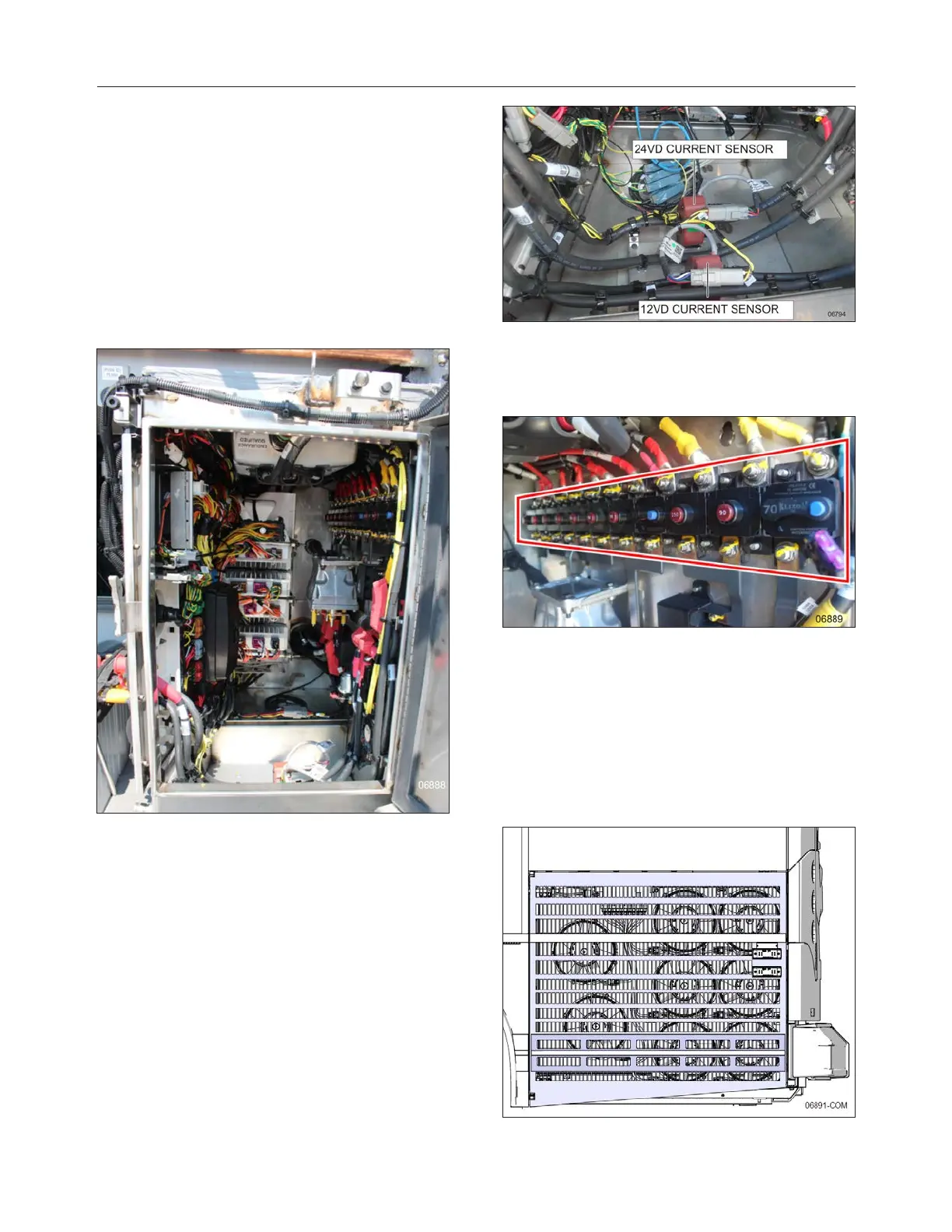

FIGURE 10: MAIN POWER COMPARTMENT (TYPICAL)
Main power compartment (typical)
FIGURE 11: 12VD / 24VD CURRENT SENSORS IN MPC
(TYPICAL)
12vd / 24vd CURRENT SENSORS IN MPC
(typical)
FIGURE 12: MAIN CIRCUIT BREAKERS IN MPC
(TYPICAL)
MAIN CIRCUIT BREAKERS IN MPC (typical)
ENGINE RADIATOR DOOR
The engine radiator door gives access to the
radiator electrical fans and power distribution
box.
FIGURE 13: RADIATOR DOOR

PREVOST X3-45 Commuter 2020 Specifications

General

Transmission	Allison B500
Category	Buses
Manufacturer	Prevost
Model	X3-45 Commuter
Year	2020
GVWR	54, 000 lbs
Air Conditioning	Yes
Wheelchair Accessible	Yes
Engine	Detroit Diesel DD13
Length	45 ft
Width	102 in
Horsepower	450 hp
