LIFT CHAIR SERIES
HEAT CONNECTION
TO JUNCTION BOX
MASSAGE UNIT
IV. ASSEMBLY/DISASSEMBLY

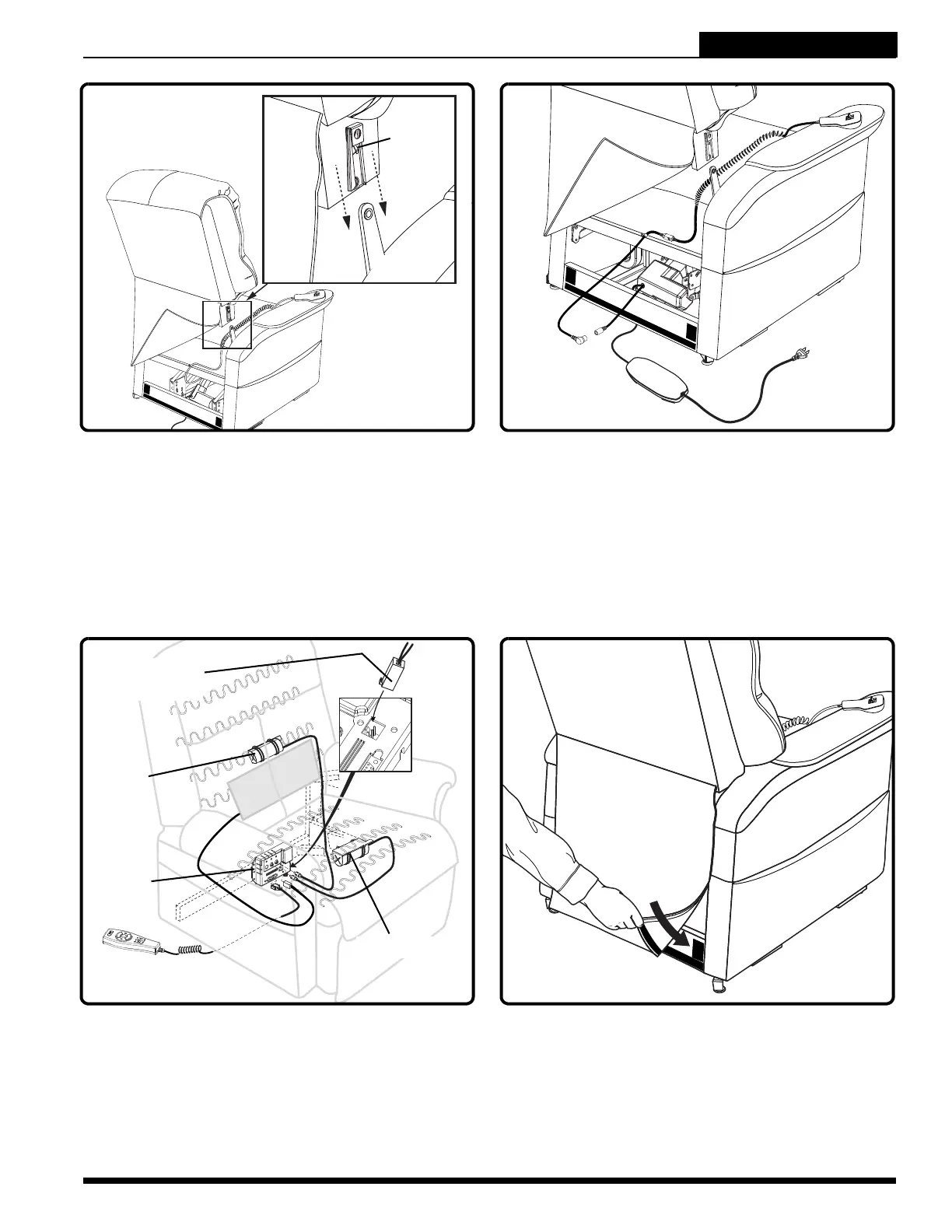

4.1.3 Push firmly on the top of the chair-back to
lock into position. Listen for a click on each
side to ensure the chair-back is locked in
properly.
NOTE: Pull up on the chair-back to ensure that
it is locked in place. If the back can be pulled
off, then repeat steps 4.1.1 and 4.1.3. You
must hear a click from each side of the chair.
“CLICK”
4.1.5 For units equipped with heat and/or massage
options, connect the heat and/or massage
harnesses to the junction box mounted to the
back of the lift chair. There will be one heat
connection and two massage connections.
4.1.6 Attach the chair-back to the hook and loop
flaps on the bottom of the chair base.
4.1.4 Connect the hand control harness to the
motor. For units equipped with heat and/or
massage, connect the hand control harness
directly to the junction box mounted to the
back of the lift chair.
MASSAGE
UNIT
JUNCTION
BOX
