LIFT CHAIR SERIES
IV. ASSEMBLY/DISASSEMBLY
LIFT CHAIR PLACEMENT
Your lift chair should be placed near a standard electrical outlet on dry, level ground where there is ample
room to allow for proper operation. Pride recommends that you have the assistance of an attendant when
positioning the lift chair to avoid the possibility of injury when lifting.
Follow these steps to position the lift chair in a safe manner:
1. Place the back of the lift chair 76 cm (30 in.) from the nearest obstruction while the chair is in the seated
position. This measurement may vary depending on model.
2. Adjust the leg levelers to stabilise the lift chair (Fig. 3.2).
3. Install the batteries into the external transformer if applicable. Refer to “Battery Installation” for more
information.
4. Position the external transformer on the floor in an open, well-ventilated area where it will not be an
obstruction, or if equipped, utilise the optional wall mount.
5. Position the low voltage connection cable where it will not be pinched between the frame and the lift
mechanism.
6. Connect the low voltage connection cable to the external transformer if it is not already connected.
7. Plug the power lead directly into the electrical outlet. Do not use an extension lead!
NOTE: If you discover a problem at any point during the setup and positioning of your lift chair,
stop and contact your authorised Pride Provider immediately. To avoid personal injury and/or
product damage, do not plug the unit into the electrical outlet until the problem is corrected and
do not attempt to fix electrical problems by yourself
.
BATTERY INSTALLATION
Your lift chair may be equipped with a battery backup system that will activate during a power failure. The backup
system is powered by two 9V batteries (not included) that need to be installed into the external transformer.
EXTERNAL TRANSFORMER
(TOP AND BOTTOM VIEW)
BATTERY DOOR
POWER LEAD

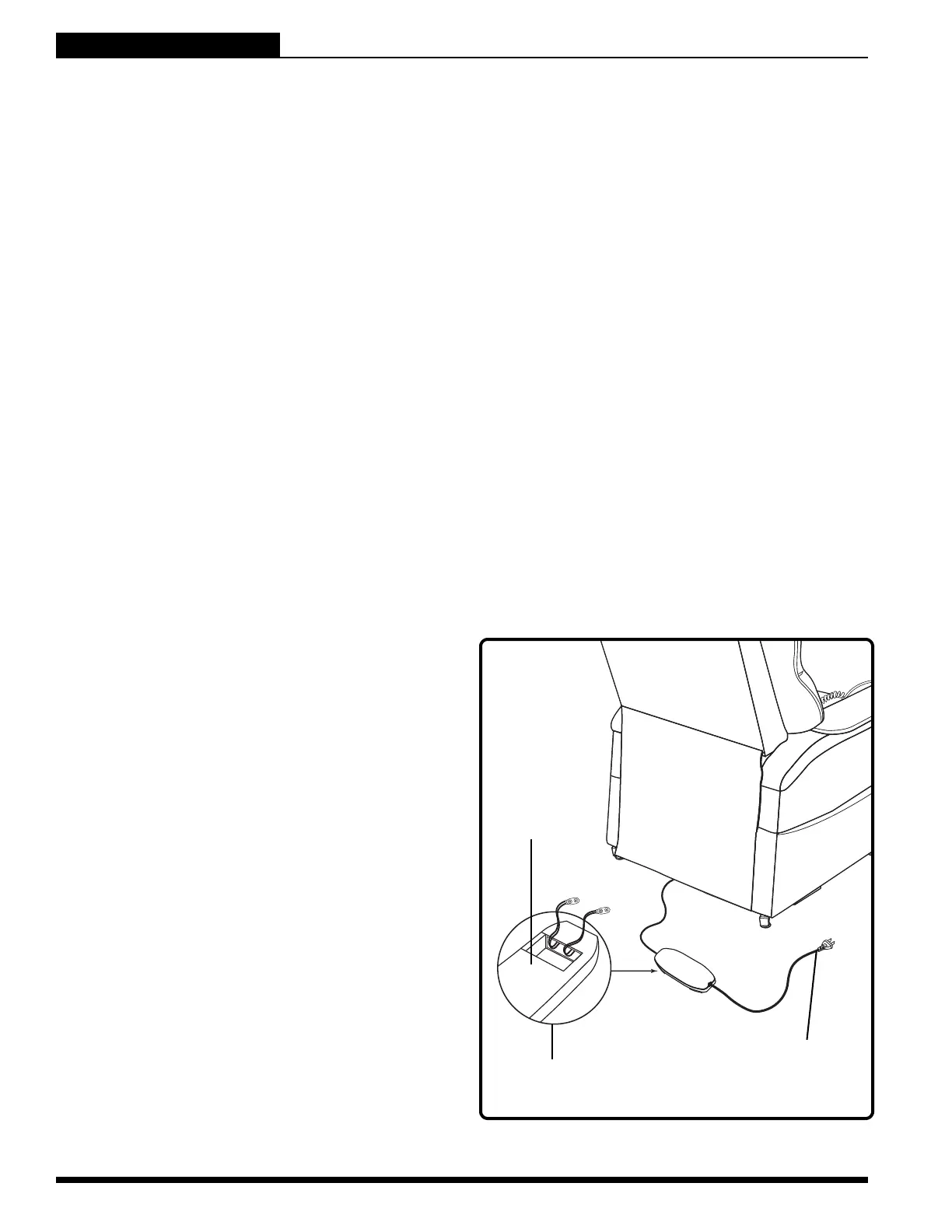

Figure 4.2 Lift Chair Battery Backup Location
Follow these steps to install the batteries:
1. Unplug the external transformer power lead from
the electrical outlet.
2. Open the marked battery door on the external
transformer.
3. Install two 9V batteries into the external trans-
former (Fig. 4.2).
4. Replace the battery door.
NOTE: Always make sure the external trans-
former is equipped with two fresh 9V batteries,
since the battery backup system does not
recharge itself. Fresh batteries are defined as
9V alkaline batteries that are replaced every
time the battery backup system is activated
during a power failure, or once a year if the bat-
tery backup system has not been activated.
NOTE: If you unplug your lift chair for an
extended period of time (more than one hour),
remove the batteries from the external trans-
former. The lift chair will draw power from the
batteries even when it is not in use
.
