VIII. COMFORT ADJUSTMENTS

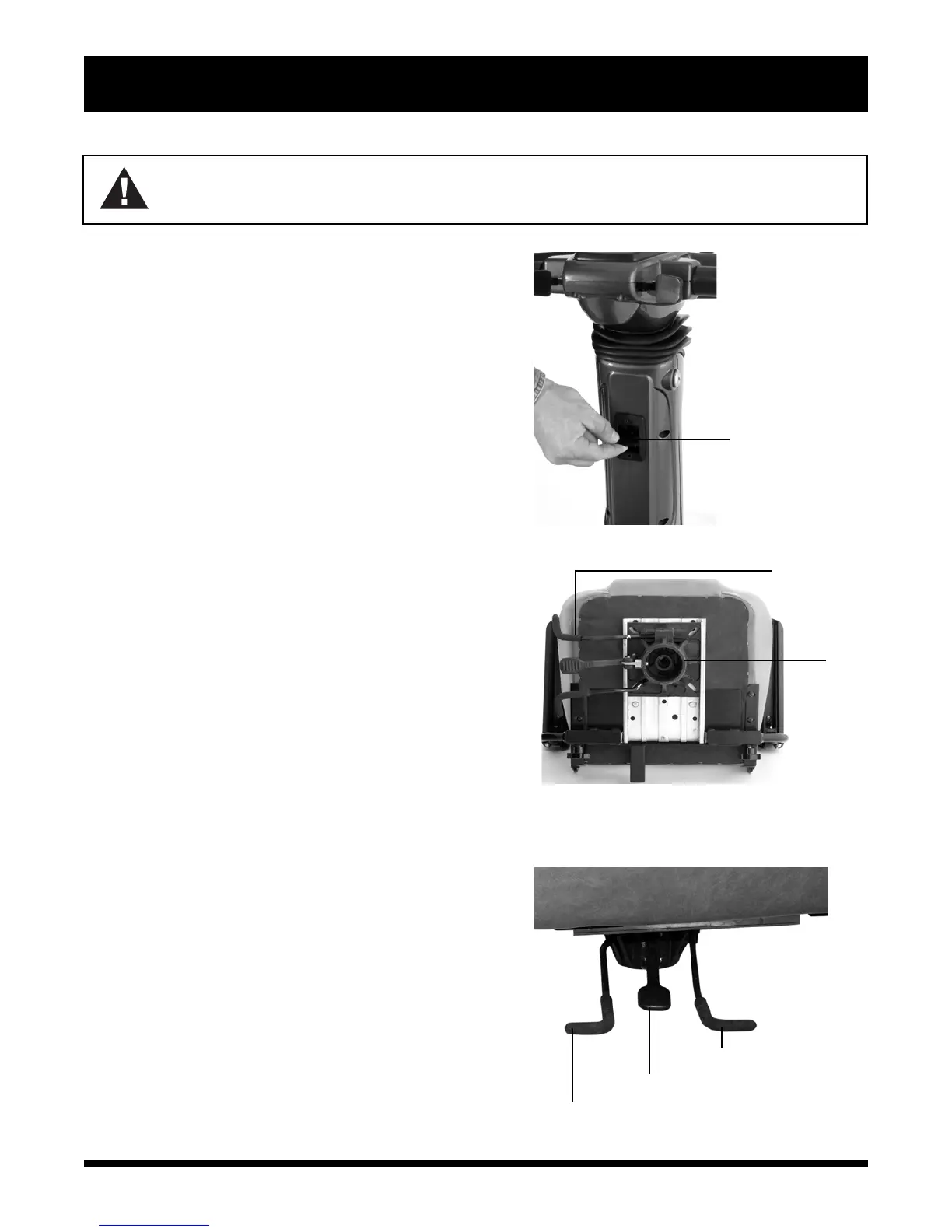

Figure 15. Seat Adjustments
TILLER ANGLE ADJUSTMENT
Your Celebrity is equipped with an ergonomically enhanced
pivoting tiller that keeps the console controls at your fingertips
regardless of the tiller angle.
1. Pull up on the tiller adjustment lever. See figure 13.
2. Move the tiller to a comfortable position.
3. Release the tiller adjustment lever. The tiller remains in the
position you selected.
NOTE: In order to lower the tiller to the Scooter deck, you
must first remove the seat, rear shroud, and both batteries.
See IX. Disassembly and Assembly.
FRONT-TO-BACK SEAT ADJUSTMENT
The Celebrity is equipped with a sliding seat that is operated like
an automobile seat. You can reposition the Celebritys seat for-
ward or rearward.
1. Pull up on the slider lever. See figure 14.
2. Move the seat forward or rearward.
3. Release the slider lever when the seat reaches the desired
position.
SEAT HEIGHT ADJUSTMENT
The seat height can be adjusted pneumatically to any height be-
tween 17 inches and 20.5 inches from the Scooter deck.
1. To raise the seat, pull upward on the seat height adjustment
lever while taking your weight off of the seat. See figure 15.
2. Release the seat height adjustment lever when the seat
reaches the desired height.
3. To lower the seat, with your weight still on the seat, pull
upward on the seat height adjustment lever.
4. Release the seat height adjustment lever when the seat
reaches the desired height.
SEAT ROTATION
The seat rotation lever locks the seat in one of four positions.
1. Pull up on the seat rotation lever to unlock the seat. See
figure 15.
2. Rotate the seat to the desired position.
3. Release the seat rotation lever to lock the seat securely in
place.
Figure 14. Front-To-Back Seat Adjustment
Figure 13. Tiller Adjustment
TILLER ADJUST-
MENT LEVER
SLIDER LEVER
SEAT
SLIDER
SEAT ROTATION LEVER
SEAT HEIGHT ADJUSTMENT LEVER
SLIDER LEVER
WARNING! Remove the key from the key switch before adjusting the tiller or the seat.
Never attempt to adjust the tiller or the seat while the scooter is in motion.
