No tools are required to disassemble or assemble your Celebrity. Always disassemble or assemble your Celebrity
on a level, dry surface with sufficient room for you to work and move around your Scooter. Keep in mind that the
disassembled sections of the Celebrity take up more floor space than the assembled Celebrity.
DISASSEMBLY
You can disassemble the Celebrity into seven pieces: the seat, the front section, the rear section, the rear shroud,
the basket, and the batteries. Place the Scooter in an area where you have sufficient clearance to move the parts
around. You need about four or five feet in all directions. You may need assistance to lift some of the Scooter
components. See IV. Specifications for individual component weights.
1. Place the manual freewheel lever in the drive (down) position.
2. Coil the charger power cord and store it in the rear storage compartment. See figure 8.
3. Pull up on the seat rotation lever to unlock the seat. Rotate the seat one eighth of a turn, and lift the seat up and
off the Celebrity. See figure 18.
4. Gently lift the rear shroud off of the Celebrity. See figure 19.
5. Disconnect the battery tie-down straps (if so equipped).
6. Unplug both black and white 2-pin battery harnesses. See figure 20.
7. Unplug the silver front-to-rear harness that connects the control console assembly to the rear electronics
module. See figure 21.
8. Lift both batteries off the Celebrity. See figure 22.
9. Push the locking cam levers forward and remove the ball detent pins. See figures 23 and 24.
10. Gently slide the two sections of the Scooter apart. See figure 25.
11. Grab the handle grip on the tiller, pull upward on the tiller adjustment lever, and gently lower the tiller down to
the center of the Celebrity chassis until it is fully lowered.
Note: There is no need to disconnect the motor harness when disassembling the Celebrity. See figure 26.
I X . DISASSEMBLY AND ASSEMBLY

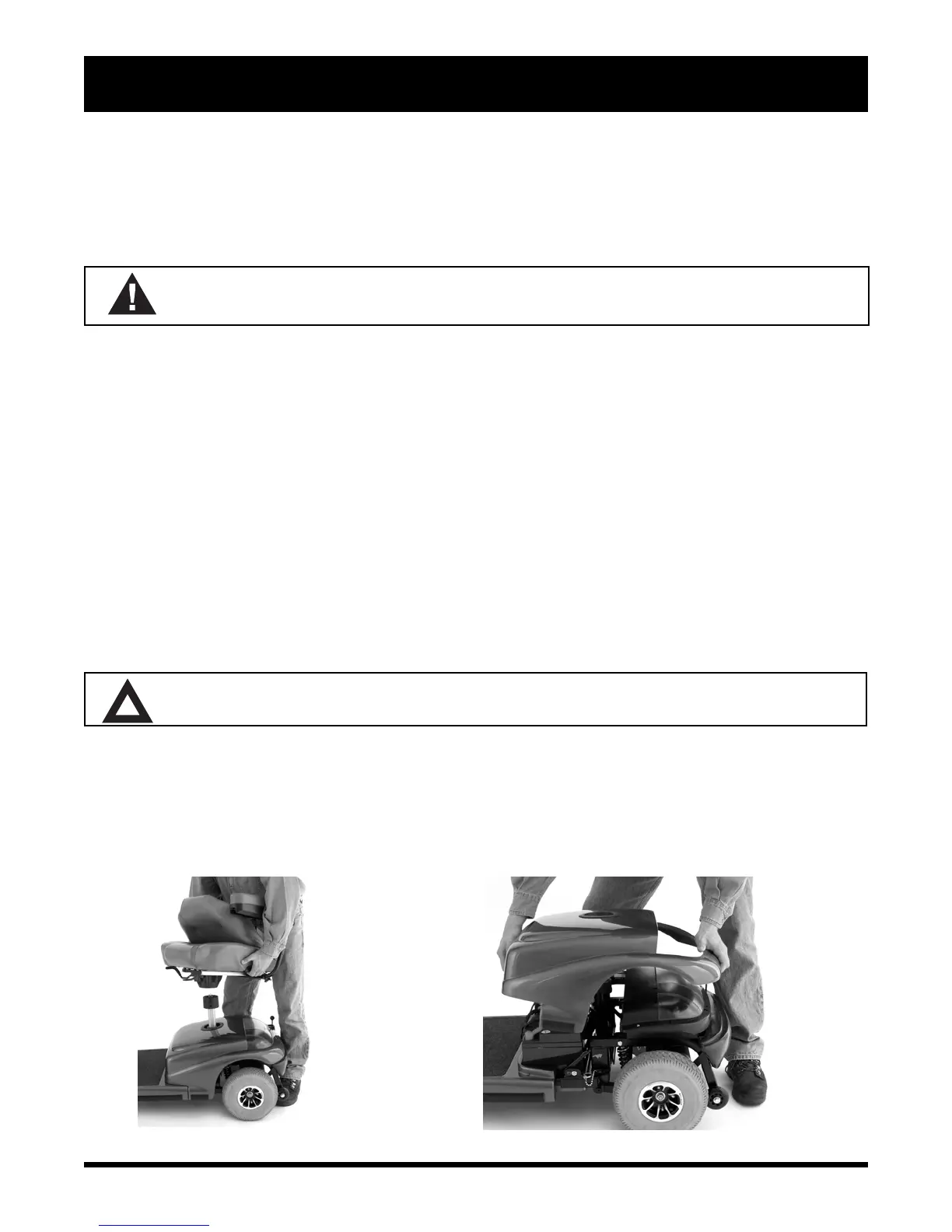

Figure 18. Seat Removal
Figure 19. Rear Shroud Removal
CAUTION! Failure to unplug both battery harnesses and the front-to-rear harness prior to
disassembly could result in permanent damage to the Celebrity.
WARNING! Lifting weight beyond your physical capability may result in personal injury.
Ask for assistance when necessary before assembling or disassembling your scooter.
