Go-Go Elite Traveller Plus Technical Troubleshooting Guide www.pridemobility.com 9
21. Remove the cover from the S-drive controller (7). See dia-
gram 3.
22. Unplug connector 5b from connector 7a. See diagram 2.
23. Measure voltage across pin 7 and pin 13 on connector 7a.
See figure 10.
— If your multimeter indicates 0VDC, then go to the
next step.
— If your multimeter indicates greater than 18VDC, then
replace the front-to-rear interface harness (5) and retest
the system
24. Unplug connectors 6b and 6c from connector 7e. See dia-
gram 2.
25. Measure voltage across connectors 6b and 6c. See fig-
ure 11.
— If your multimeter indicates 0VDC, then replace the power
interface harness (6) and retest the system.
— If your multimeter indicates greater than 18VDC, then
replace the S-drive controller (7) and retest the system.
.

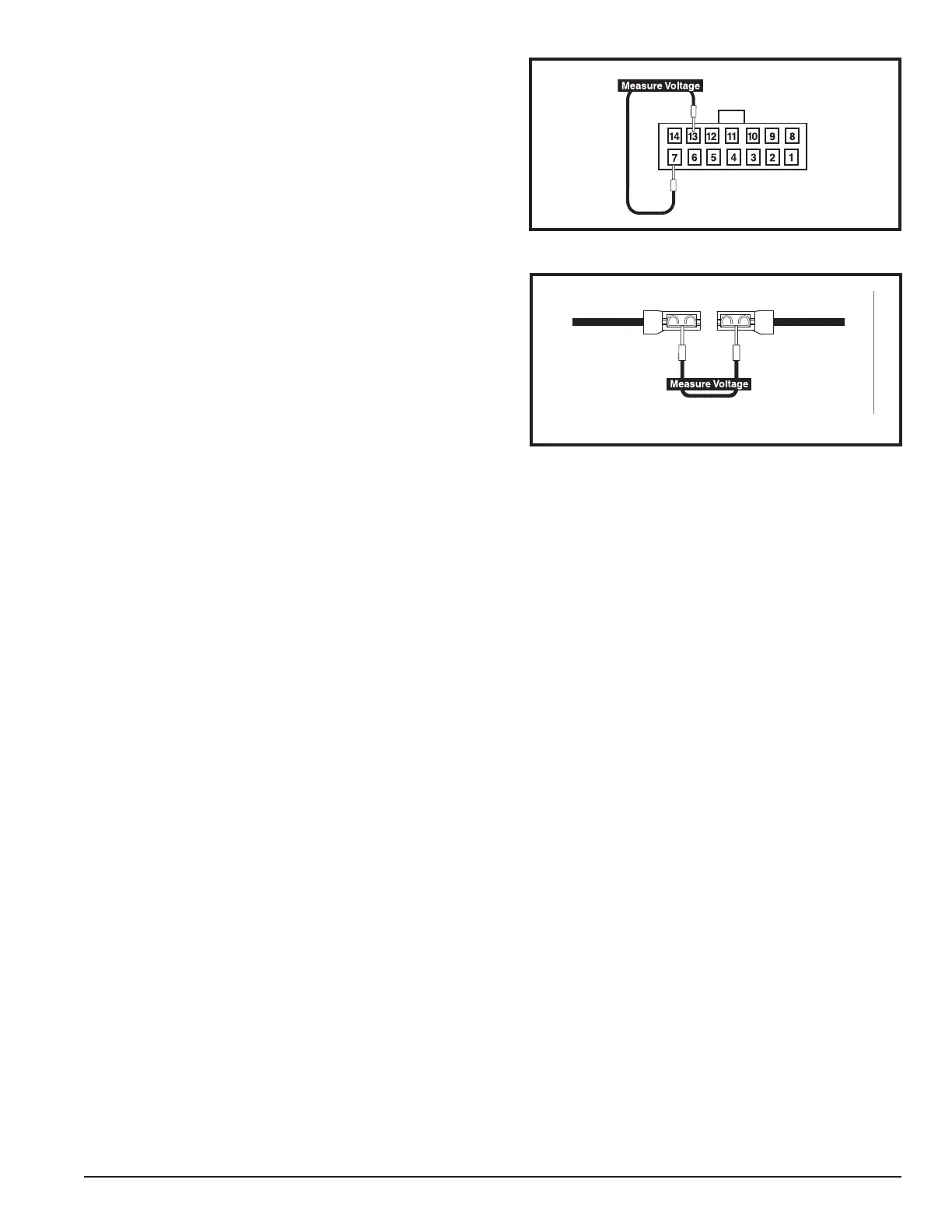

Figure 10. Connector 7a
6b
6c
Figure 11. Connectors 6b and 6c
