DISASSEMBLY
No tools are required to disassemble or assemble your scooter. Always disassemble or assemble your scooter on
a level, dry surface with sufficient room for you to work. Keep in mind that the disassembled sections of a scooter
take up more floor space than the assembled scooter.
I X . DISASSEMBLY AND ASSEMBLY

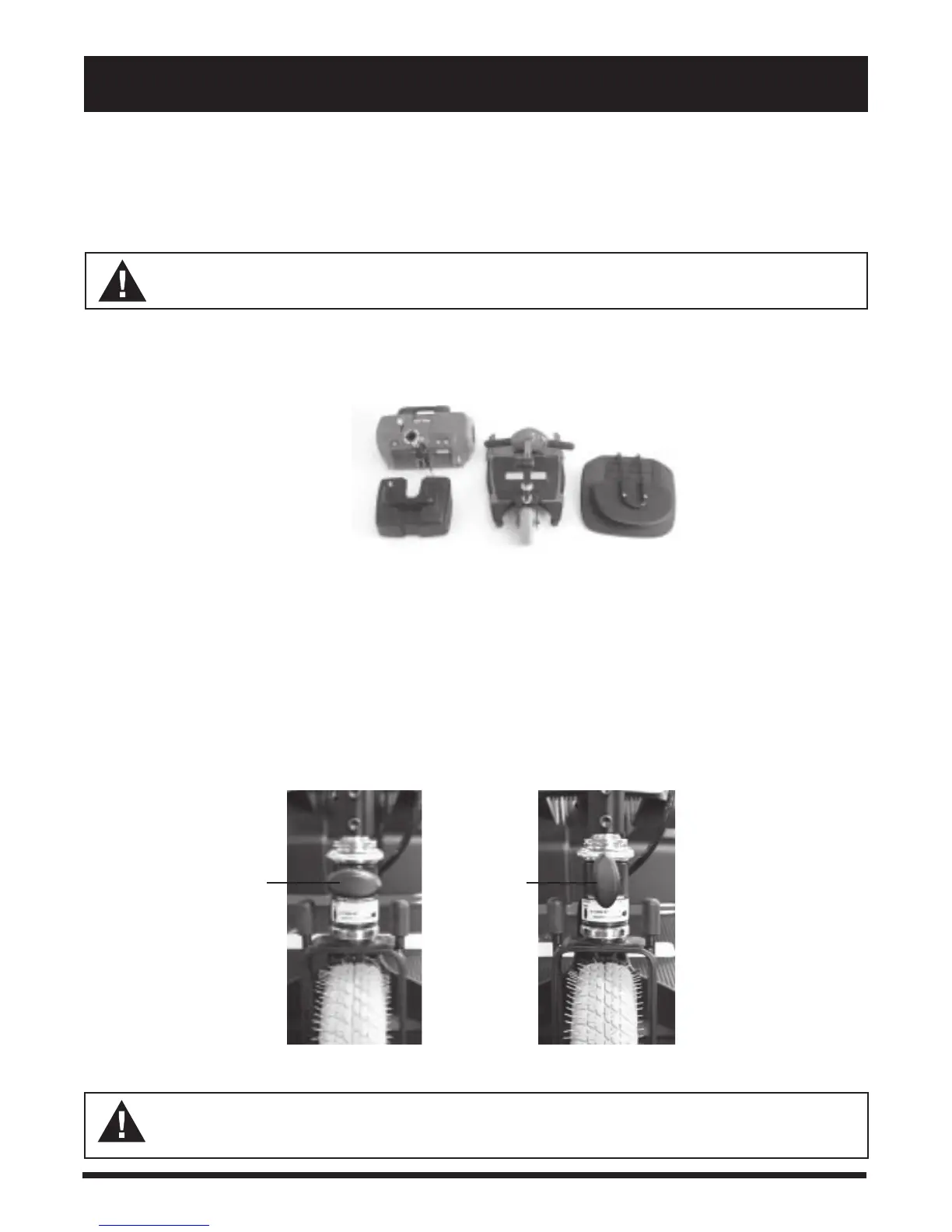

Figure 11. Disassembled Scooter
BATTERY PACK
REAR SECTION
SEAT
FRONT SECTION
You can disassemble the Go-Go into four pieces: the seat, the front section, the rear section, and the battery pack.
See figure 11.
WARNING! Before getting onto your scooter always check that the tiller lock knob is in the
unlocked position. Attempting to ride your scooter with the tiller lock knob in the locked
position can result in personal injury.
LOCKED
POSITION
Figure 12A.
Tiller Lock Knob
(Locked)
Figure 12. Tiller Lock Knob
(Unlocked)
UNLOCKED
POSITION
WARNING! Lifting weight beyond your physical capability may result in personal injury.
Ask for assistance when necessary while disassembling or assembling your scooter.
Before disassembling the scooter, remove the key and place the manual freewheel lever in the backward (drive) position.
1. From the unlocked position (see figure 12), lock the front wheel by pushing the tiller lock knob in and turning
it clockwise 90°. See figure 12A.
2. Remove the seat by lifting it straight up and off of the scooter.
