20 www.pridemobility.com Jazzy 1107

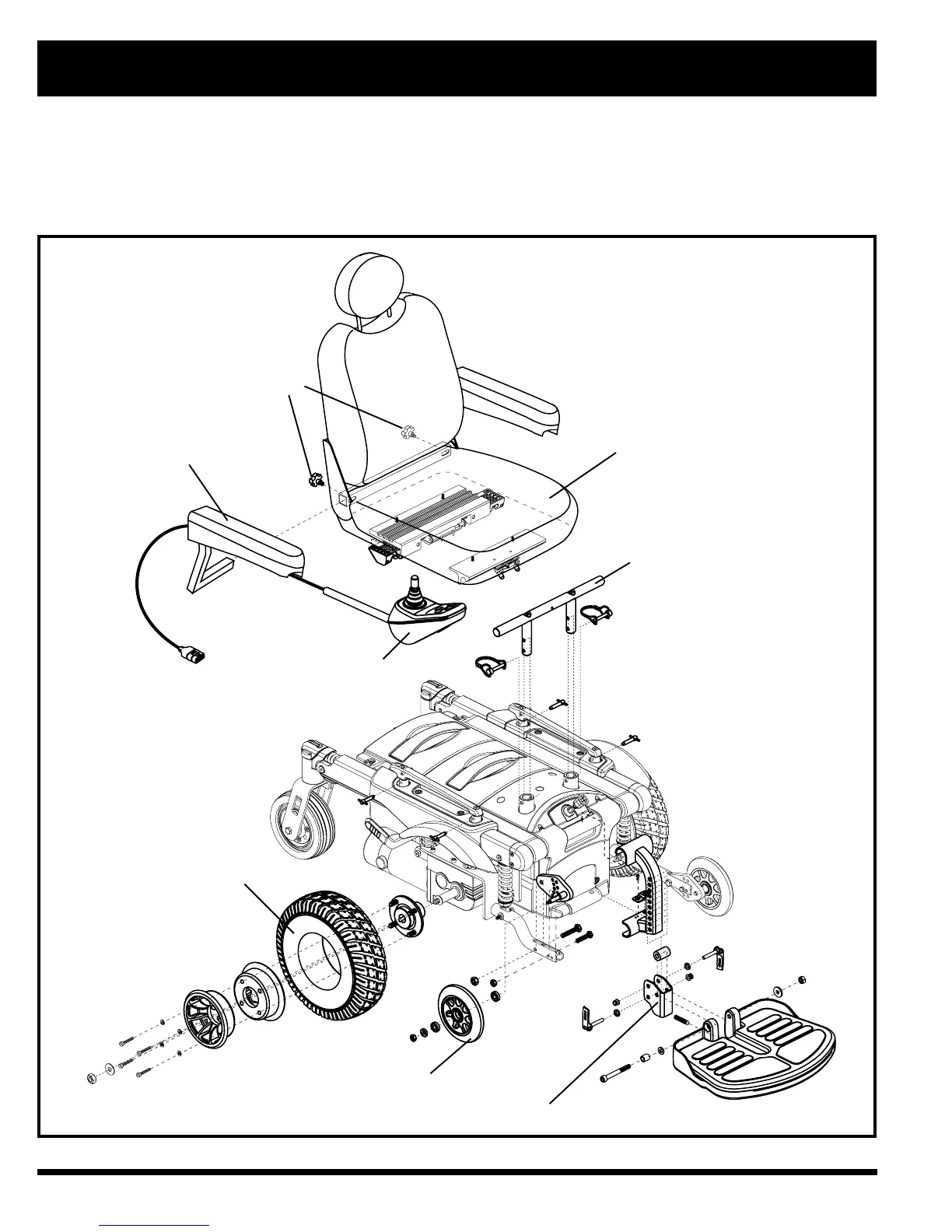

Figure 10. Jazzy 1107 Assembly View
INITIAL ASSEMBLY
Your power chair may require some assembly either before initial use or after transportation. It may also require disassem-
bly to make some comfort adjustments. Figure 10 details those parts of the power chair that are designed to be disas-
sembled and assembled by an end user or by a qualified caregiver before using the product or making comfort adjust-
ments.
IV. ASSEMBLY/DISASSEMBLY
ARMREST ANGLE ADJUSTMENT
TIRE/TUBE REPLACEMENT
ANTI-TIP WHEEL HEIGHT
ADJUSTMENT
FOOT PLATFORM HEIGHT/DEPTH ADJUSTMENT
SEAT HEIGHT/ANGLE
ADJUSTMENT
CONTROLLER POSITION
SEAT INSTALLATION
ARMREST WIDTH ADJUSTMENT
To Next Page
