Jazzy 1107 www.pridemobility.com 27
V. COMFORT ADJUSTMENTS
To clamp the quick release fastener:
1. Make sure the lever is in the open position.
2. Turn the nut clockwise until it is snug.
3. Rotate the lever until it is in the fully closed position.
NOTE: If the lever will not rotate to the fully closed
position, then turn the nut counterclockwise one-quar-
ter or one-half turn.
Foot Platform Angle
You can adjust the angle of the foot platform with a hex key.
See figure 21.
To adjust the foot platform angle:
1. Flip up the foot platform and locate the setscrew.
2. Turn the setscrew counterclockwise to raise the front of the
foot platform.
3. Turn the setscrew clockwise to lower the front of the foot
platform.
Controller Position
You can position the controller for either left-hand or right-
hand use.
WARNING! Do not place the controller
cable so that it can be pinched in the
seat frame or the power base frame.
To change the controller position:
1. Turn off power to the controller.
2. Disconnect the controller from the power base.
3. Cut the wire tie(s) that attaches the controller cable to the
armrest.
4. Flip up the armrest and loosen the setscrew. See figure 22.
5. Slide the controller out of the armrest.
6. Loosen the setscrew in the other armrest.
7. Place the controller in the other armrest.
8. Tighten the setscrew to secure the controller.
9. Use a wire tie to secure the controller cable to the armrest.
10. Plug the controller into the power base. See figure 6.
Swing-away Footrests
Swing-away Footrests (SFRs) enable you to rotate the
footrests to the side before you transfer onto or off of
your power chair.
Figure 22. Underside of Armrest
SETSCREW
Figure 23. Swing-Away Footrests
FOOTREST
ADJUSTMENT
SCREWS
FOOTREST
EXTENSION
SFR RELEASE LEVER

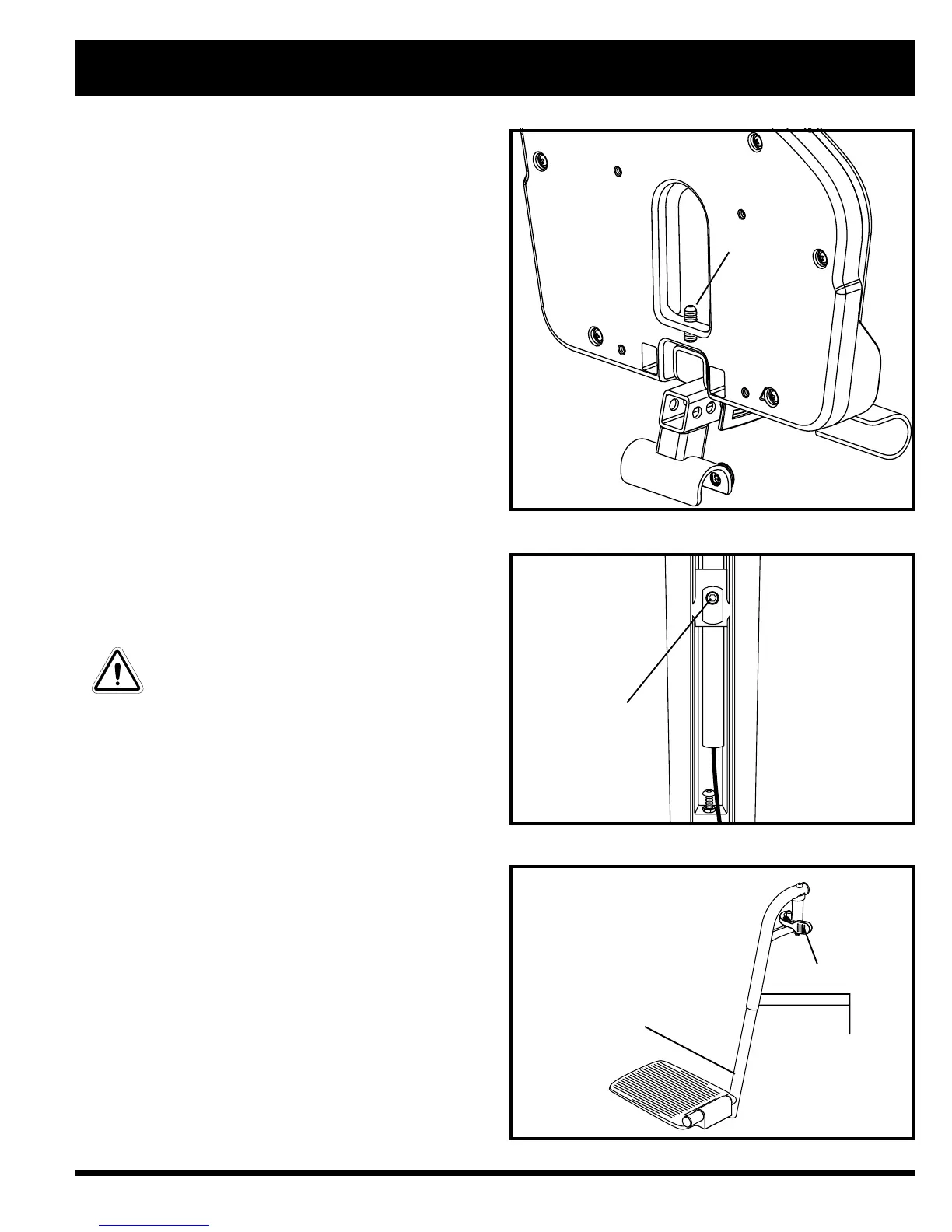

Figure 21. Underside of Foot Platform
SETSCREW
